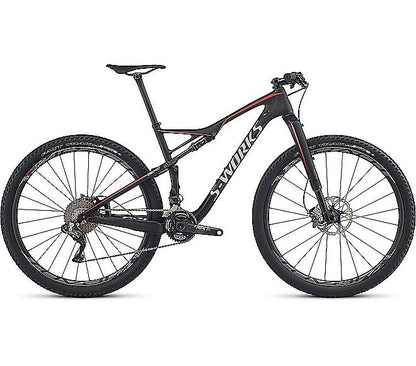

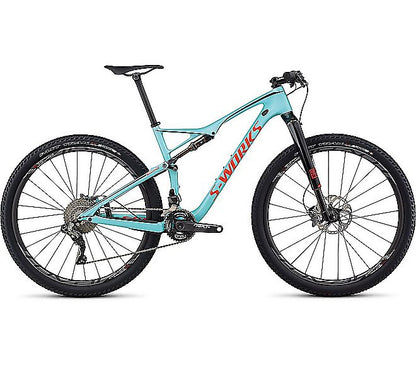

Specialized S-Works Epic Fsr Carbon Di2 29 Features
The S-Works Epic FSR w/ Shimano XTR Di2 was designed to get you over the line in first position, and it holds nothing back in achieving this goal. For maximum efficiency, it's built from our finest carbon fiber (FACT 11m) to provide a lightweight, stiff ride quality on the flats and climbs. Efficiency is taken another step further with our proprietary Brain technology at the fork and rear shock. This intelligent system is able to interpret the difference between rider and trail input, so it stays firm under effort and compliant over bumps. Then there's our XC 29 Geometry that's built for sheer speed over long courses which, after four ABSA Cape Epic wins and multiple World Championships, has truly earned its salt. And to round out the package is a component spec that's nothing short of future-proof, with Shimano XTR Di2 and the incomparable RockShox RS-1 fork. If speed is on the top of your list, it doesn't get better than this.
- S-Works FACT 11m carbon fiber frame provides the ideal blend of stiffness, strength, and light weight, resulting in the pinnacle of efficiency and speed. Meanwhile, our XC 29 Geometry, 100mm of travel, internal cable routing, and a SWAT™ Tool Cradle create exceptional handling and zero-hassle maintenance.
- RockShox RS-1 Brain fork is arguably the most sought-after fork in XC racing. Compared to a traditional fork, its inverted design creates a carbon fiber upper that provides superior stiffness, while behaving with more sensitivity to small bumps and more control over larger hits. And with Brain technology, these characteristics are amplified and even more efficient. It also includes our Spike Valve technology that minimizes yaw in cornering, while providing maximum travel in high velocity impacts.
- Drivetrain duties are handled by the revolutionary Shimano XTR Di2 11-speed groupset, with 36/26T gearing up front and 11-40t at the rear. The first ever electronic mountain groupset, it provides unparalleled shift precision, reliability, and accuracy, making it the secret weapon in any racer's arsenal.
Component Specifications
| Frame | S-works Fact 11m, Full Carbon Frame W/unique S-works Lay-up, Xc Geometry, Pf30 Bb, Carbon Headset Cups, 12x142mm Rear Spacing, Internal Cable Routing, Front Derailleur Mount, 100mm Of Travel, Swat™ Tool Cradle |
| Seat Binder | Specialized Alloy 31.8mm W/ Ti Bolt |
| Fork | Rockshox Rs-1 Brain, Solo Air Spring, Spike Valve, Top-mount Brain Fade Adjust, Rebound Adjust, Inverted Design, Tapered Carbon Crown/steerer, 15mm Maxle Stealth Thru-axle, 51mm Offset, 100mm Of Travel |
| Rear Shock | Fox/sbc Epic Remote Mini Brain W/auto Sag And Spike Valve. Brain Fade Adjust I-valve, 205 X 53mm, With Kashima Coating |
| Shift Levers | Shimano Xtr M9050 Di2, Electric 11-speed |
| Front Derailleur | Shimano Xtr M9070 Di2, Down-swing, 2x11 |
| Rear Derailleur | Shimnao Xtr M9050 Di2, Shadow Plus Design, 11-speed |
| Cassette | Shimano Xtr M9001, 11-speed, 11-40t |
| Chain | Shimano Hg901, 11-speed |
| Crankset | Raceface Next Sl, Hollow Carbon, 11-speed, 30mm Spindle, 49mm Chainline, 36/26t |
| Rims | Roval Control Sl 29, Hookless Carbon, 22mm Inner Width, 24/28h, Tubeless Ready |
| Front Hub | Roval Control Sl, Torque Tube |
| Spokes | Dt Swiss Revolution |
| Front Tire | Fast Trak, Control Casing, 29x2.2", 60tpi, Aramid Folding Bead, 2bliss Ready |
| Rear Tire | Fast Trak, Control Casing, 29x2.2", 60tpi, Aramid Folding Bead, 2bliss Ready |
| Front Brake | Shimano Xtr M9000, Hydraulic Disc, Post Mount, Metallic Pads, 180/160mm Rotors |
| Rear Brake | Shimano Xtr M9000, Hydraulic Disc, Post Mount, Metallic Pads, 160mm Rotors |
| Stem | Syntace F109, 6-degree Rise, 31.8mm Clamp |
| Handlebars | Specialized Mini-rise, Fact Carbon, 6-degree Upsweep, 8-degree Backsweep, 10mm Rise, 720mm, 31.8mm |
| Grips | Specialized Sip Grip, Half-waffle, S/m: Regular Thickness, L/xl: Xl Thickness |
| Saddle | Body Geometry S-works Phenom, Carbon Rails, 143mm |
| Seatpost | S-works Fact Carbon, 0mm Setback, Carbon Rail Clamps |
Size Guide: Specialized S-Works Epic Fsr Carbon Di2 29
