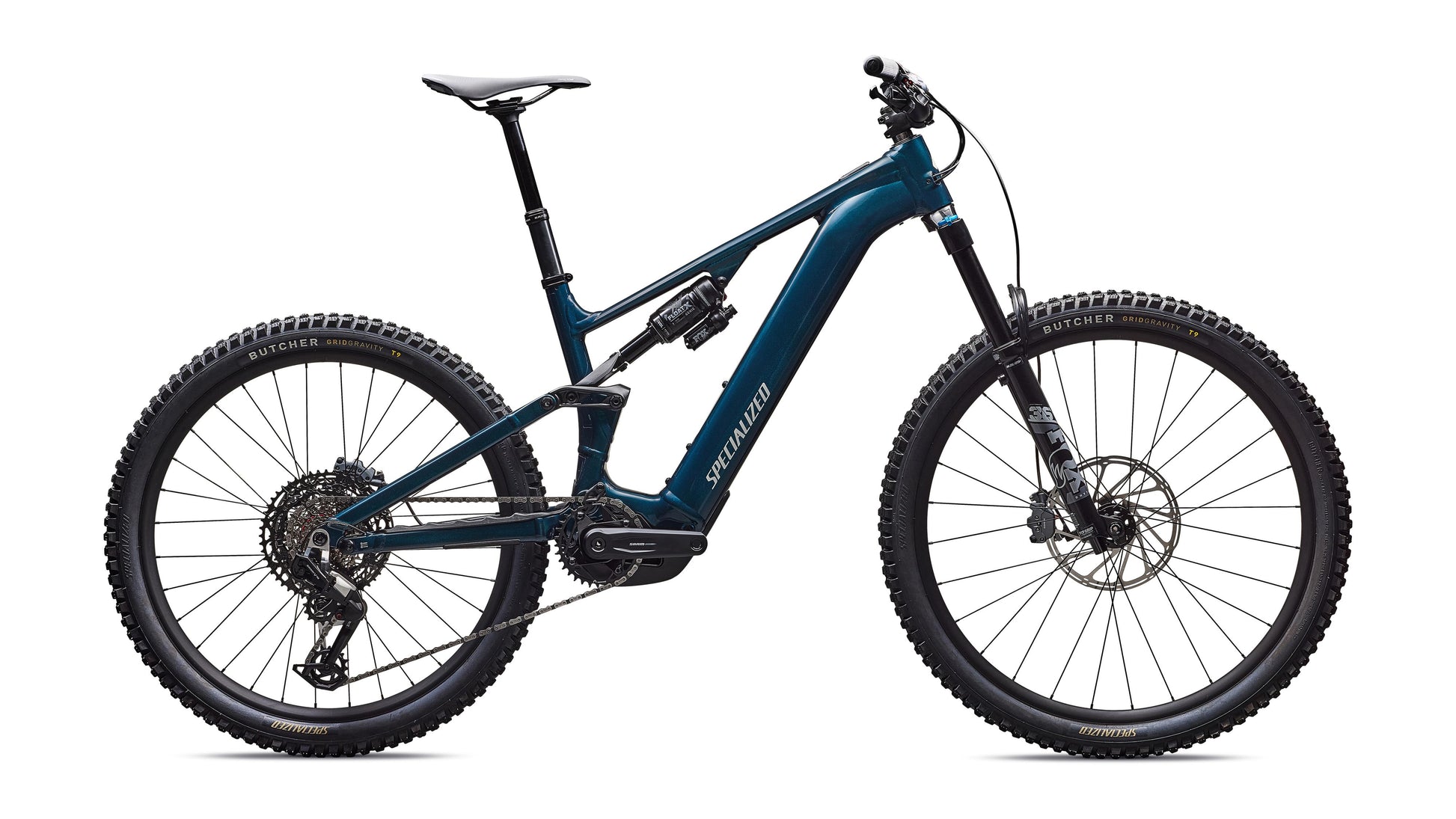

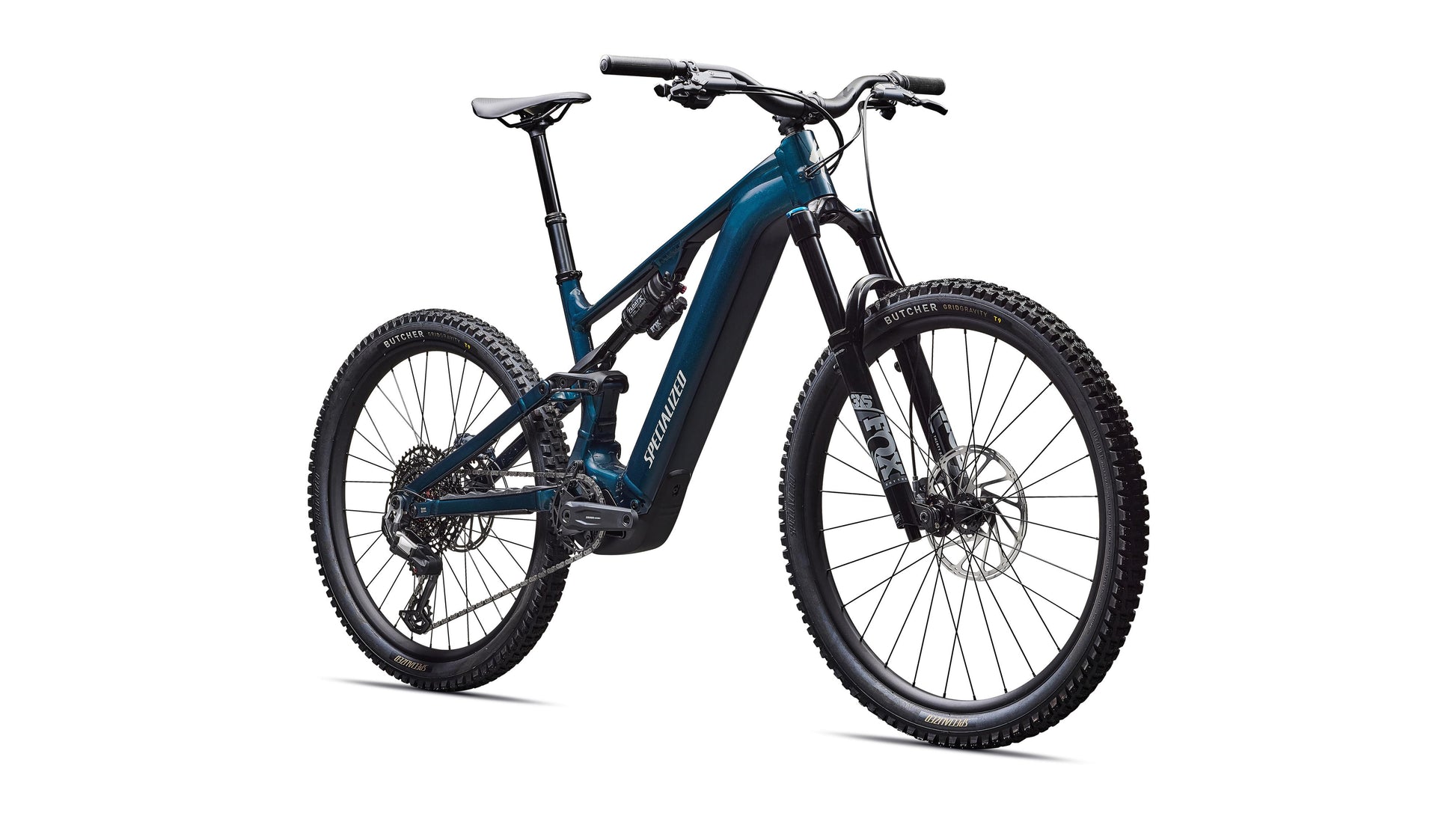

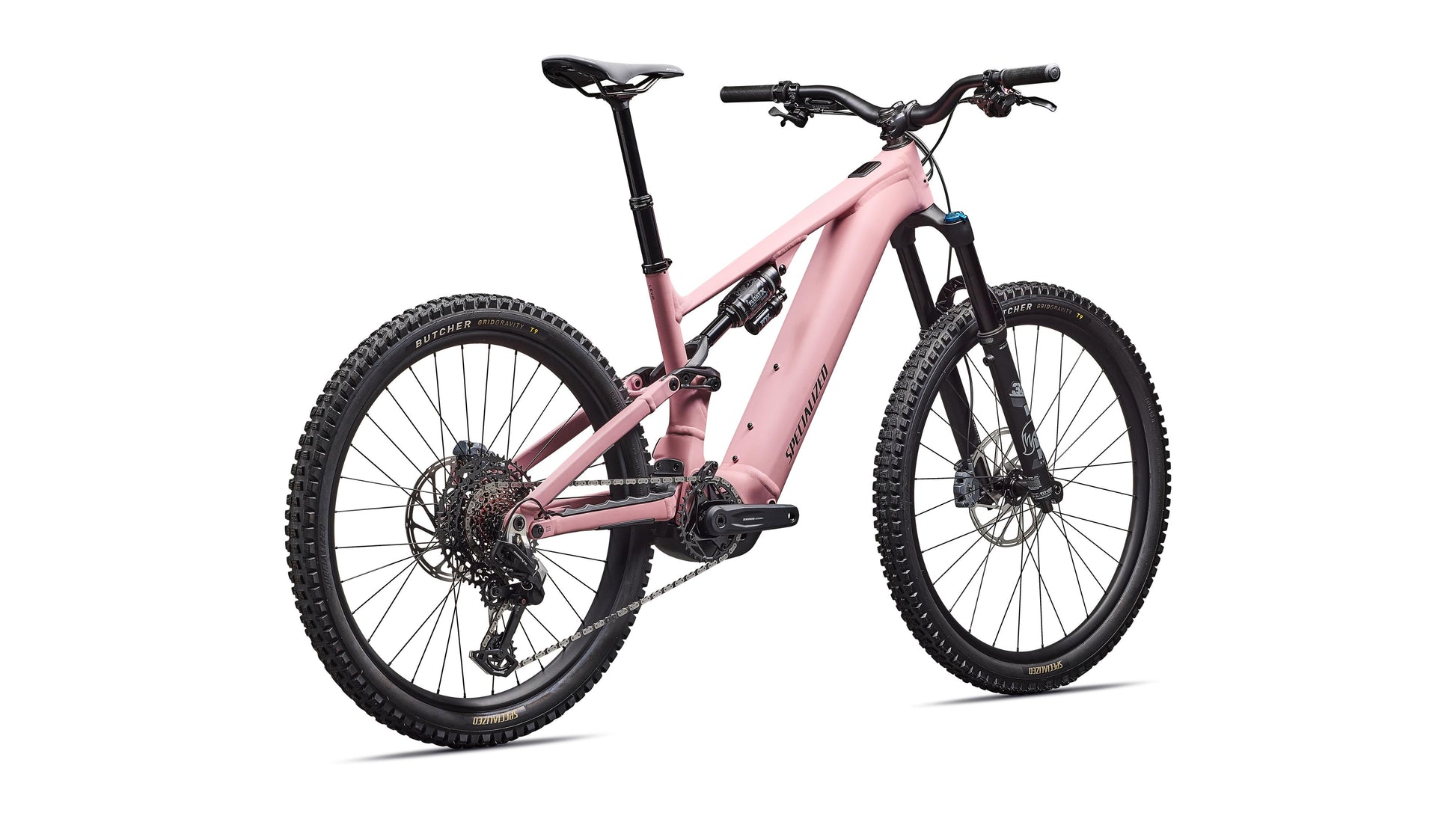

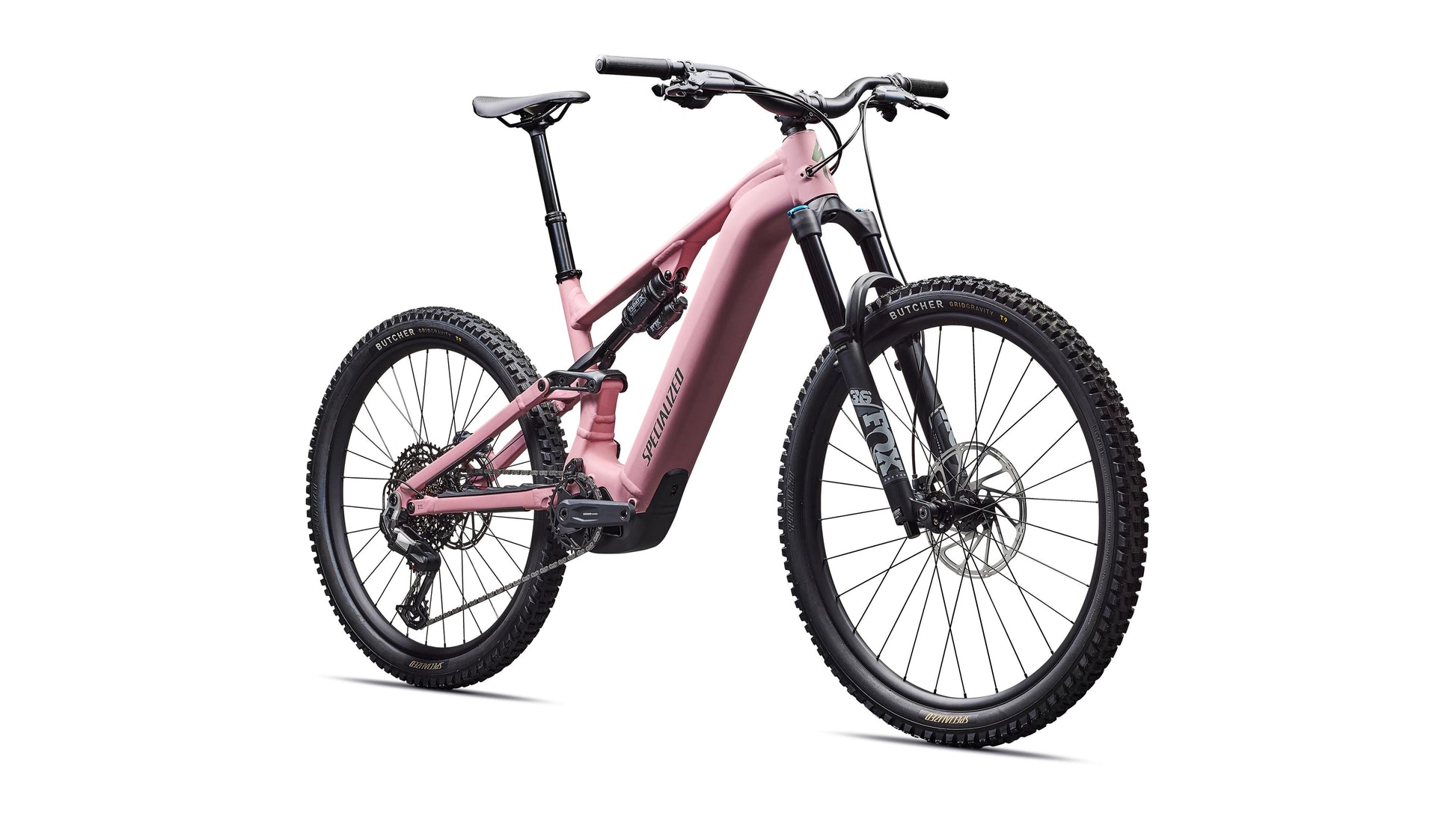

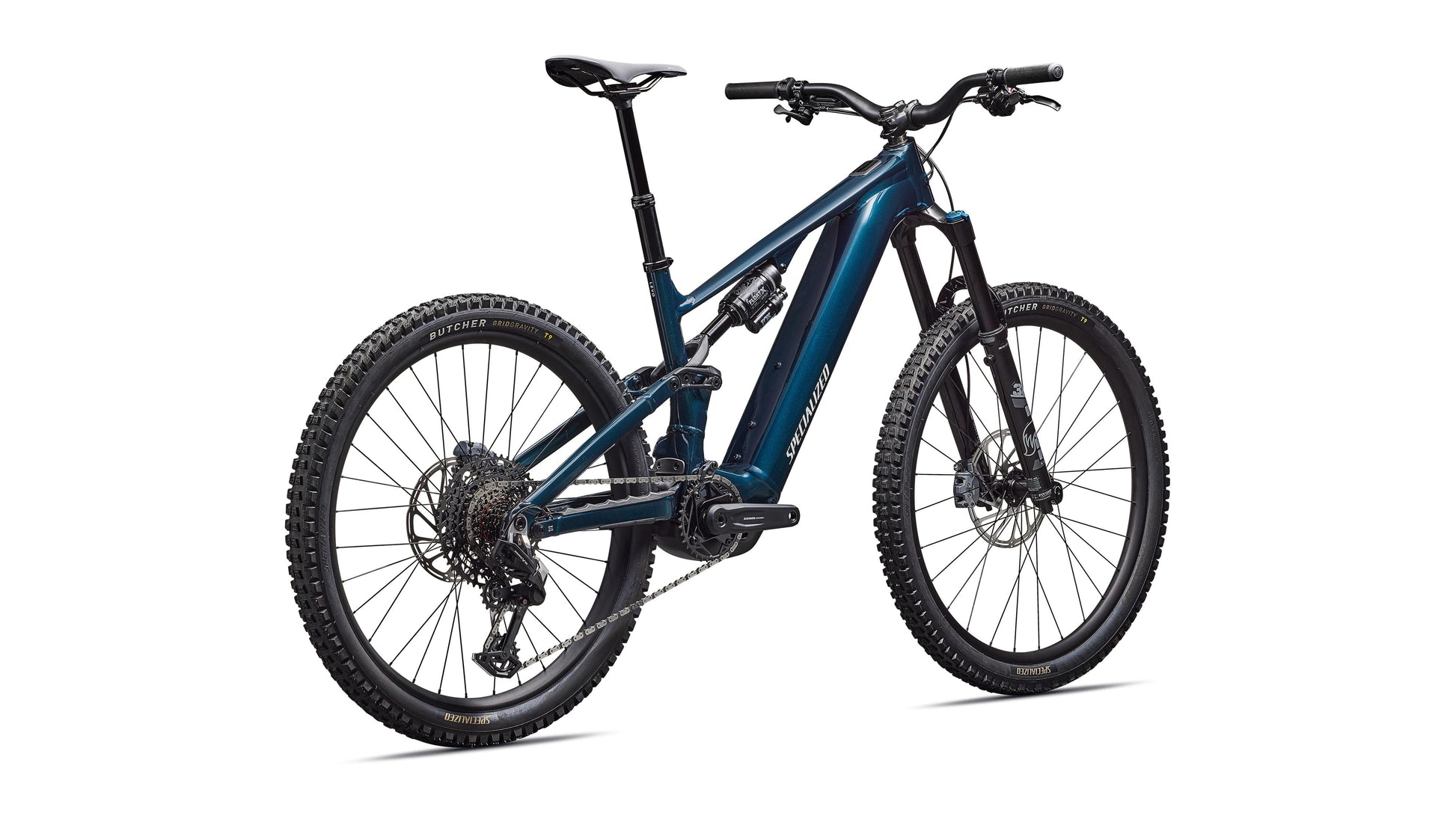

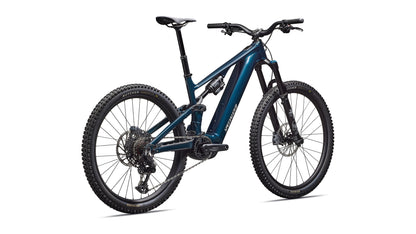

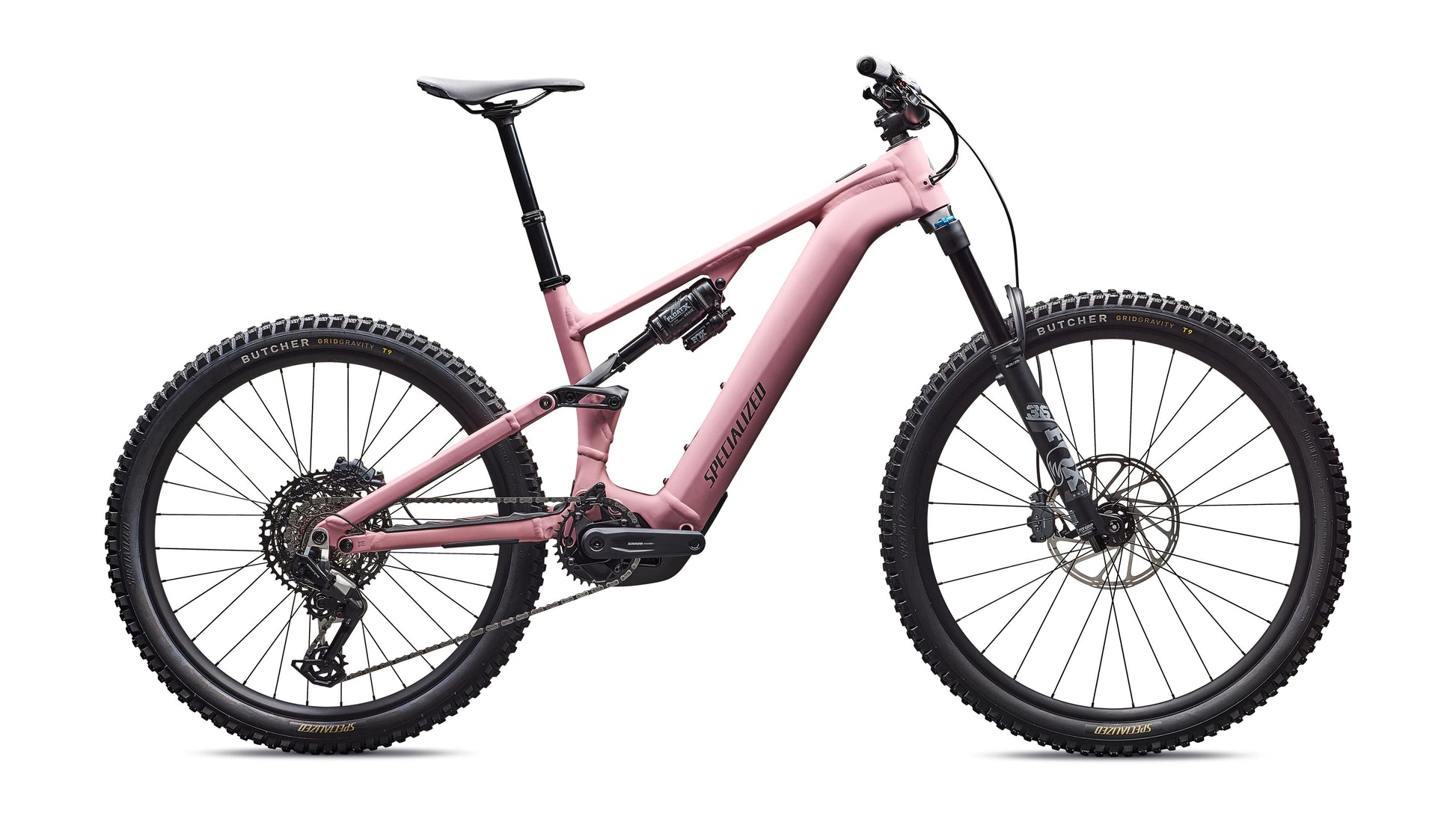

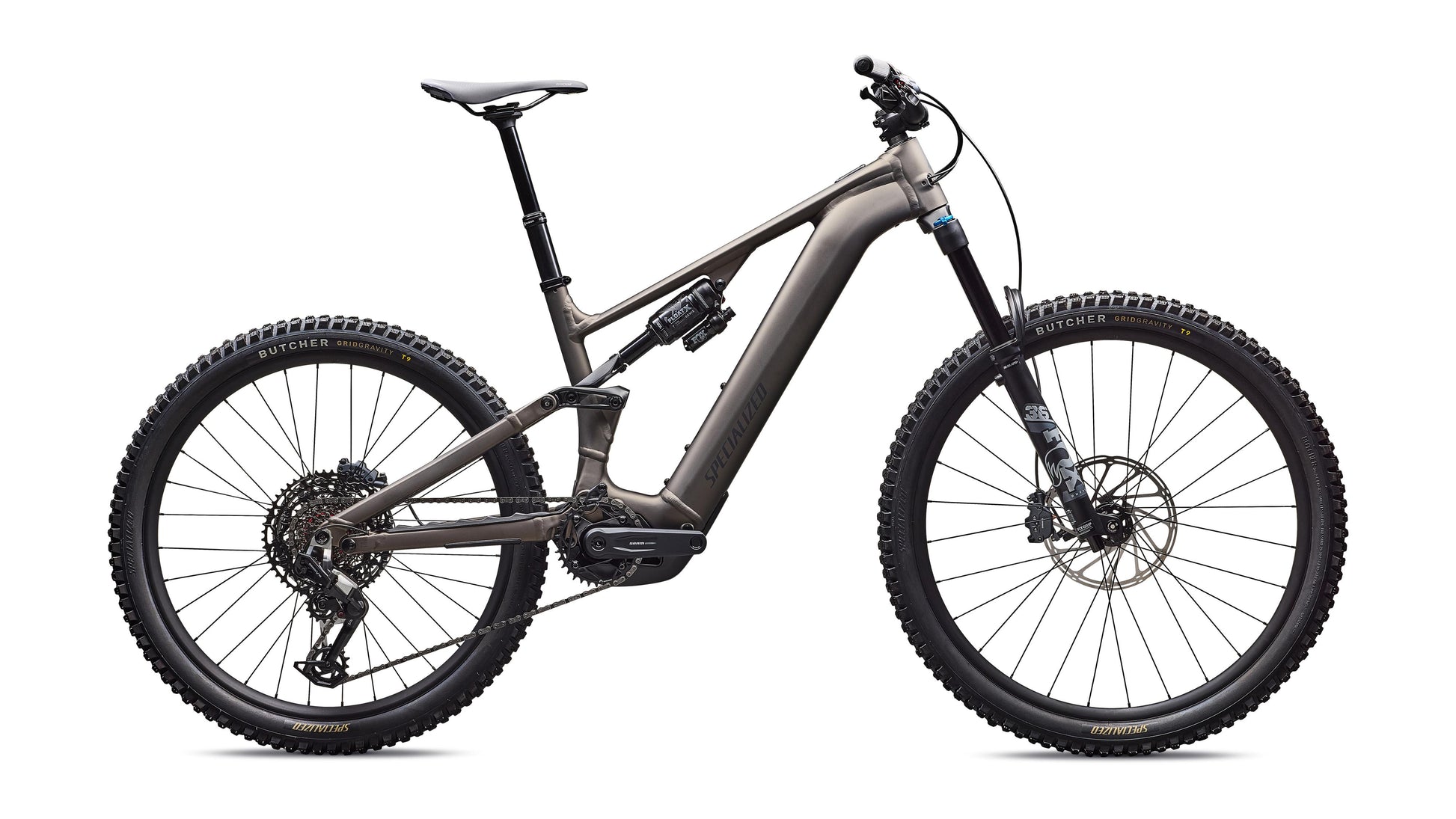

2026 Specialized Turbo Levo 4 Comp Alloy Features
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
At a Glance
- Use - Full Power E-MTB Trail
- E-System - Specialized 3.1 Motor w/ 666 Watts & 101Nm, 840Wh Battery, up to 5.33 hour range
- Frame - Premium M5 Alloy, Geo Adj & SWAT Storage
- Suspension - Front: 160mm FOX 36 Rhythm GRIP, Rear: 150mm GENIE - FOX FLOAT X Performance
- Drivetrain - SRAM 90 Eagle T-Type Mechanical
- Wheels - Specialized Alloy / Bear Pawls hubs
Component Specifications

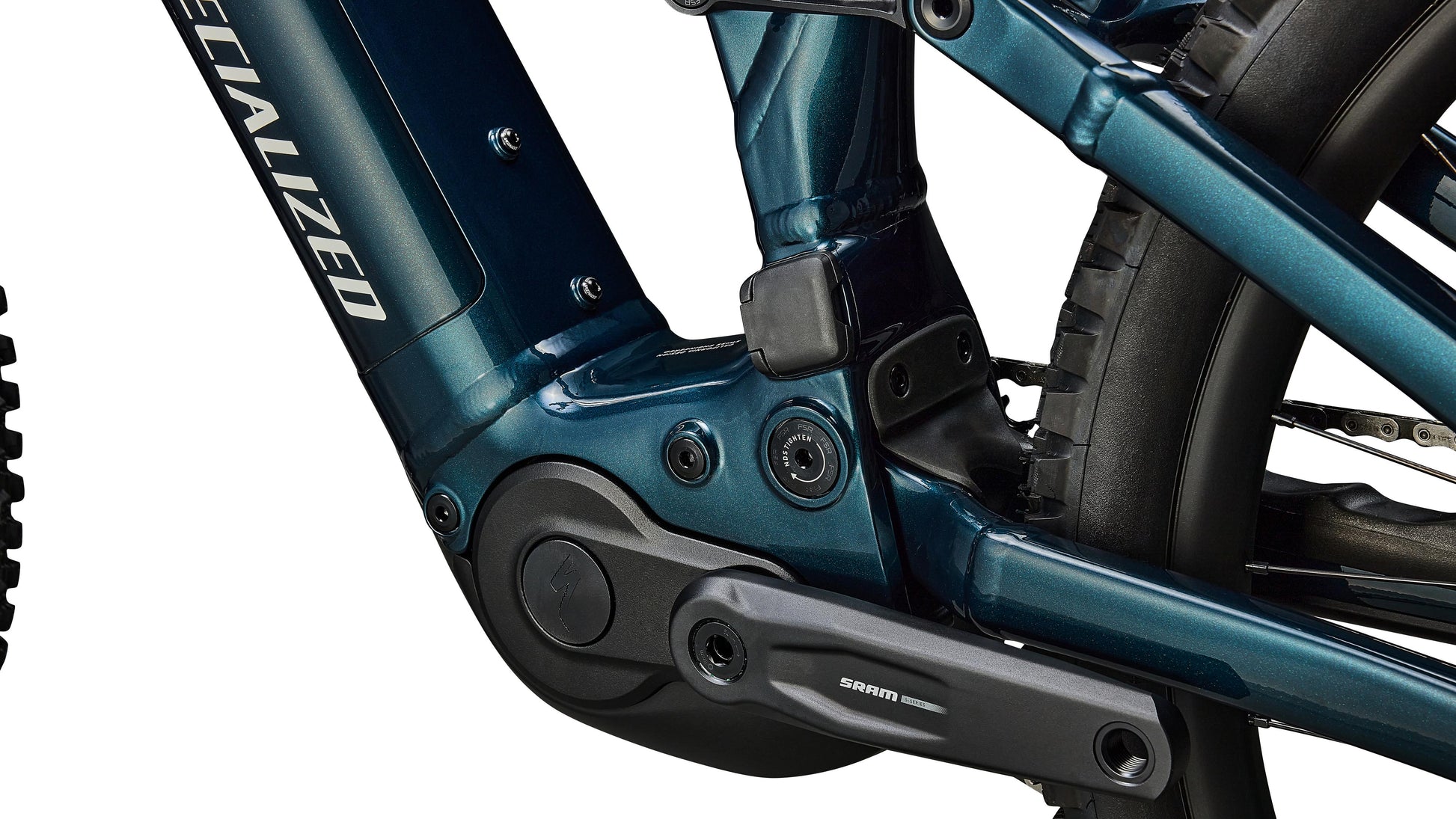

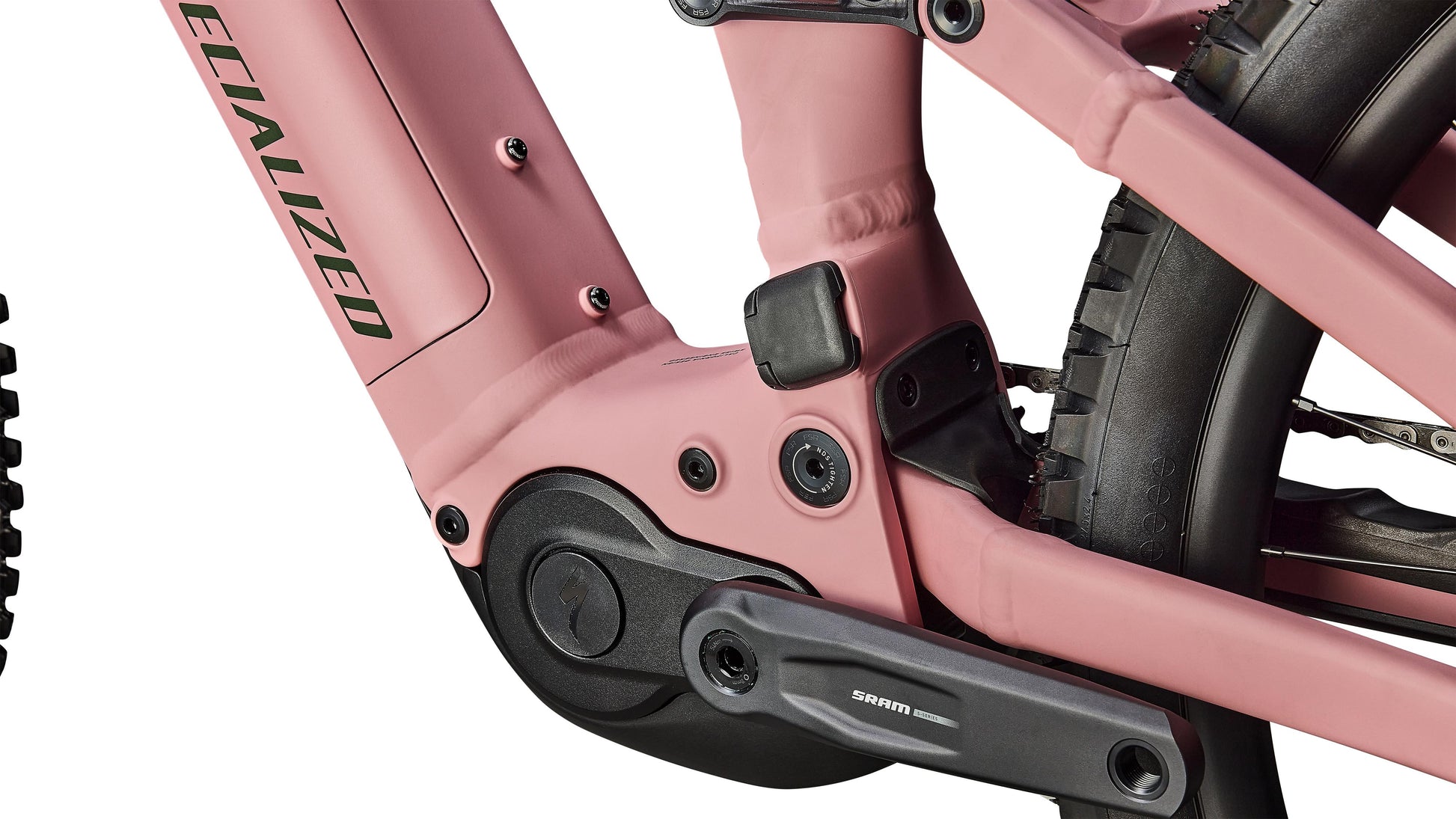

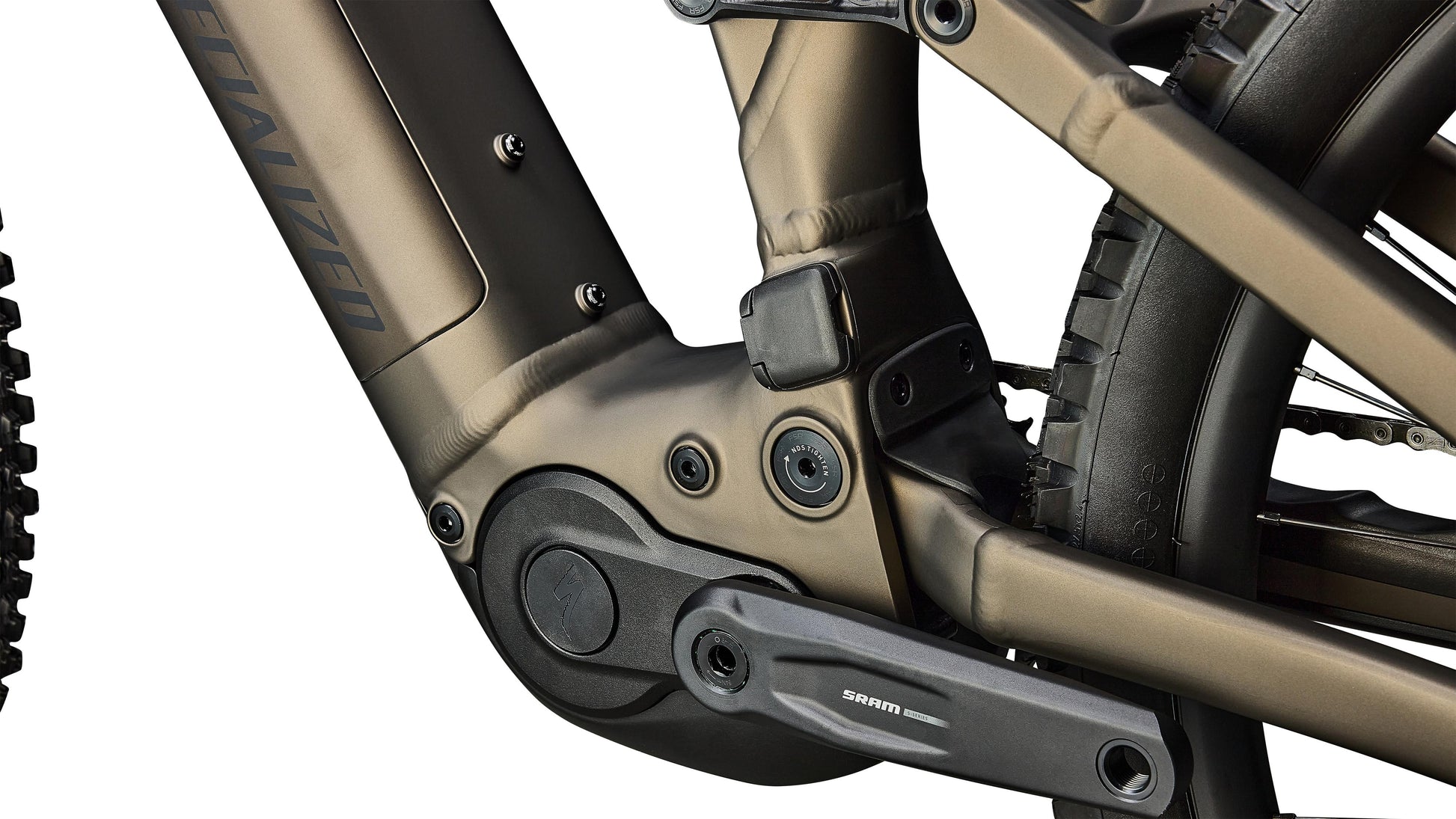

| Motor | All New Specialized 3.1 Motor, 101Nm torque, 666Nm power |
| Battery | 840Wh battery |

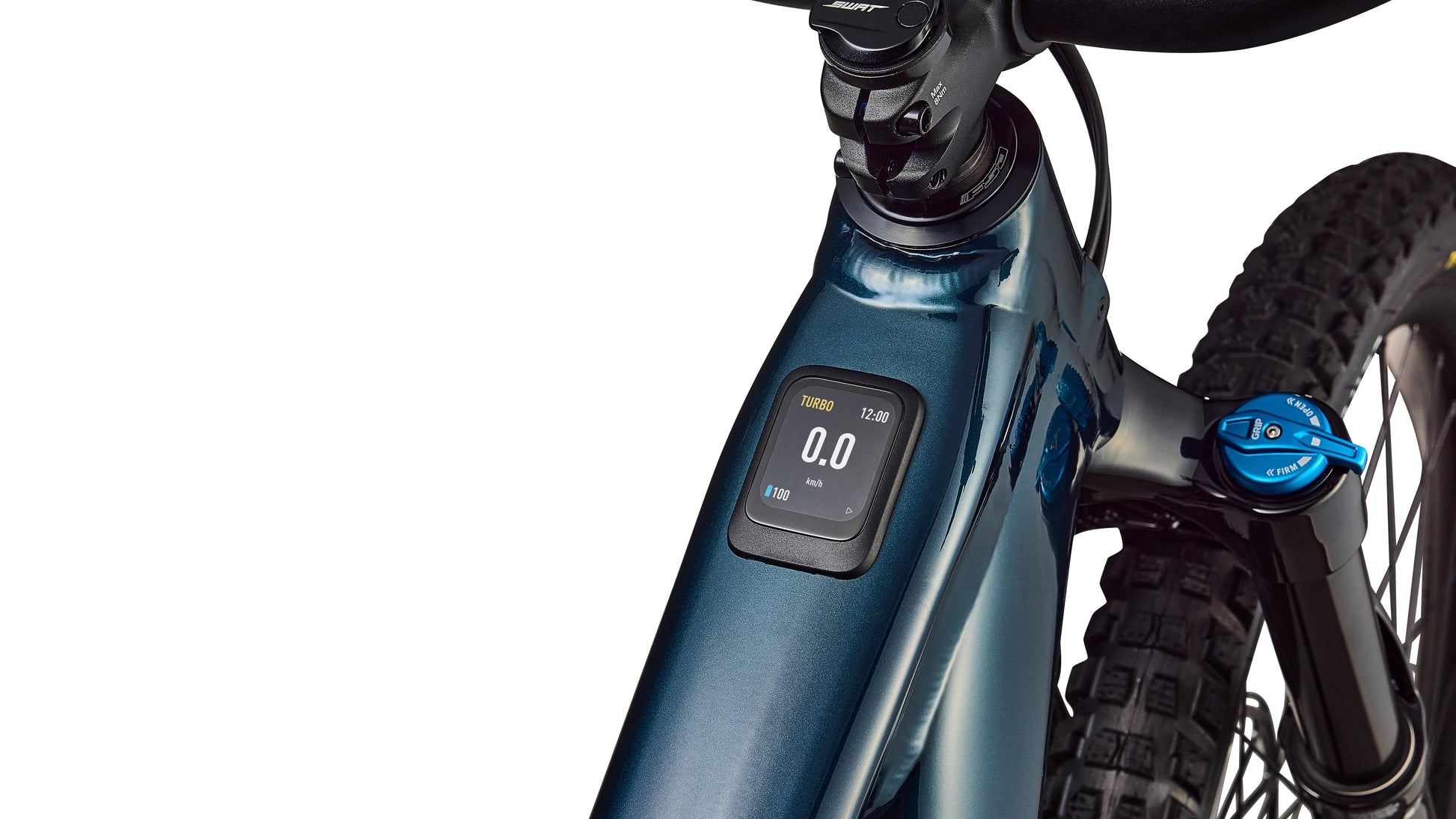

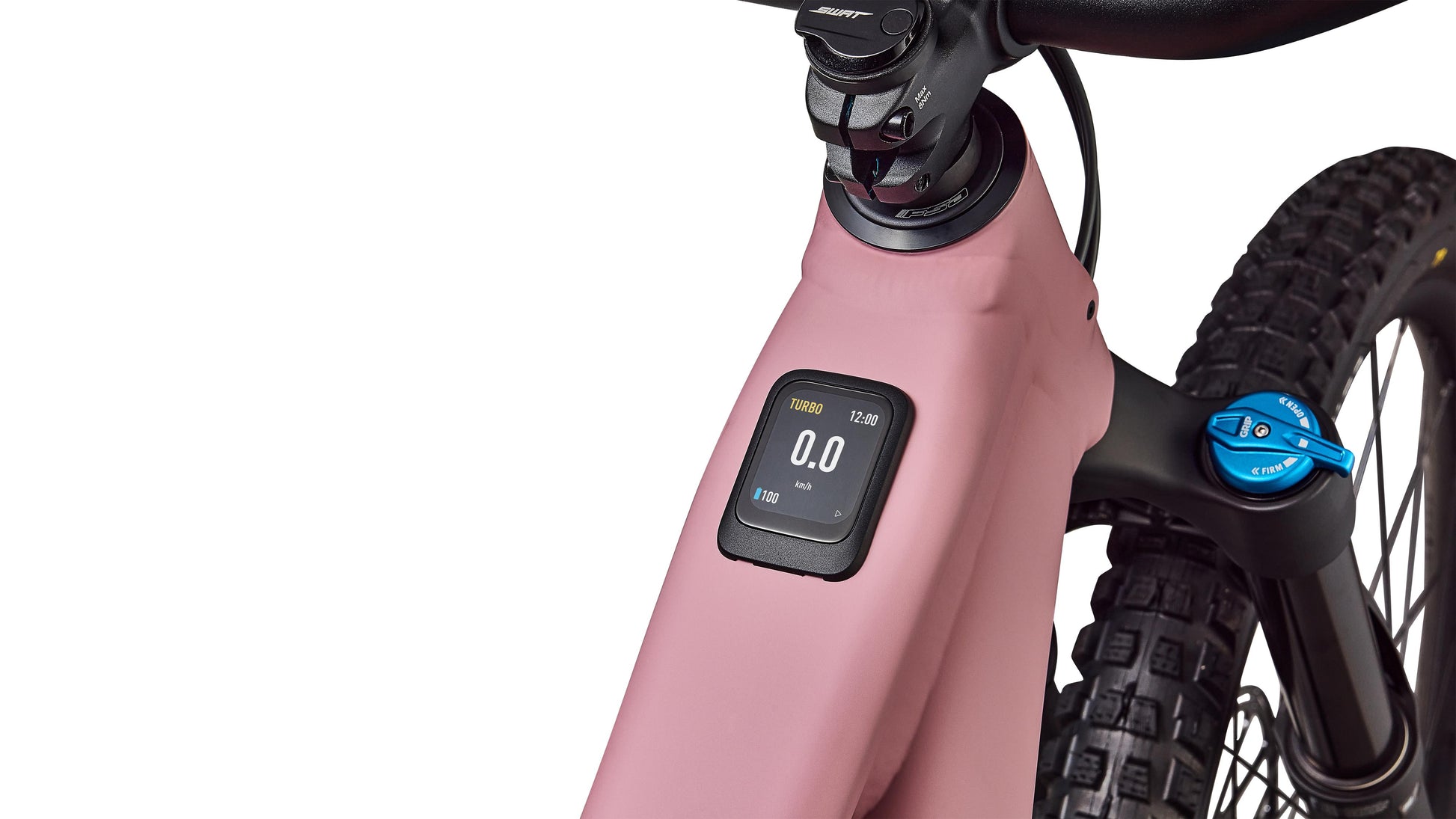

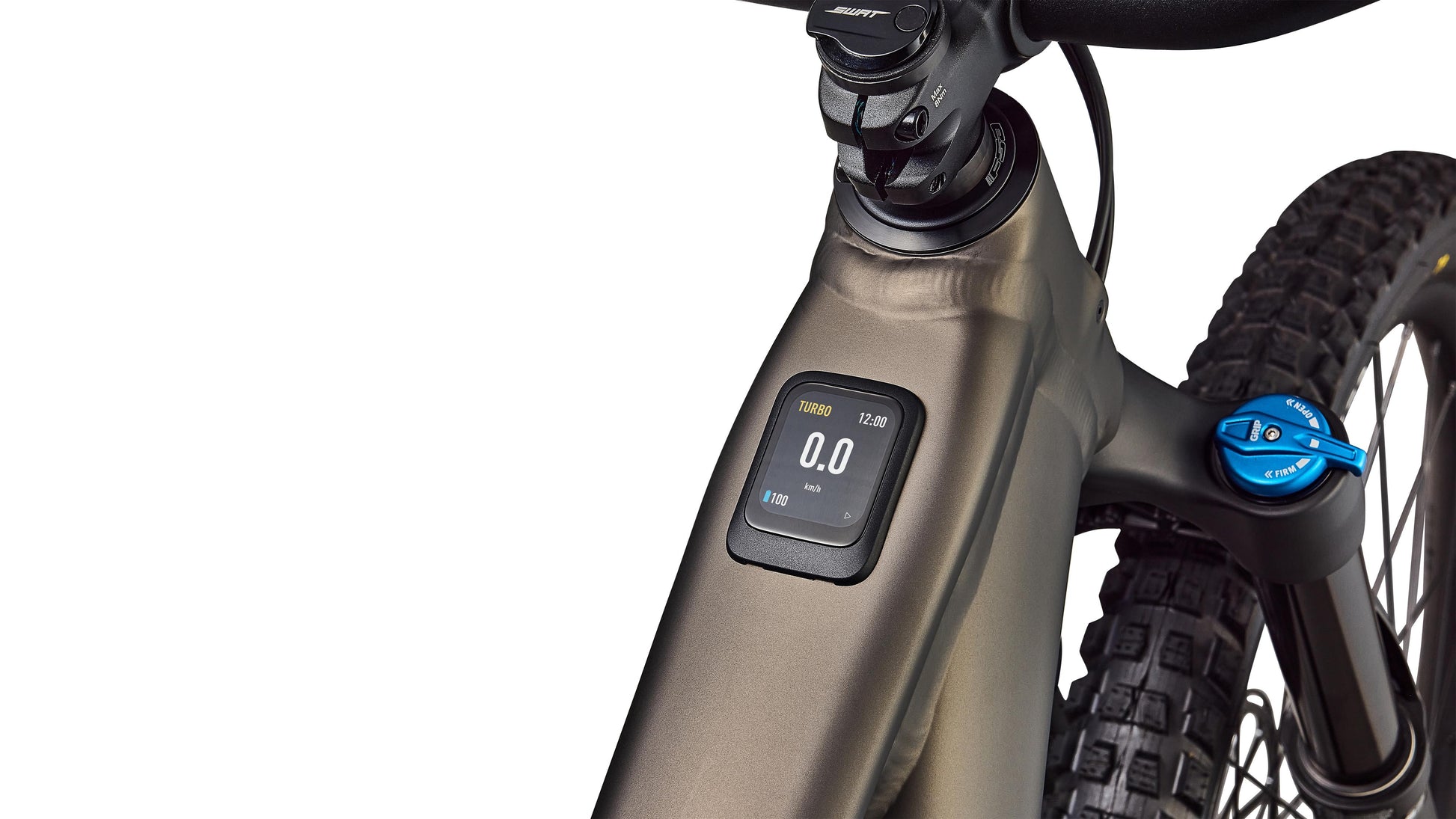

| UI Remote | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App |
| Charger | Specialized 4amp charger |
| Frame | All new Levo 4 M5 Alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle |

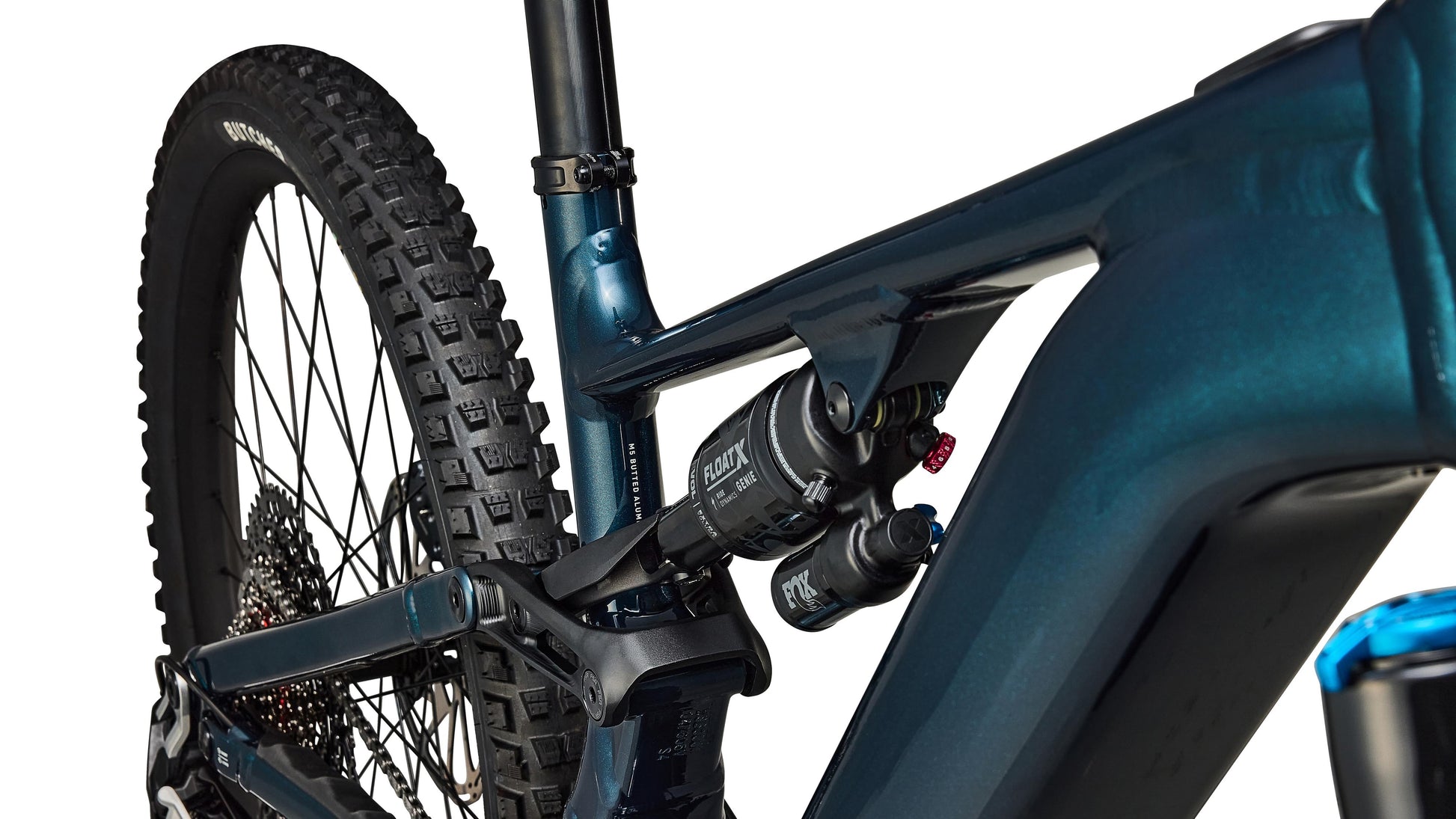

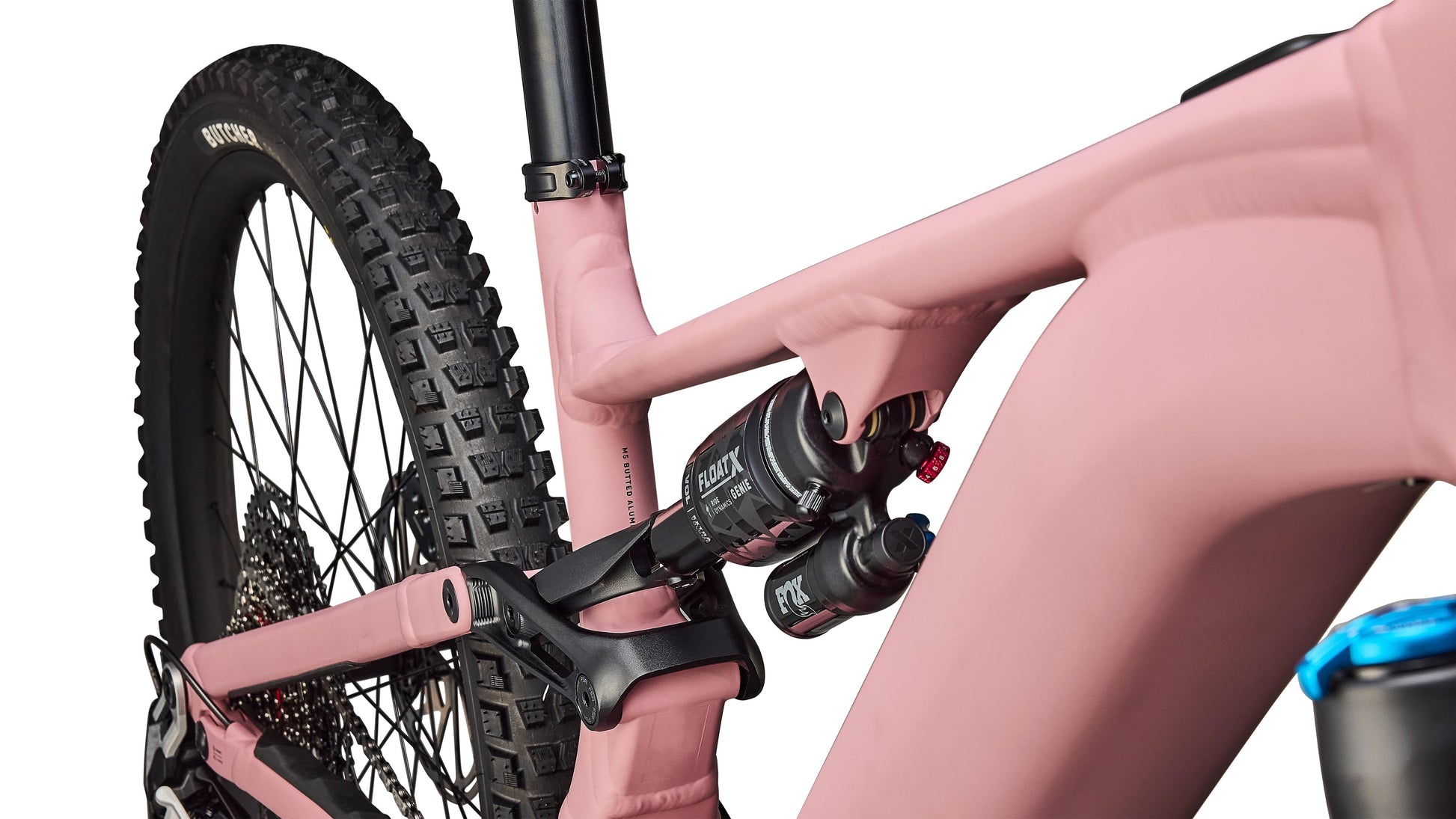

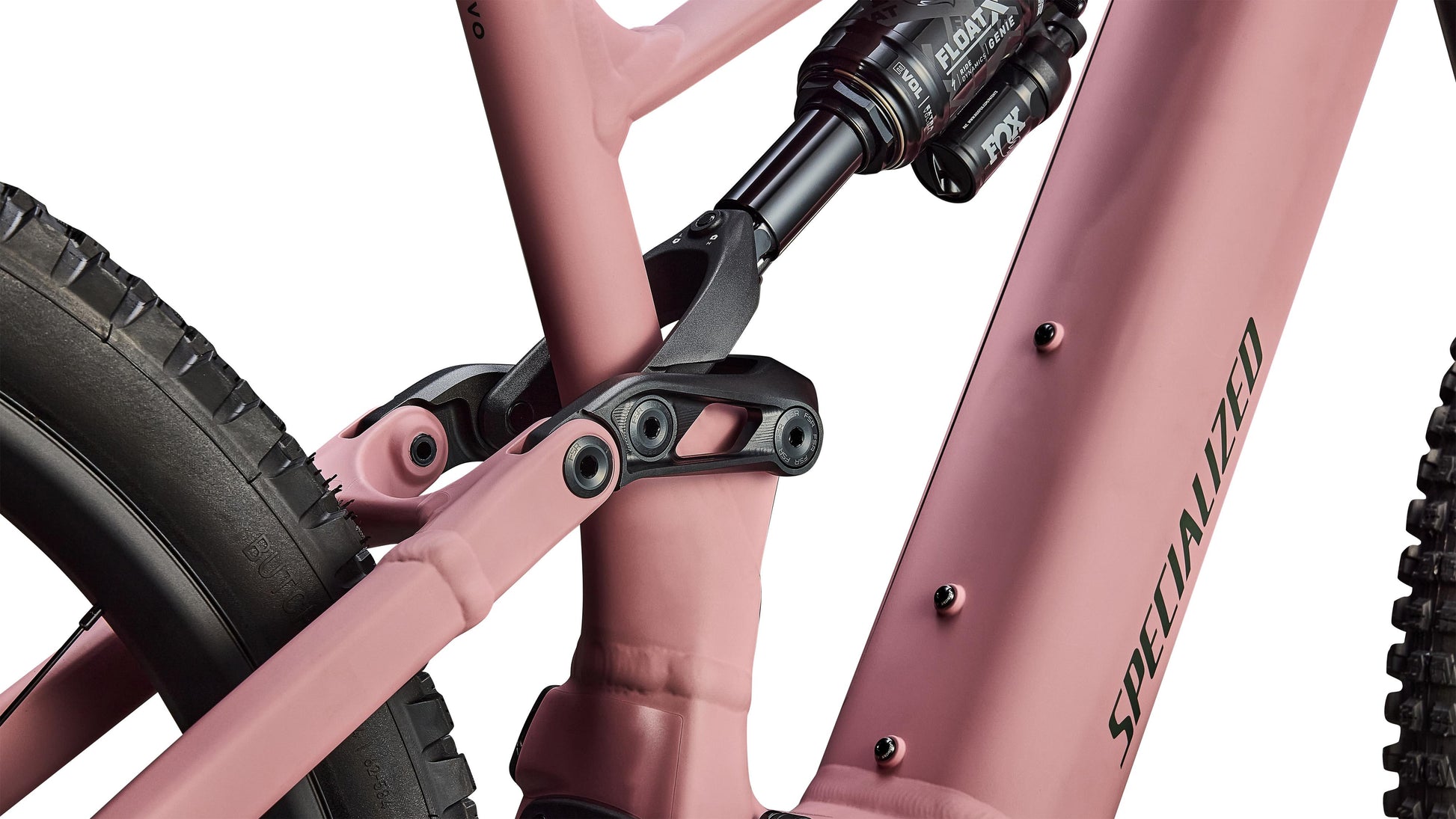

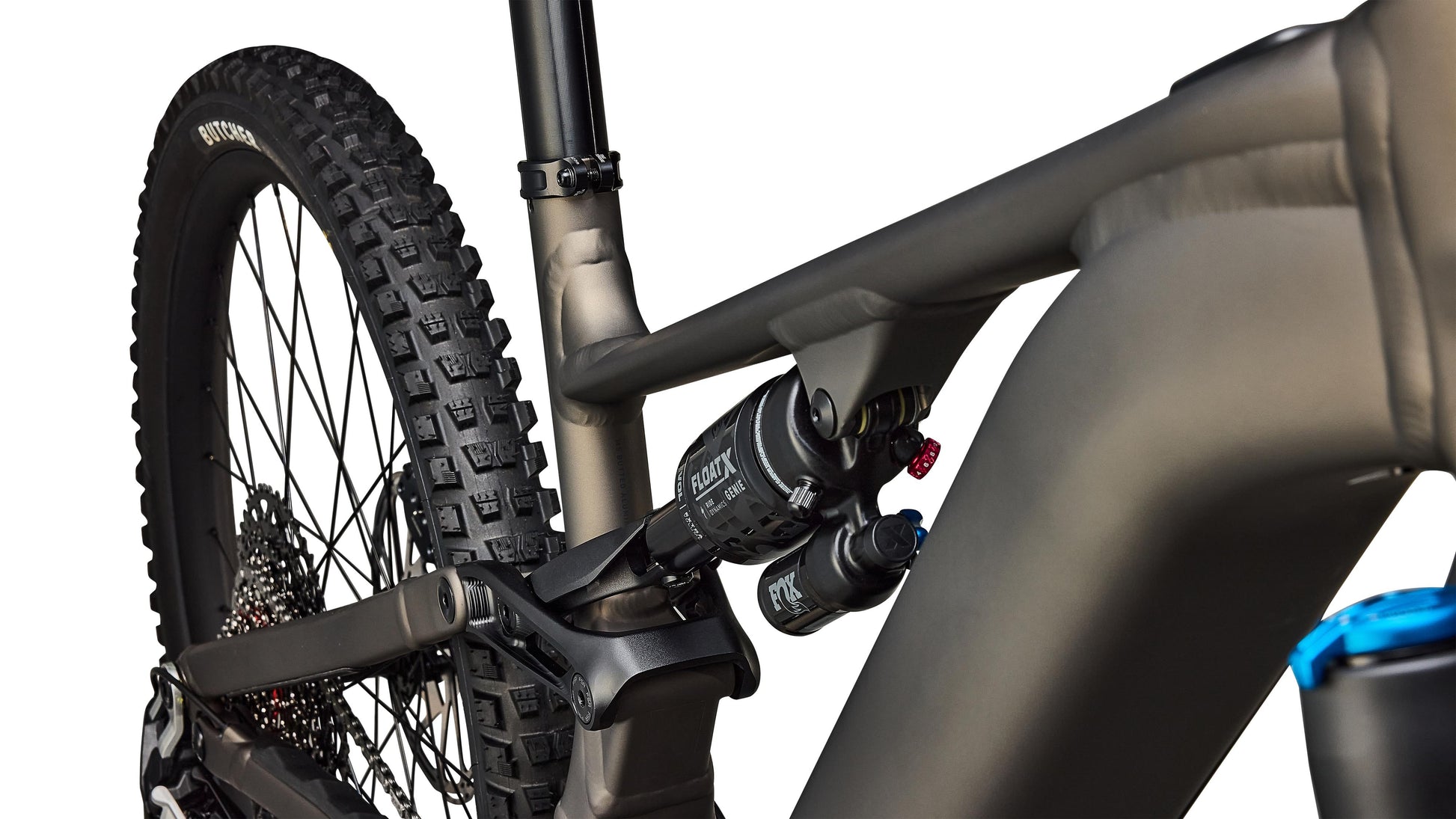

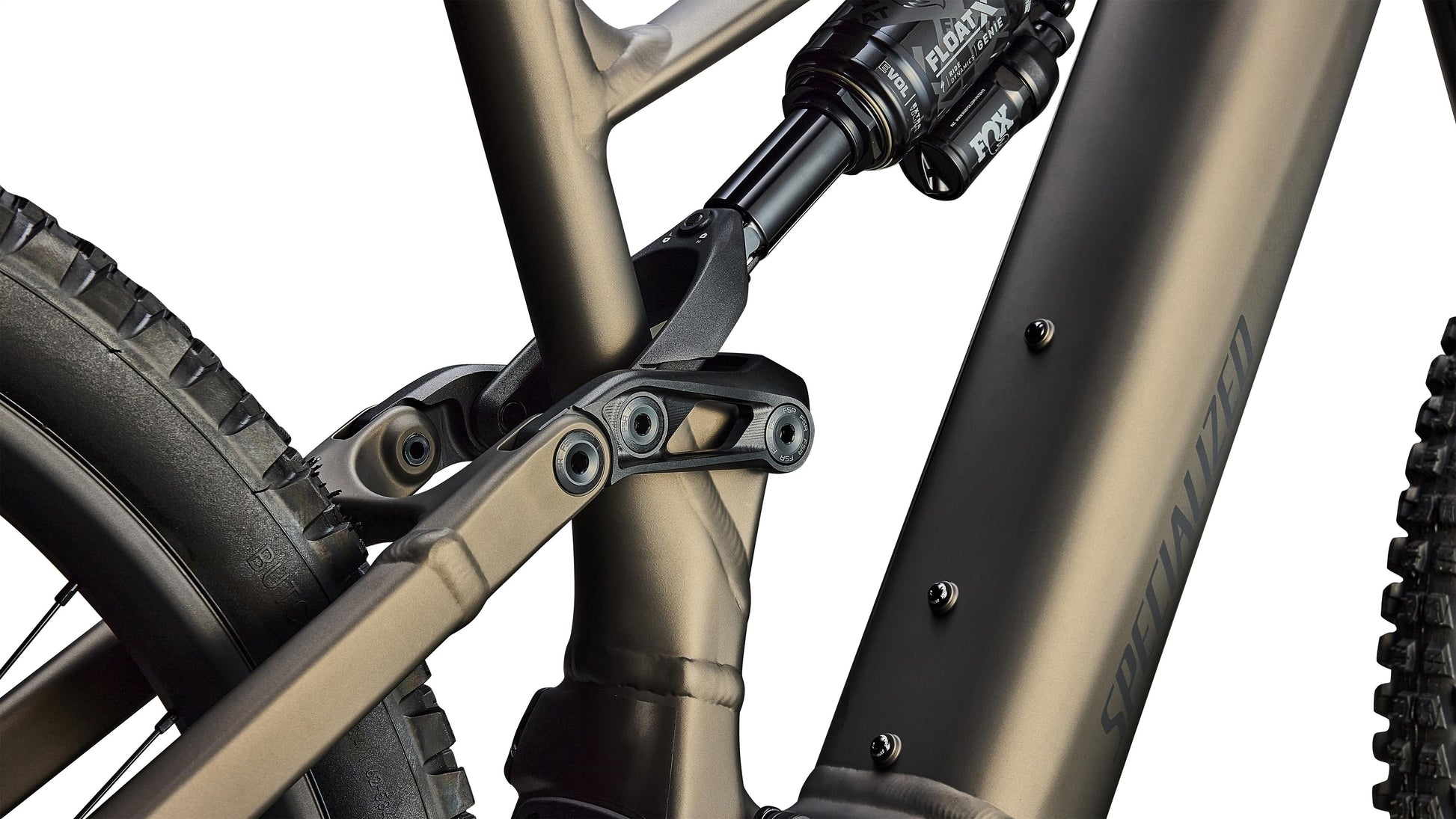

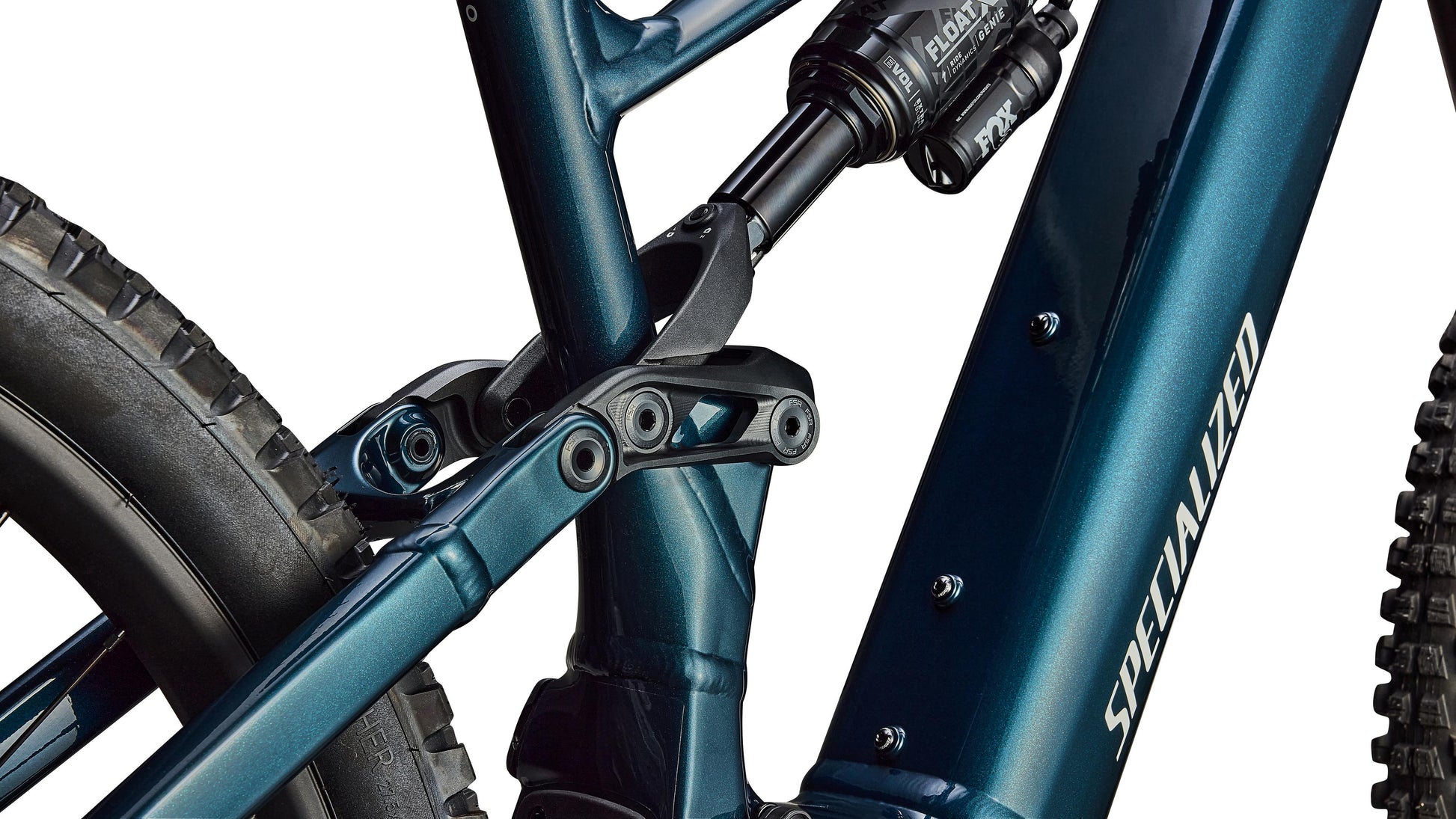

| Rear Shock | S2-S6: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm, S1: FOX FLOAT X Performance Elite , Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment 210x55mm |
| Shift Levers | SRAM 90 trigger, 12-speed, single click |
| Rear Derailleur | SRAM Eagle 90 T-Type |
| Cassette | SRAM 1270 Transmission Cassette, 12 Spd,10-52t |
| Chain | SRAM 70 Transmission Chain |
| Crankset | SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm |
| Chain Rings | SRAM 34t T-Type chainring, 104 BCD, steel |
| Rims | Specialized, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4" |
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor |
| Rear Brake | SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor |
| Stem | Alloy Trail Stem, 35mm bar bore |

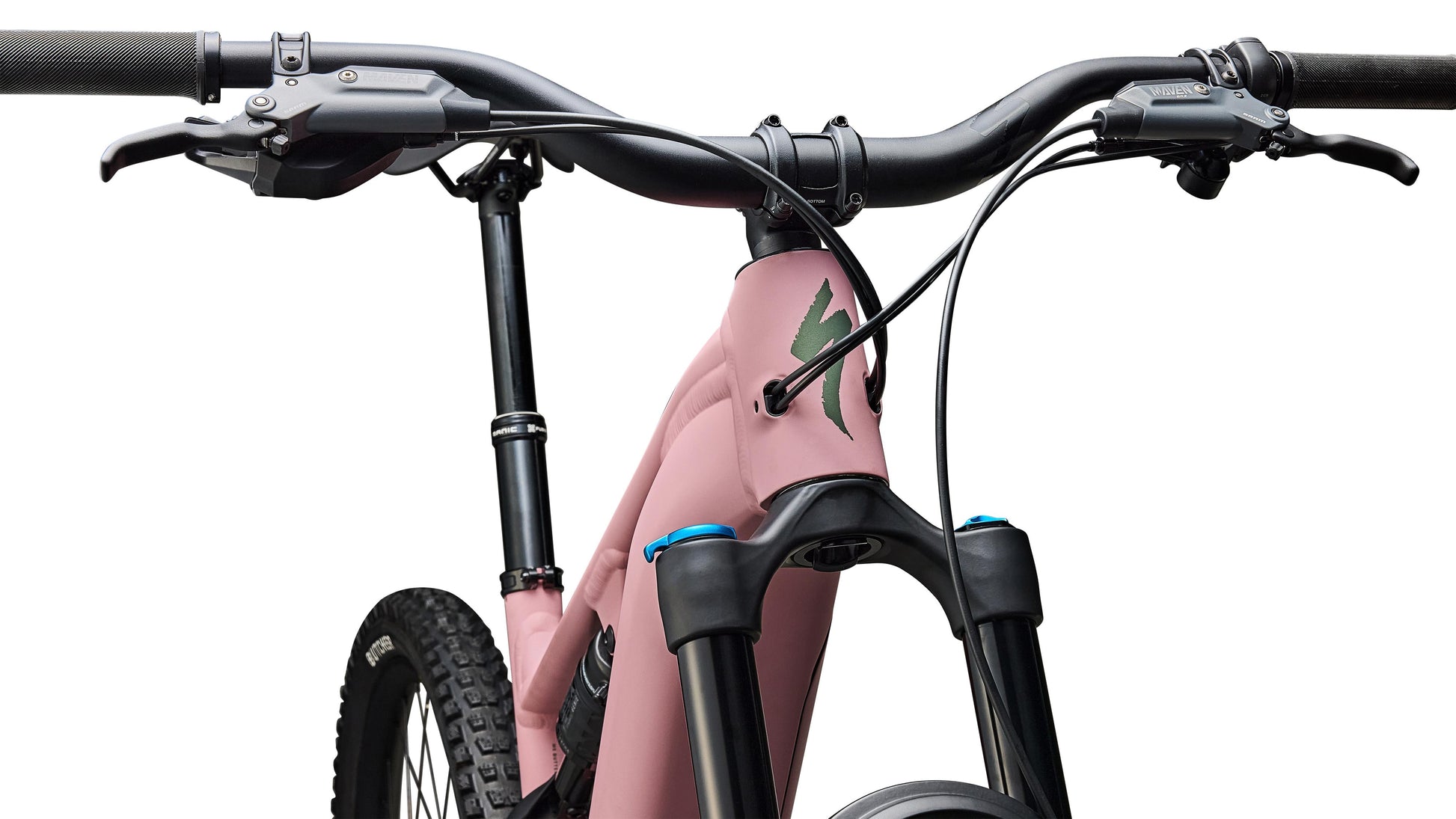

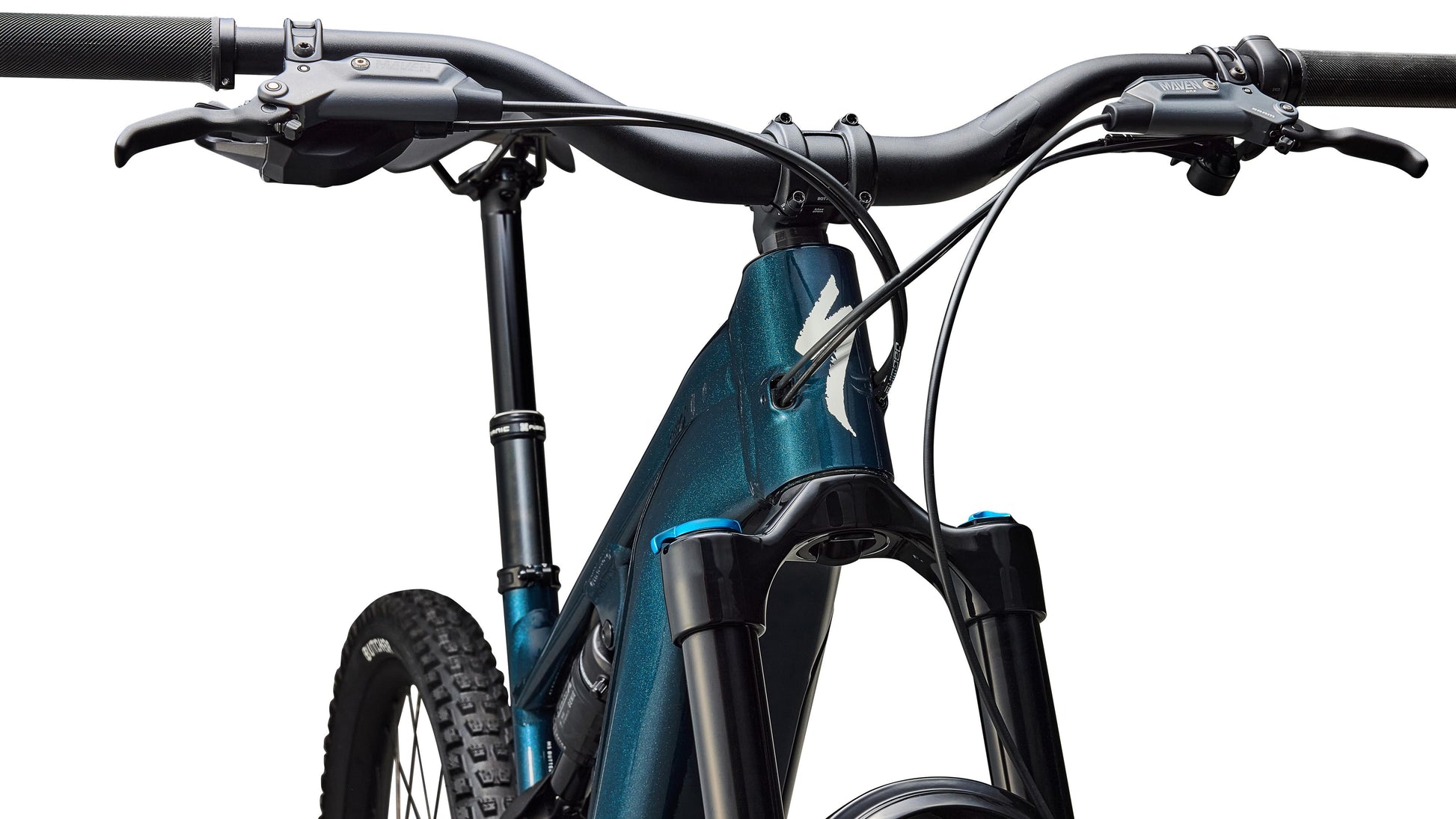

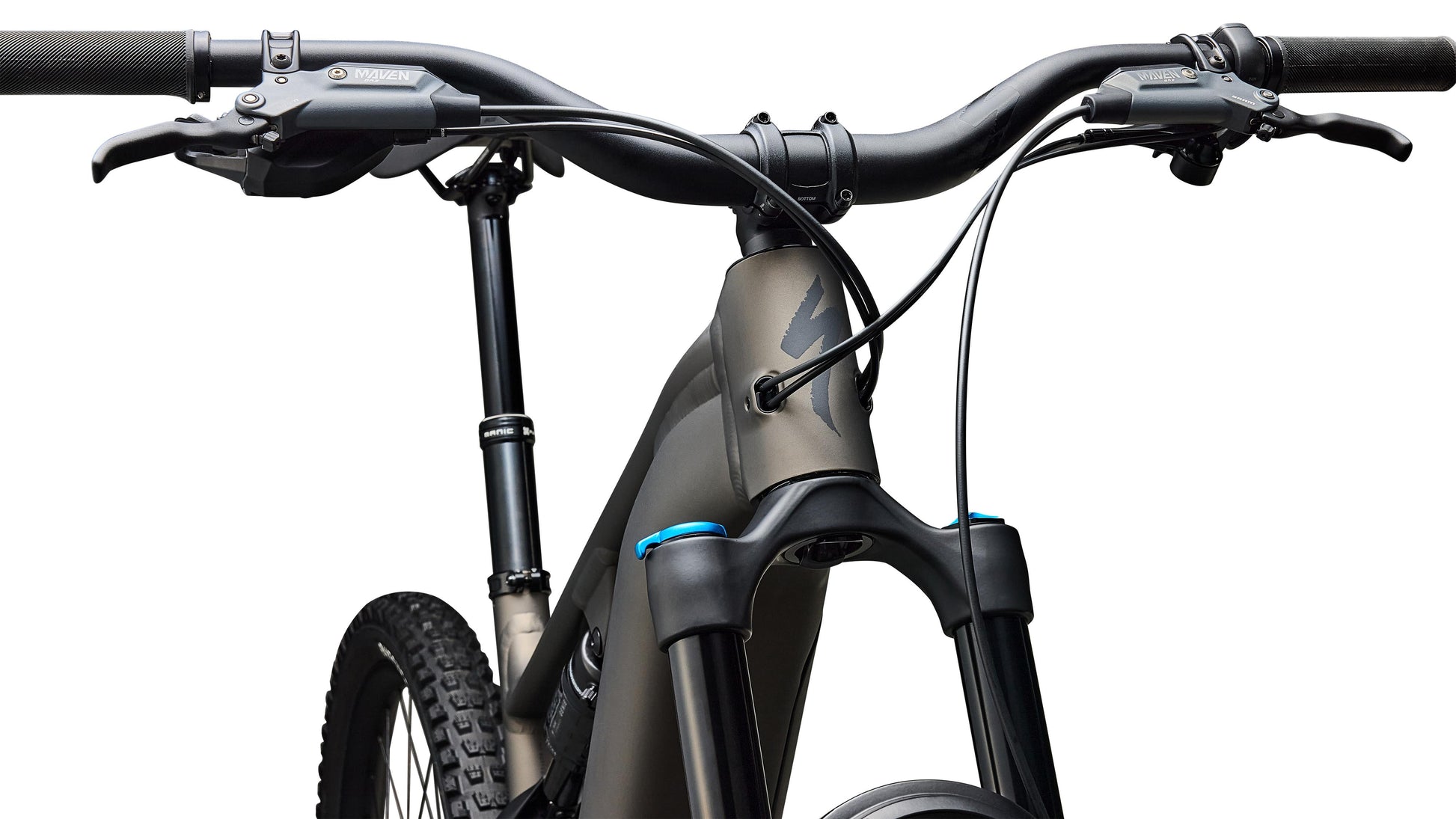

| Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm width and 30mm rise, S3-S6 800mm width and 50mm rise |
| Grips | Specialized Trail Grips |
| Saddle | Bridge Comp, Hollow Cr-mo rails 155/143 |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm |

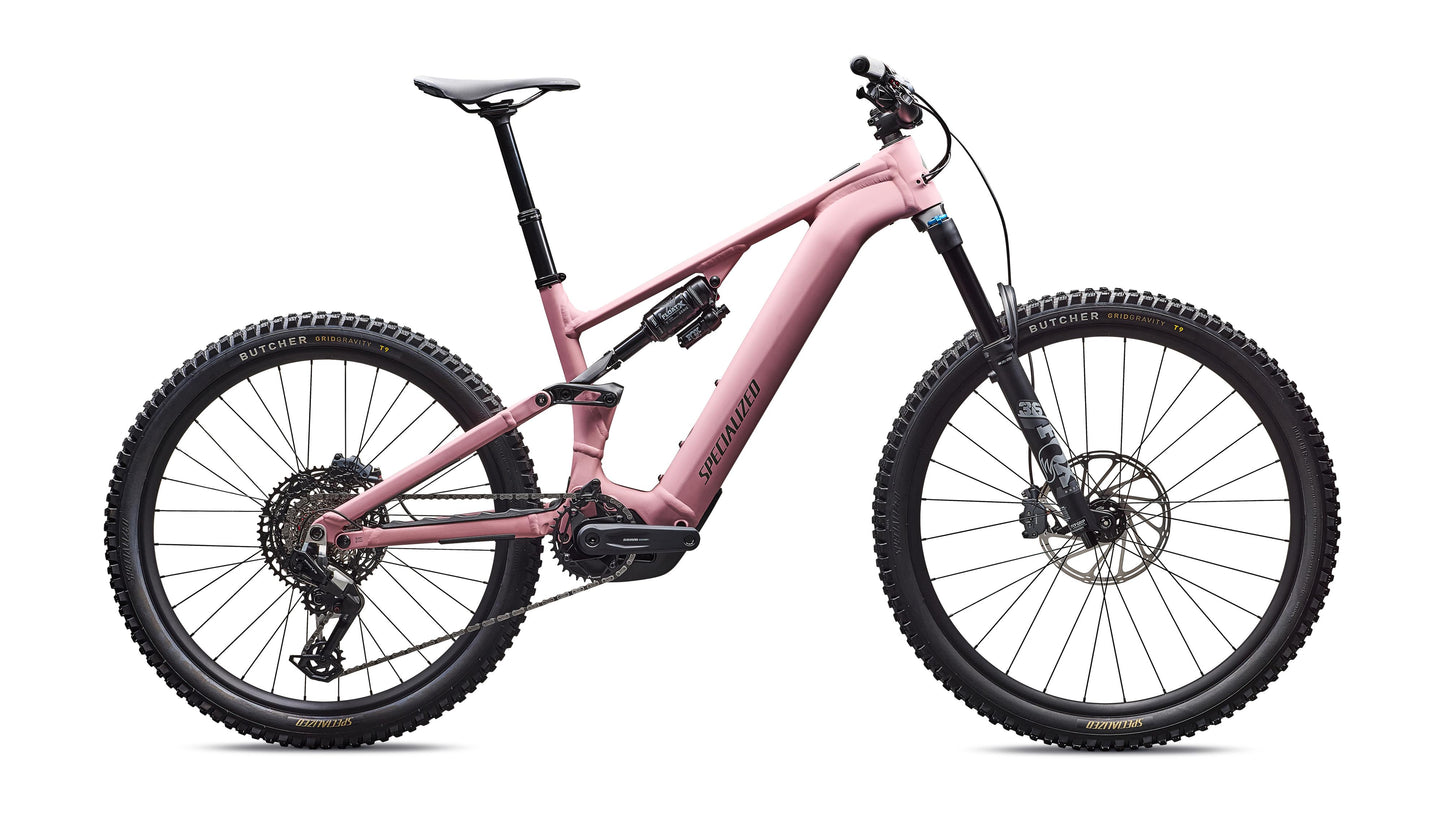

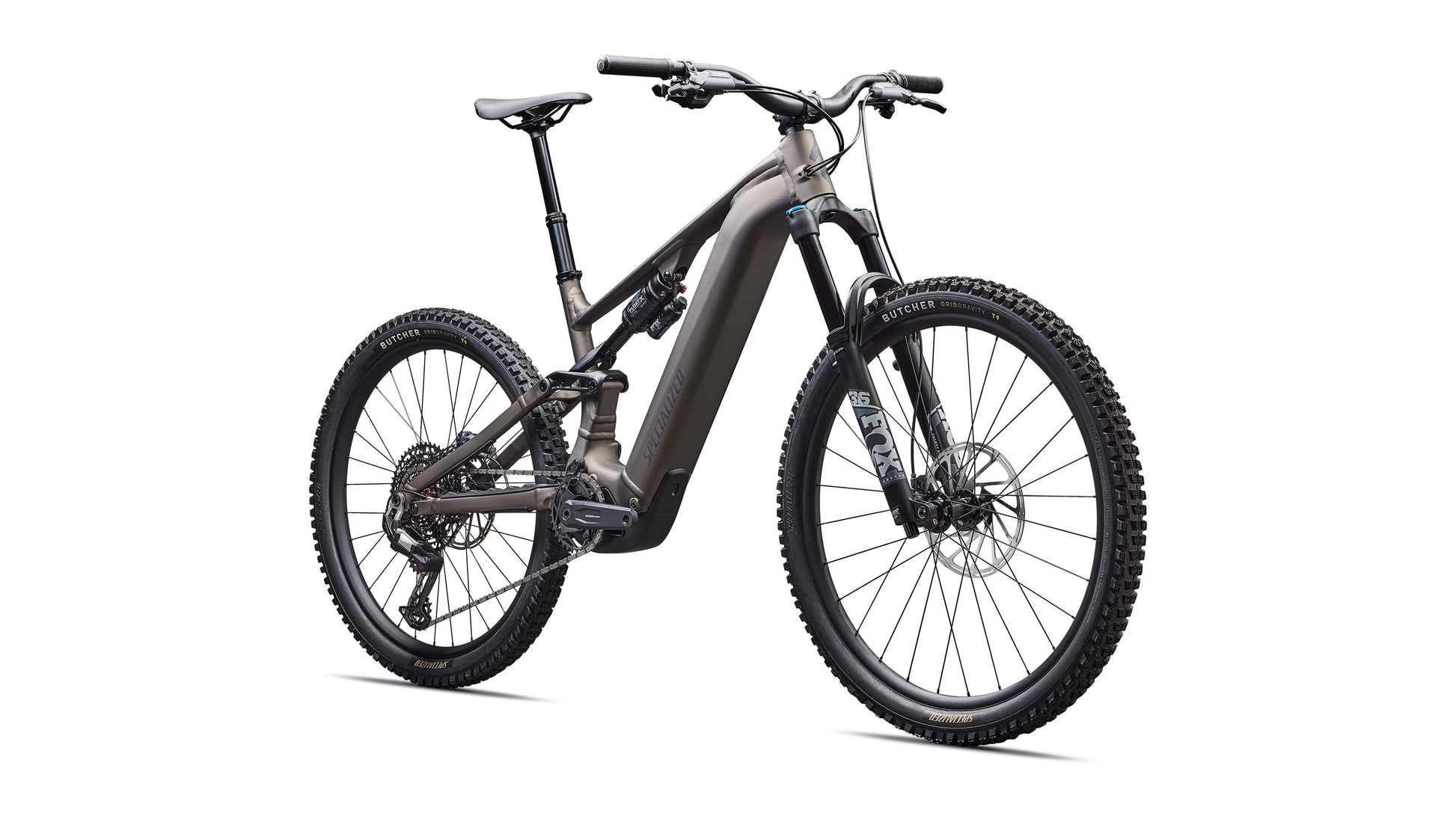

2026 Specialized Turbo Levo 4 Comp Alloy
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack | 609 mm | 618 mm | 626 mm | 638 mm | 652 mm | 667 mm |
| Reach | 407 mm | 435 mm | 455 mm | 480 mm | 505 mm | 535 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1179 mm | 1200 mm | 1223 mm | 1254 mm | 1286 mm | 1323 mm |
| Top-tube Length (horizontal) | 556 mm | 578 mm | 599 mm | 627 mm | 655 mm | 689 mm |
| Bike Standover Height | 753 mm | 753 mm | 754 mm | 753 mm | 758 mm | 761 mm |
| Seat Tube Length | 379 mm | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 76° | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle | 645 mm | 690 mm | 735 mm | 780 mm | 825 mm | 870 mm |
| Max Seatpost Insertion | 264 mm | 274 mm | 289 mm | 313 mm | 337 mm | 357 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Headtube Length | 94 mm | 95 mm | 103 mm | 117 mm | 132 mm | 149 mm |
| Headtube Angle | 64° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 355 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| BB Drop | 24.13 mm | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm |
| Trail | 137 mm | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Fork Length (full) | 567 mm | 577 mm | 577 mm | 577 mm | 577 mm | 577 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 744 mm | 765 mm | 789 mm | 820 mm | 851 mm | 888 mm |
Size Guide: 2026 Specialized Turbo Levo 4 Comp Alloy
