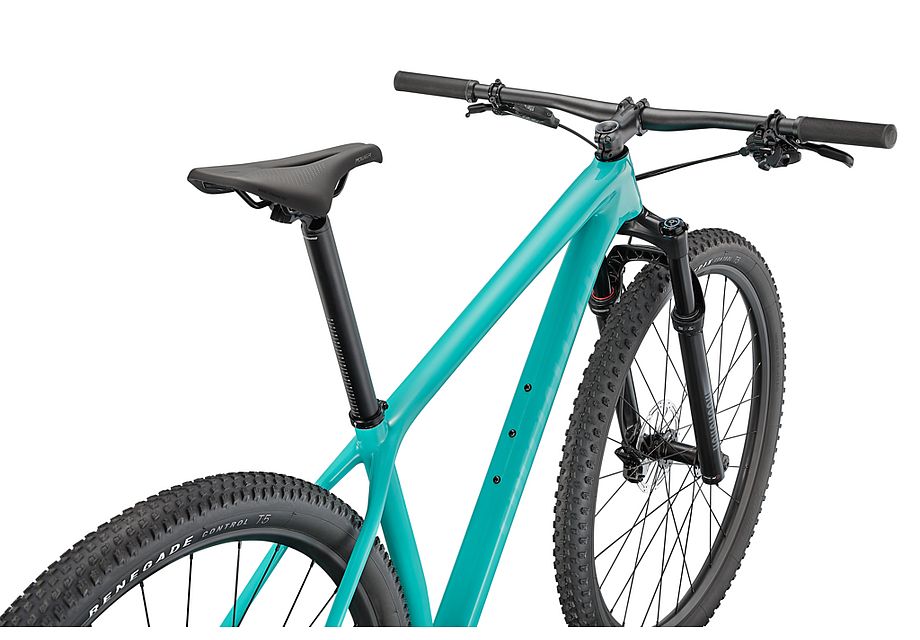

Specialized Epic Hardtail S-Works Frame Features
The S-Works Epic Hardtail is the lightest and most capable carbon hardtail frame ever created. Need we say more? While that does a great job of summing things up, if we’re being honest, we’re still a bit too proud to leave it at that. An impressive 140 grams lighter than the already ‘how’d they do that’-light Epic Hardtail frame, the S-Works frame makes use of our FACT 12m carbon to cut a figure that’ll make any gram-counter swoon, while still offering riders enough capability and composure to wring out extra seconds on any section of course, not just the groomed bits. Working towards the lightest bike possible has long been the race within the race, but at what cost? The battle of the grams certainly hasn’t been without its casualties, with hardtail XC race bikes coming to stand for a harsh, twitchy ride at the expense of capability and versatility. But who said fatigue from fighting against your own bike makes you any faster? Instead, recognizing that the fastest bike is more than simply the lightest bike, we said out with the jarred-to-death tail, the measure-your-posterior’s-sorrows-by-the-yard tail and in with the avant-garde tail. The ridiculously capable, mystifyingly comfortable, head-shakingly light and all-around fast, Epic Hardtail. Sure, we optimized every inch of the Epic Hardtail frame to achieve the lightest production hardtail frame in the world anyway, but we also prioritized our commitment to creating an Epic Hardtail that’s as capable as it is comfortable with aggressive singletrack-inspired geometry, increased tire clearance and a frame obsessively engineered for increased vertical compliance, all while creating a bike that lives and breathes the fundamentals of fast.
At a Glance
- Ridiculously capable and refreshingly compliant with a weight that'll make most road frames jealous, the FACT 12m carbon S-Works Epic Hardtail frame isn't just light, it's the lightest production hardtail frame ever produced.
Product Specifications
Product Specifications
Frame |
|
Seat Binder |
|
Seatpost |
Specialized Epic Hardtail S-Works Frame
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 594 mm | 608 mm | 608 mm | 622 mm | 636 mm |
| Reach | 385 mm | 405 mm | 430 mm | 455 mm | 480 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1064 mm | 1092 mm | 1117 mm | 1148 mm | 1178 mm |
| Top Tube Length, Horizontal | 555 mm | 579 mm | 604 mm | 633 mm | 662 mm |
| Bike Standover Height | 732 mm | 762 mm | 792 mm | 816 mm | 847 mm |
| Seat Tube Length | 367 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° |
| BB Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| BB Drop | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Trail | 101 mm | 101 mm | 101 mm | 101 mm | 101 mm |
| Fork Length, Full | 486 mm | 506 mm | 506 mm | 506 mm | 506 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 643 mm | 670 mm | 695 mm | 725 mm | 755 mm |
