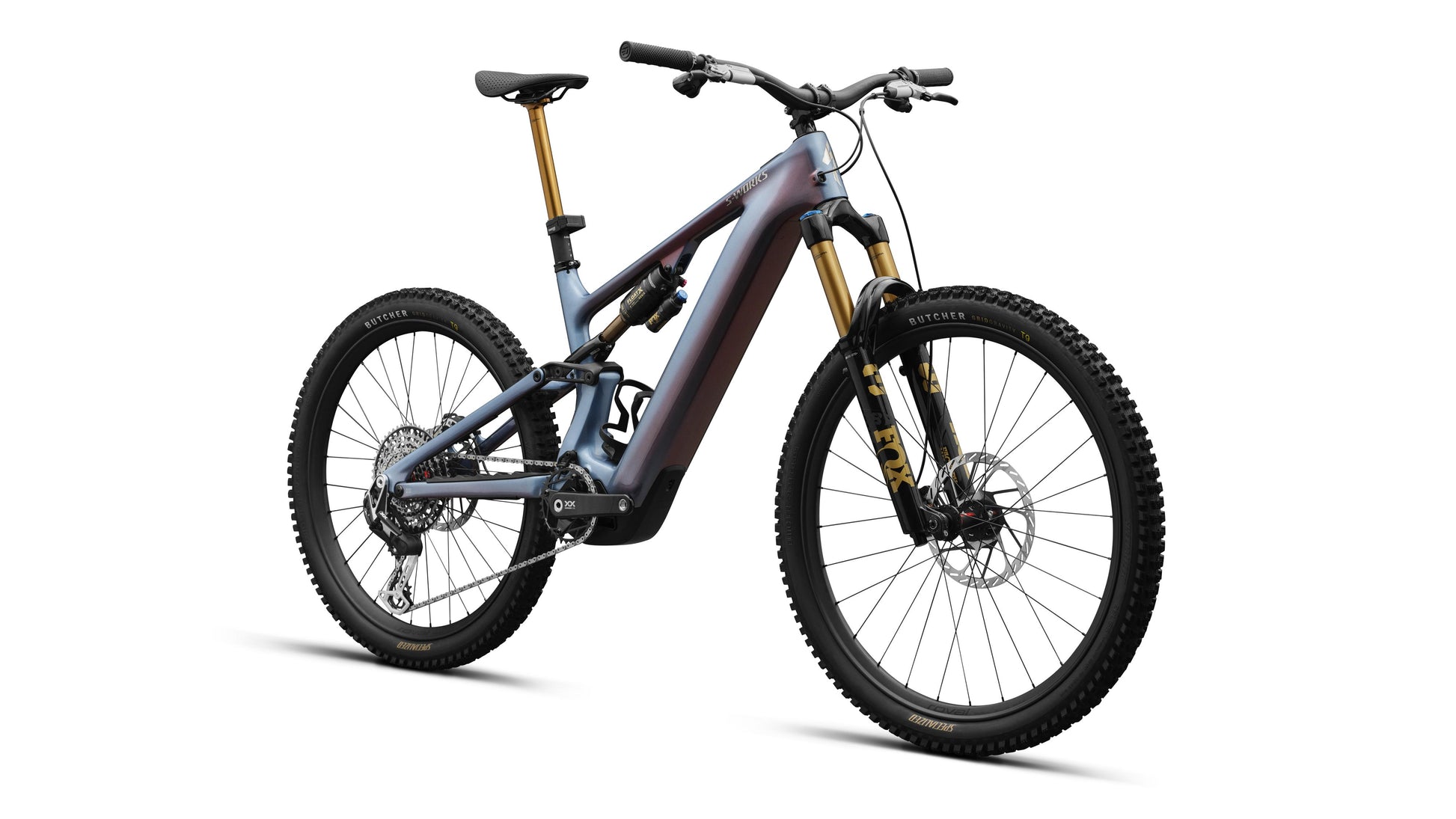

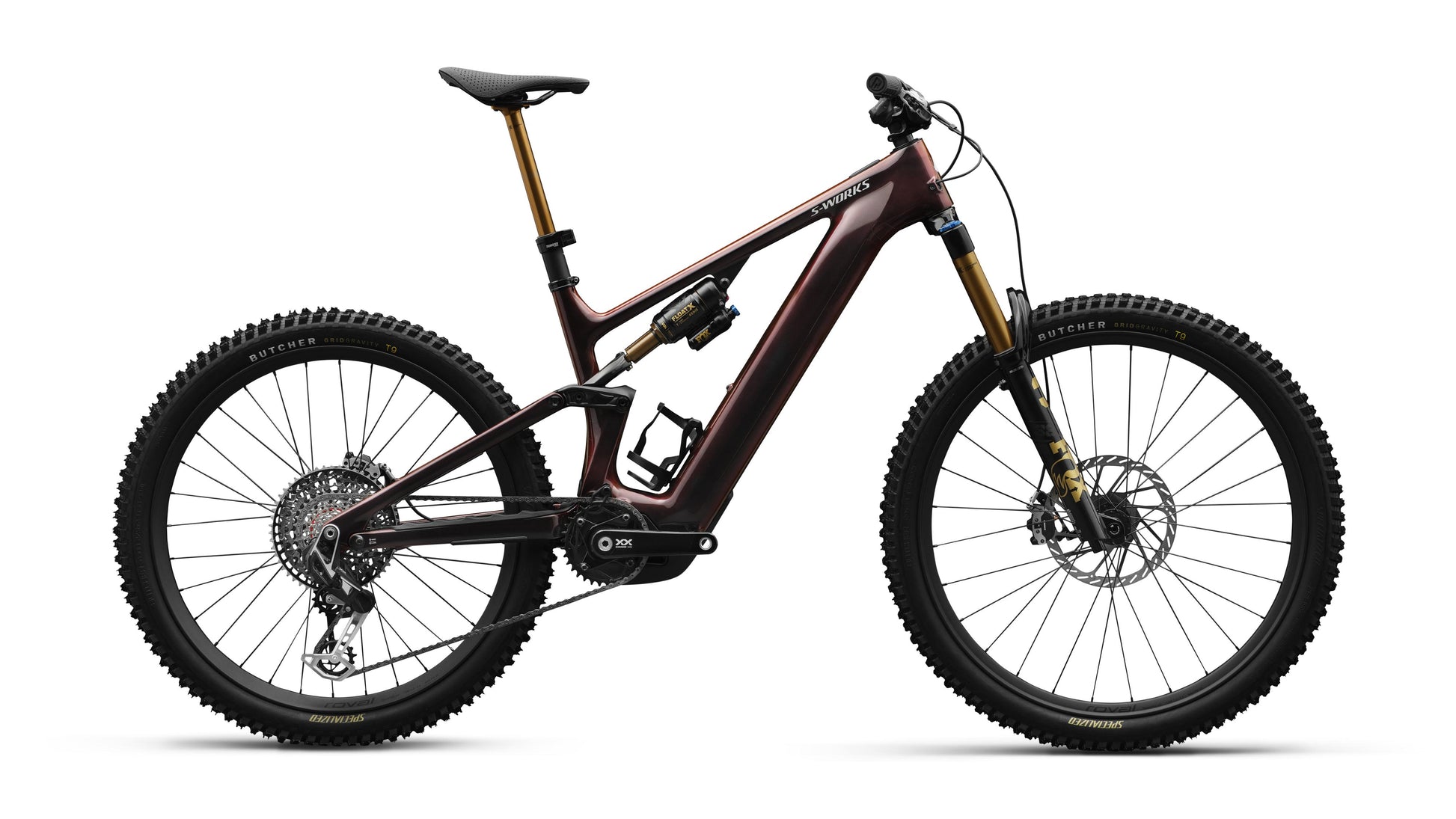

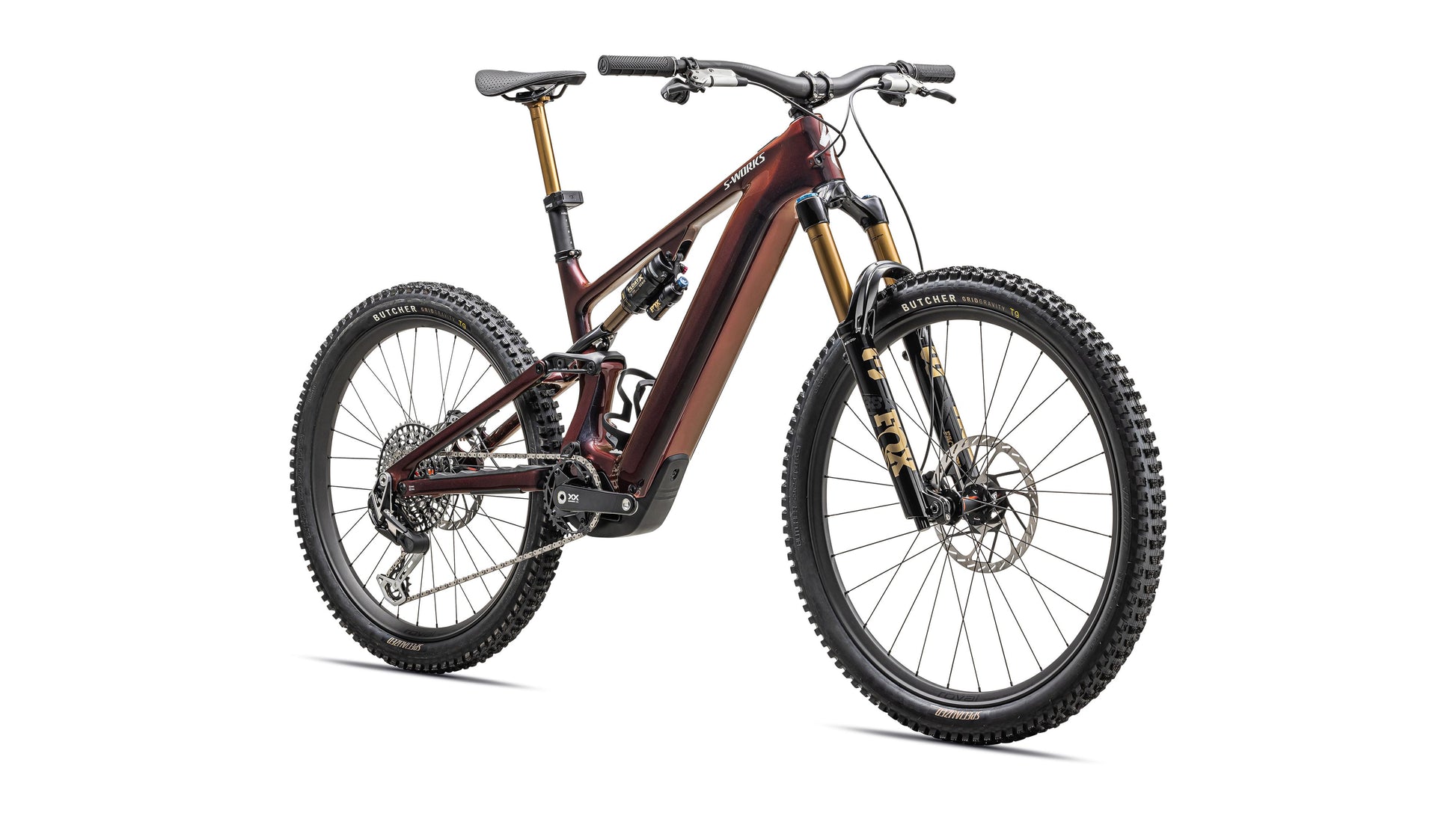

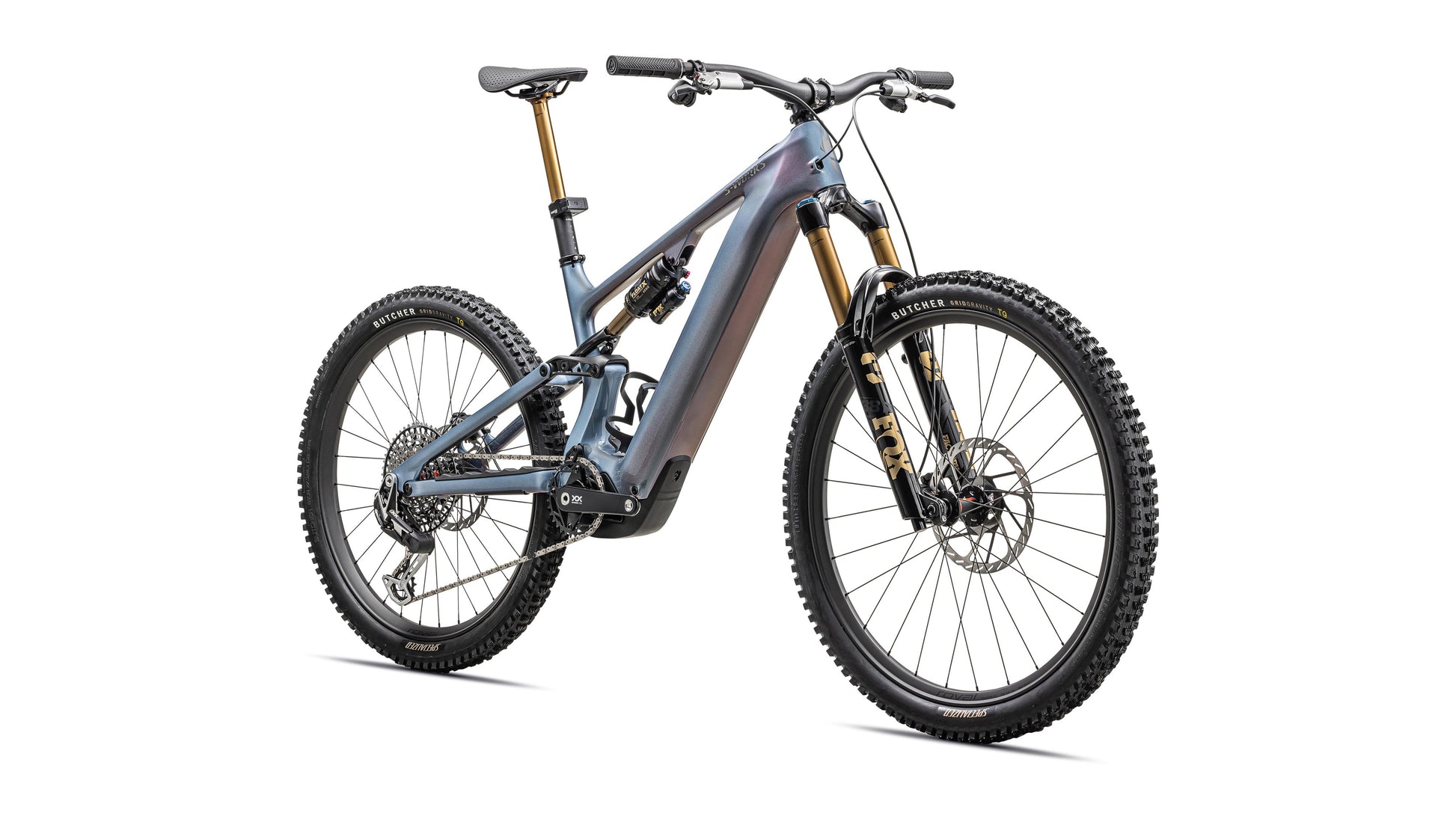

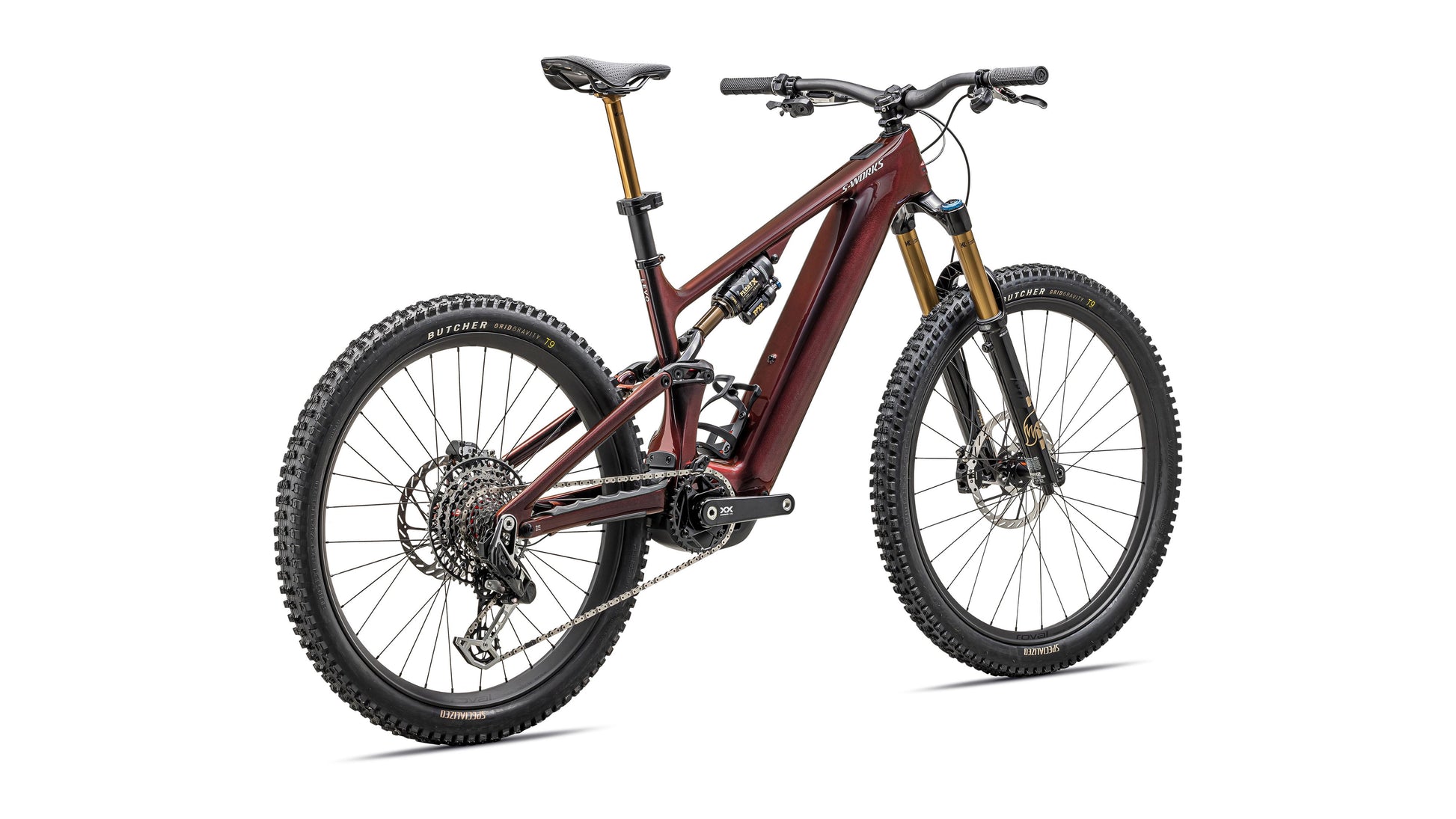

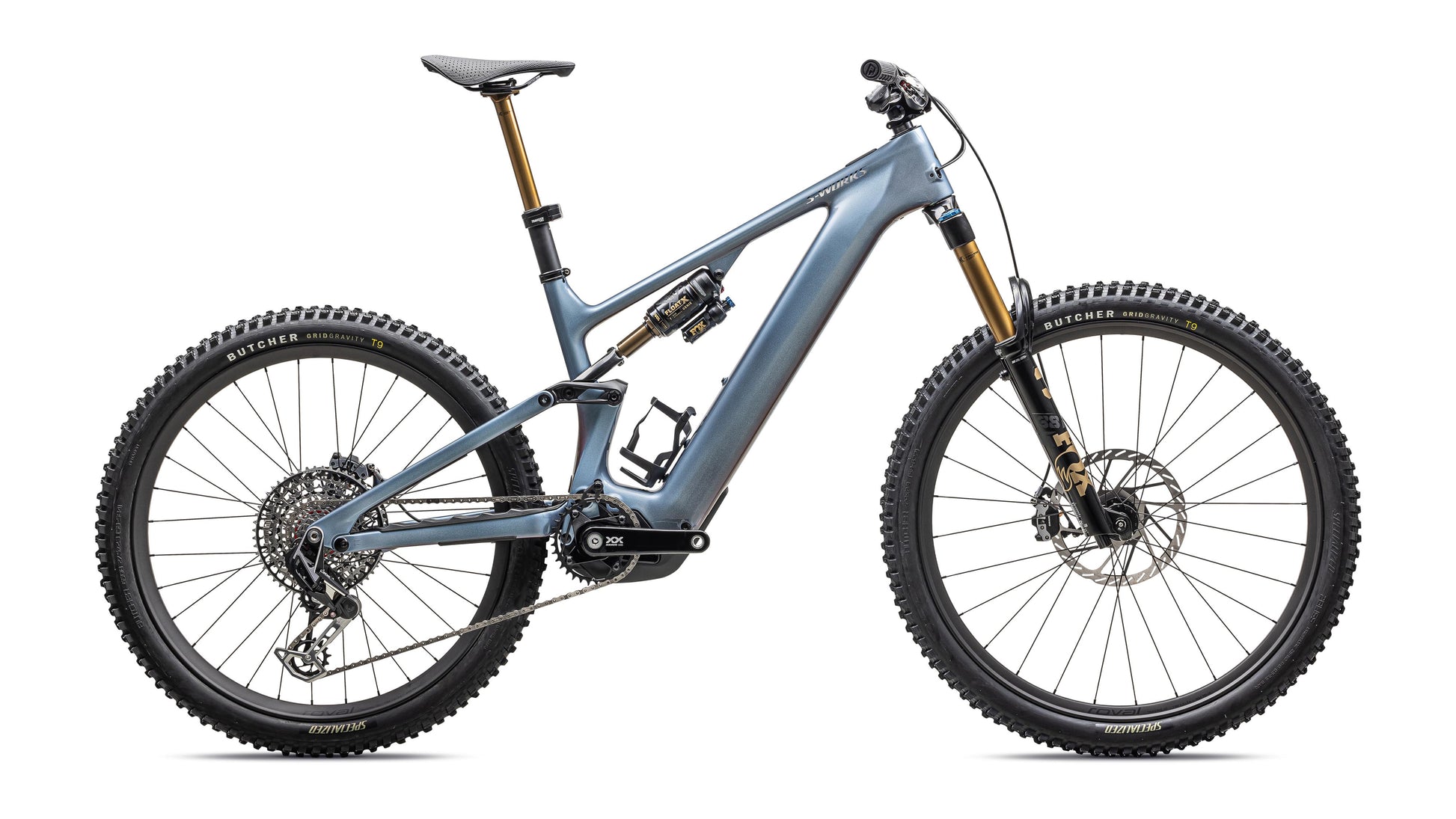

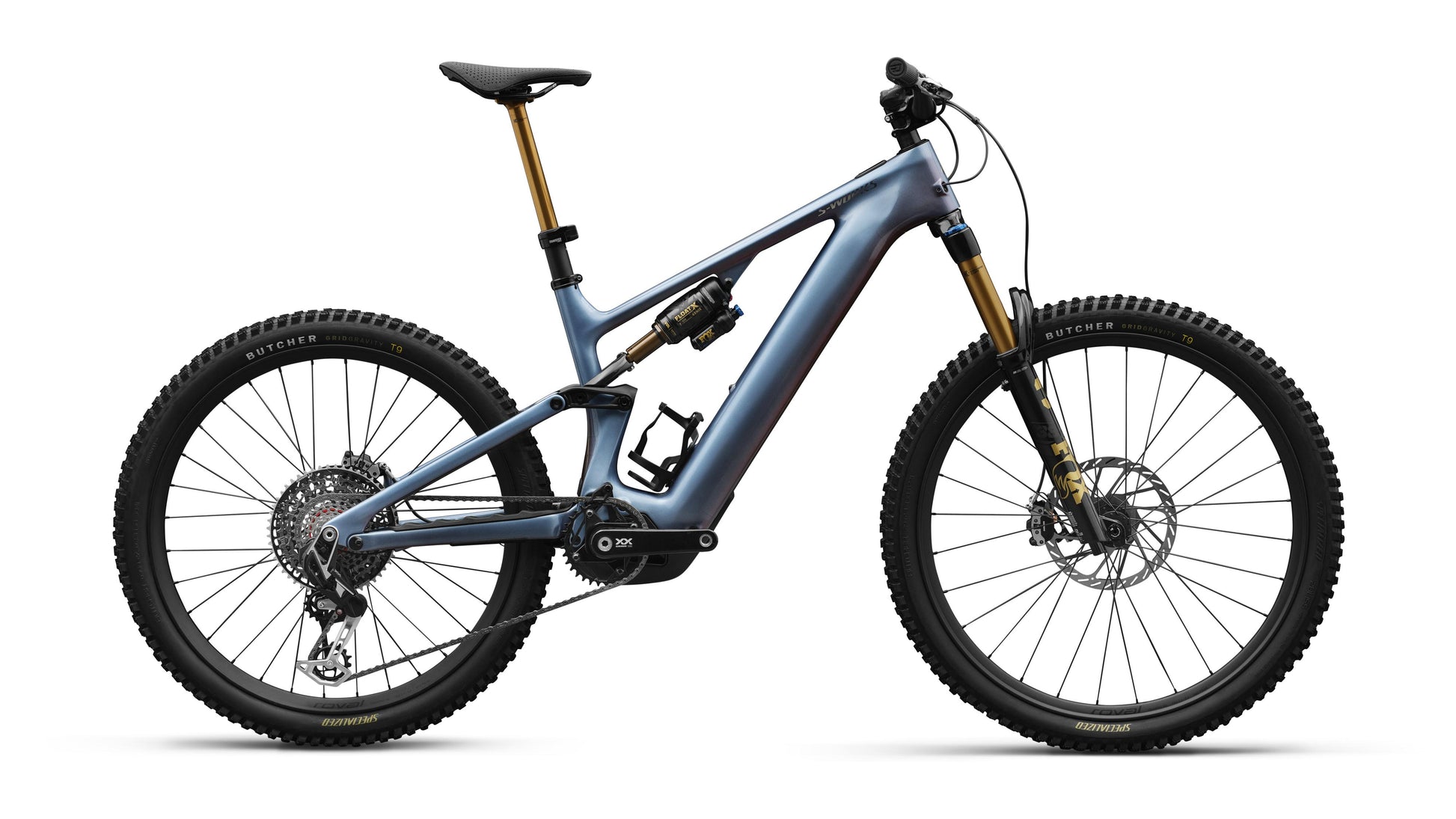

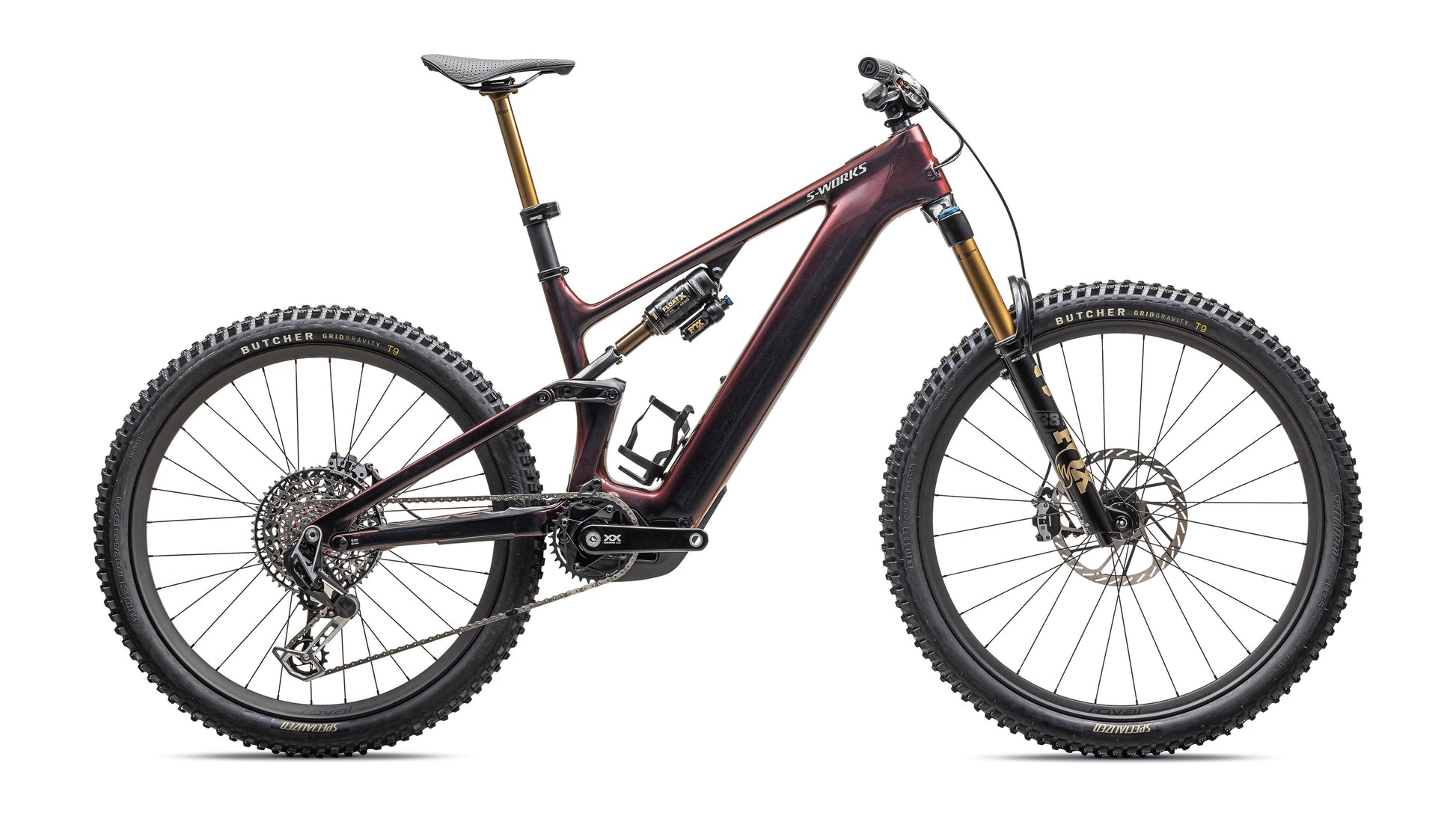

2026 Specialized S-Works Levo 4 Carbon Features
The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
At a Glance
- Use - Full Power E-MTB Trail
- E-System - S-Works 3.1 Motor w/ 720 Watts & 111 Nm, 840 Wh battery, up to 4.75 hour range

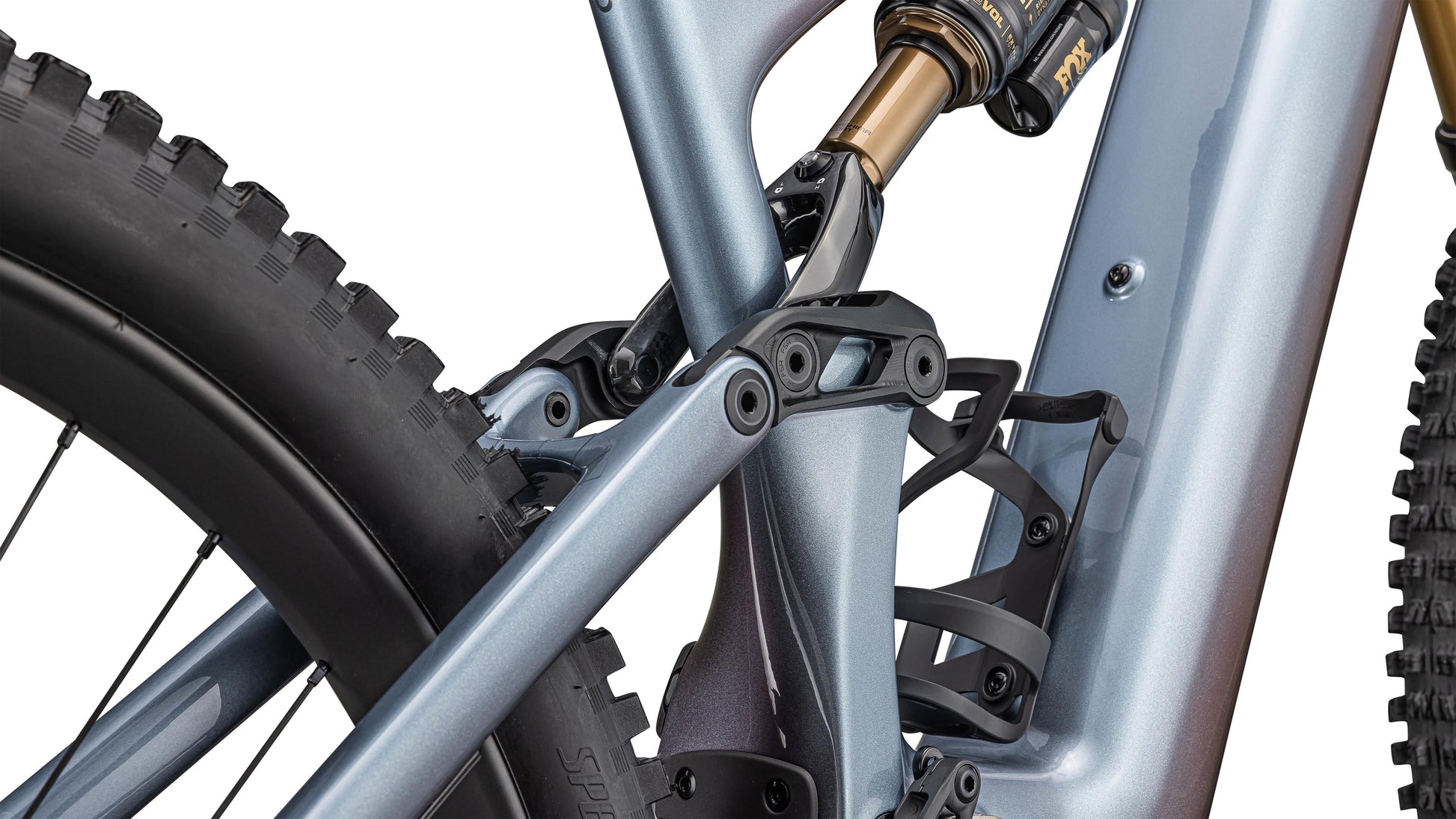

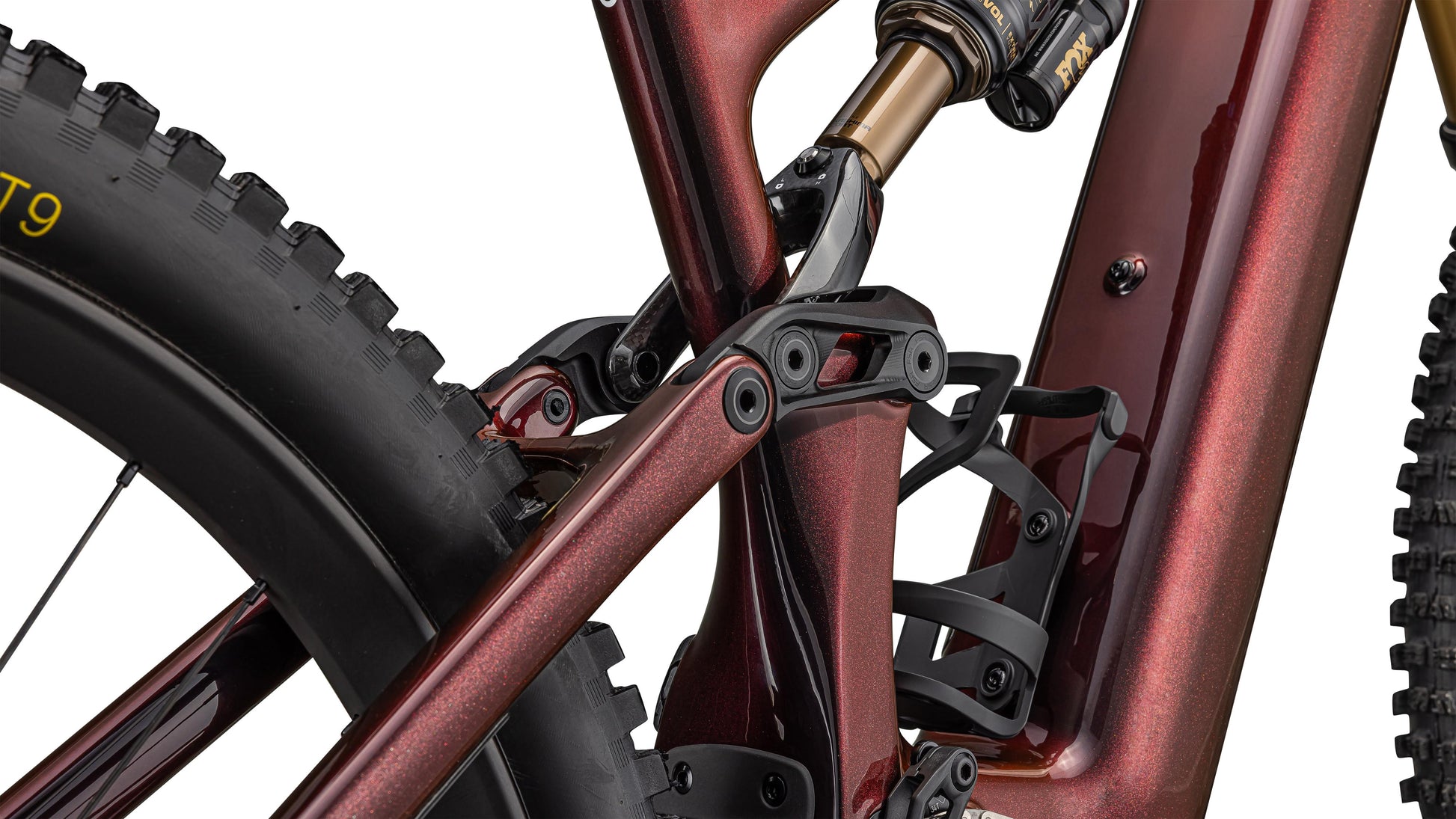

- Frame - FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage
- Suspension - Front: 160mm FOX 38 FACTORY GRIPX2, Rear: 150mm GENIE - FOX FLOAT X Factory
- Drivetrain - SRAM XX Eagle T-Type AXS
- Wheels - Roval Traverse HD Carbon / DT 240 DEG
Component Specifications

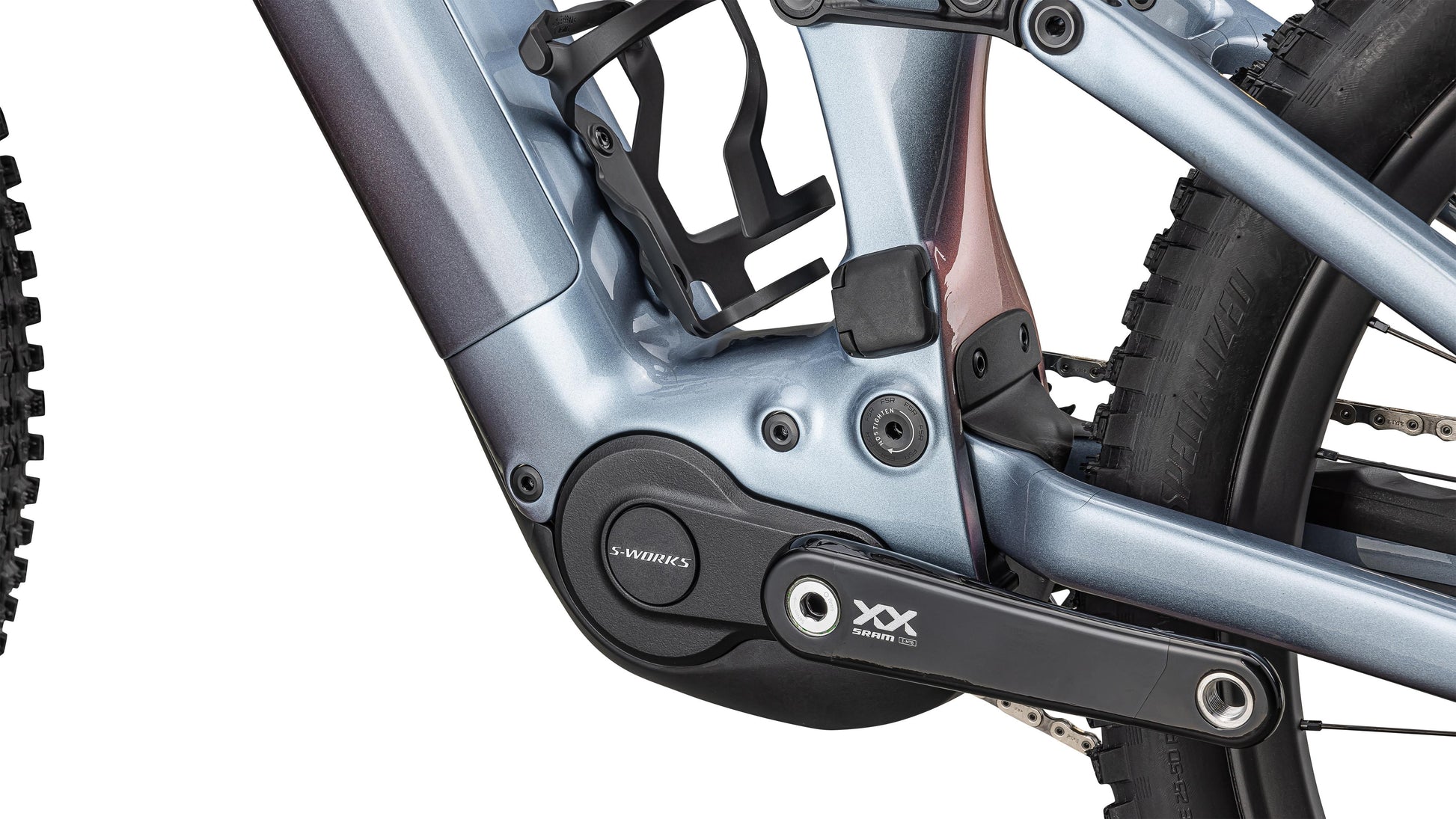

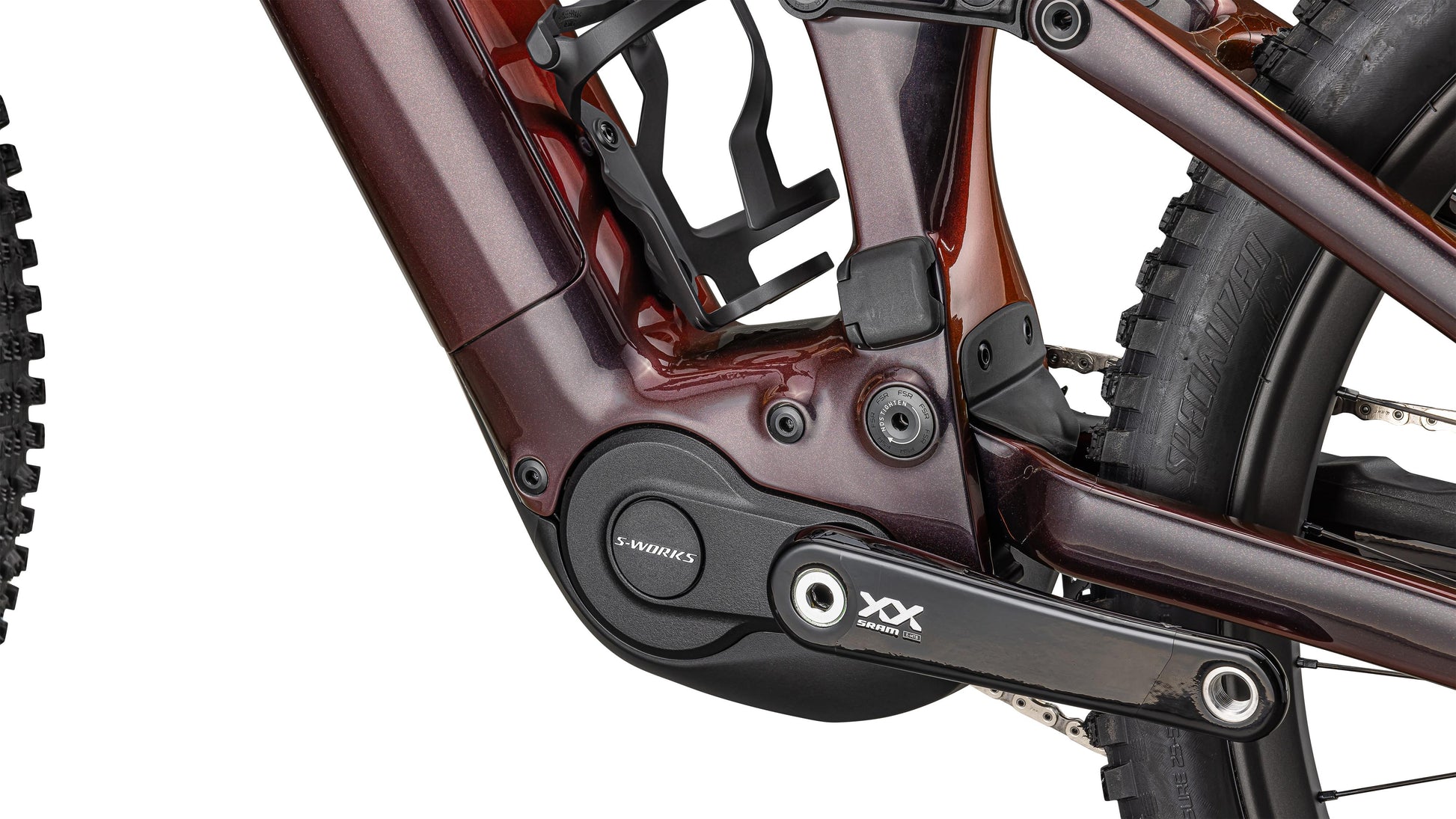

| Motor | Specialized 3.1 S-Works motor, 111Nm power, 720W power |
| Battery | [Specialized Turbo X2 840Wh](https://www.specialized.com/p/4292130) |

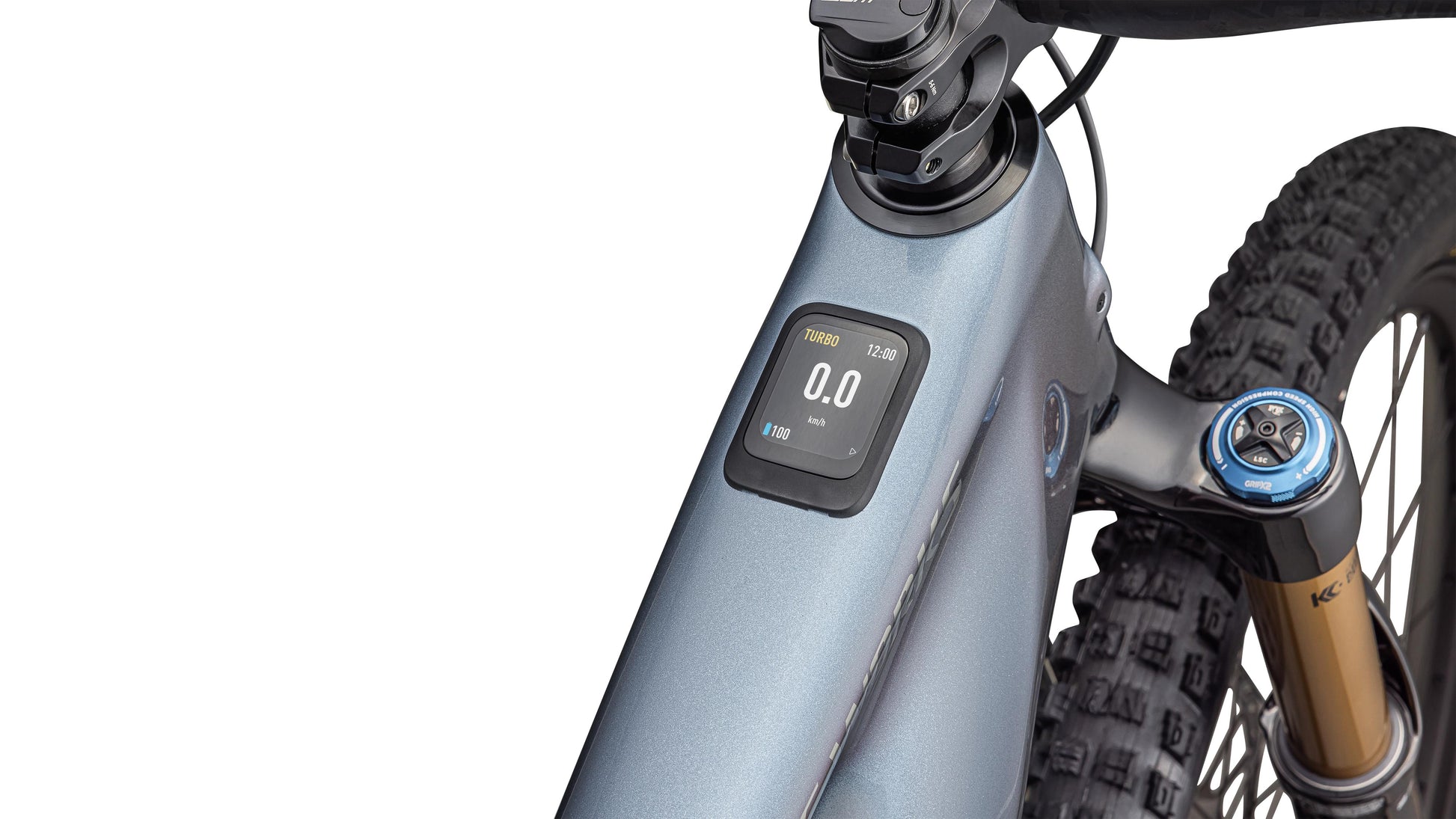

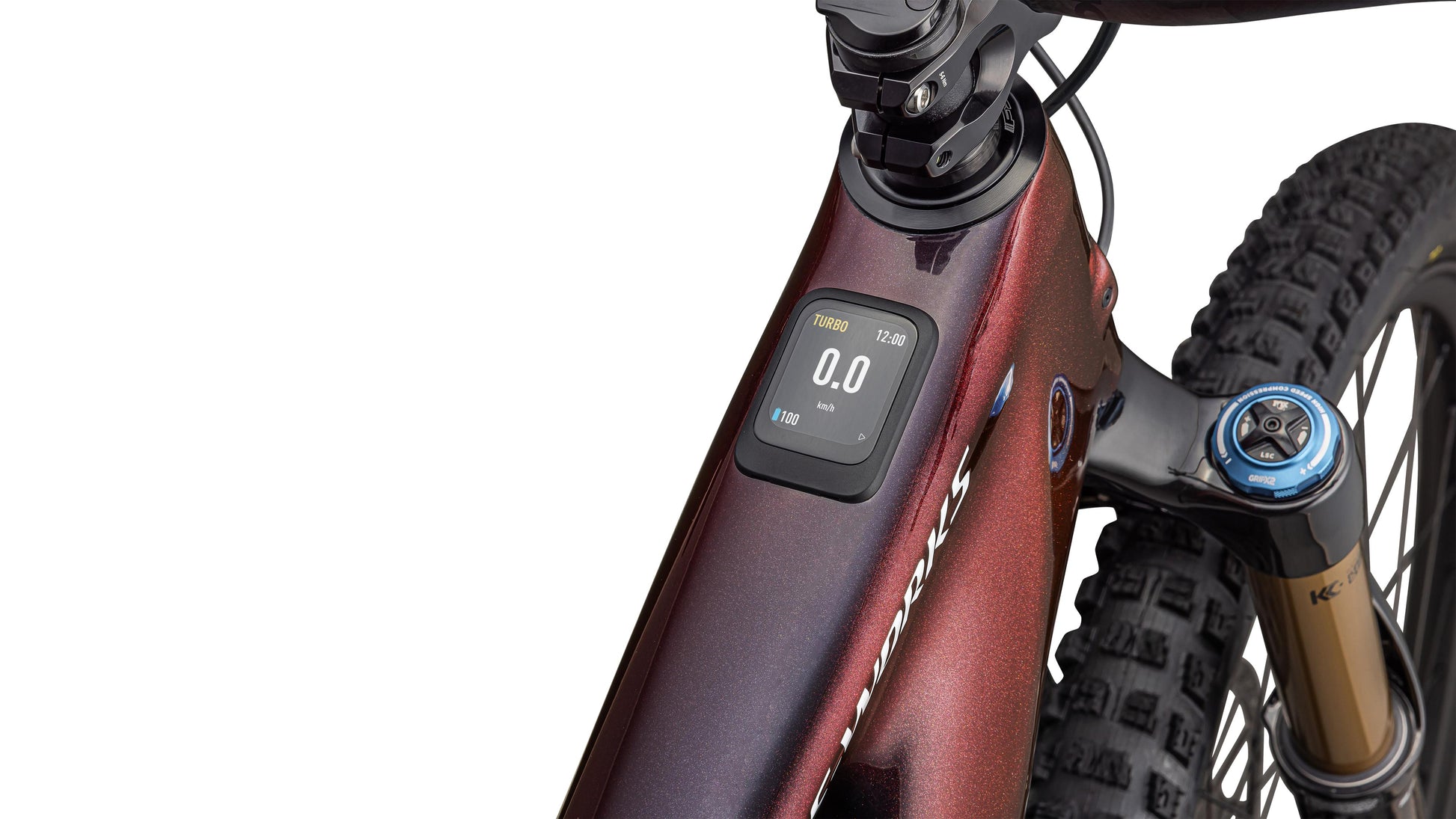

| UI Remote | Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My |
| Charger | Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80% |
| Frame | Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel |

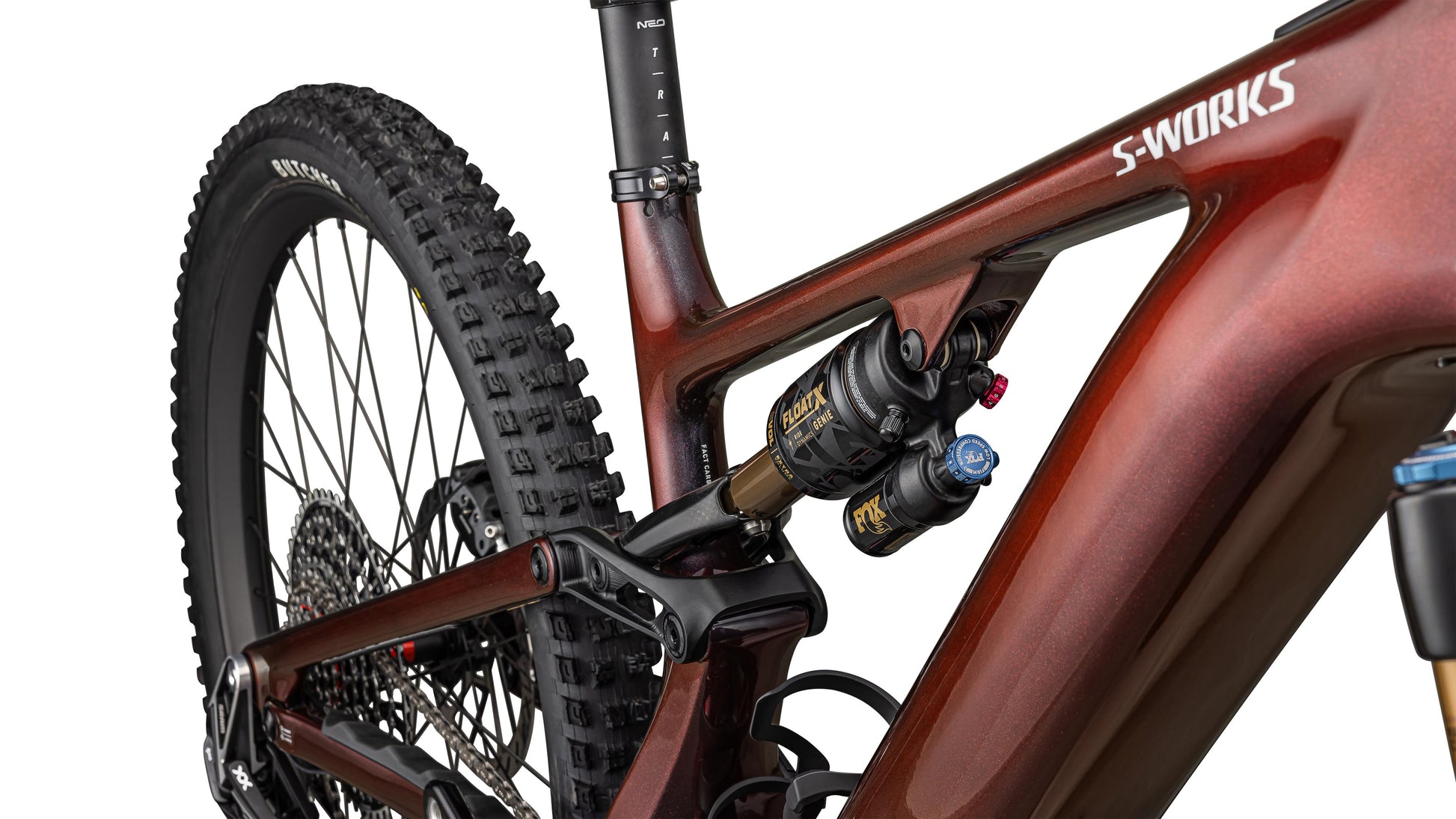

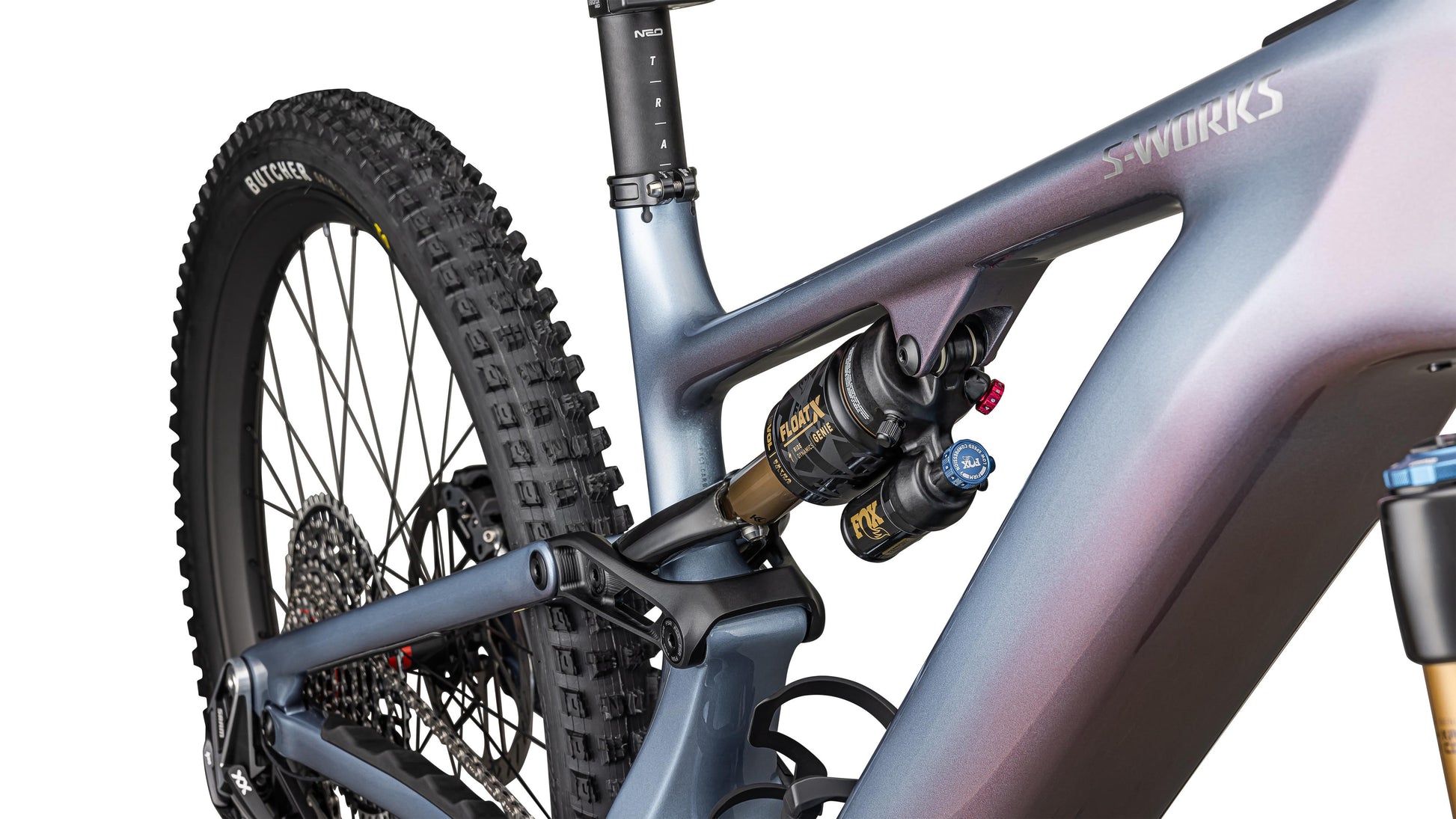

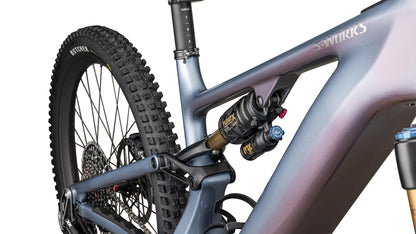

| Rear Shock | Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm |
| Shift Levers | SRAM AXS POD ULTIMATE with DISCRETE CLAMP |
| Rear Derailleur | SRAM XX Eagle Transmission Derailleur |
| Cassette | SRAM XS 1297 T-TYPE 10-52 |
| Chain | SRAM XX, T-TYPE |
| Crankset | SRAM XX Carbon crank, 160mm, ISIS interface |
| Chain Rings | [SRAM 34t T-Type chainring](https://www.specialized.com/p/4274376), 104 BCD, steel |
| Front Tire | [Butcher, GRID GRAVITY Casing](https://www.specialized.com/p/1000234020), GRIPTON® T9 compound, TLR, 29x2.4" |
| Rear Tire | [Butcher, GRID GRAVITY Casing](https://www.specialized.com/p/1000234020), GRIPTON® T9 compound, TLR, 27.5x2.4" |
| Inner Tubes | Standard, Presta Valve |
| Front Brake | SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor |
| Rear Brake | SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor |
| Stem | Industry 9 Mountain stem, 35mm clamp, 40mm length |

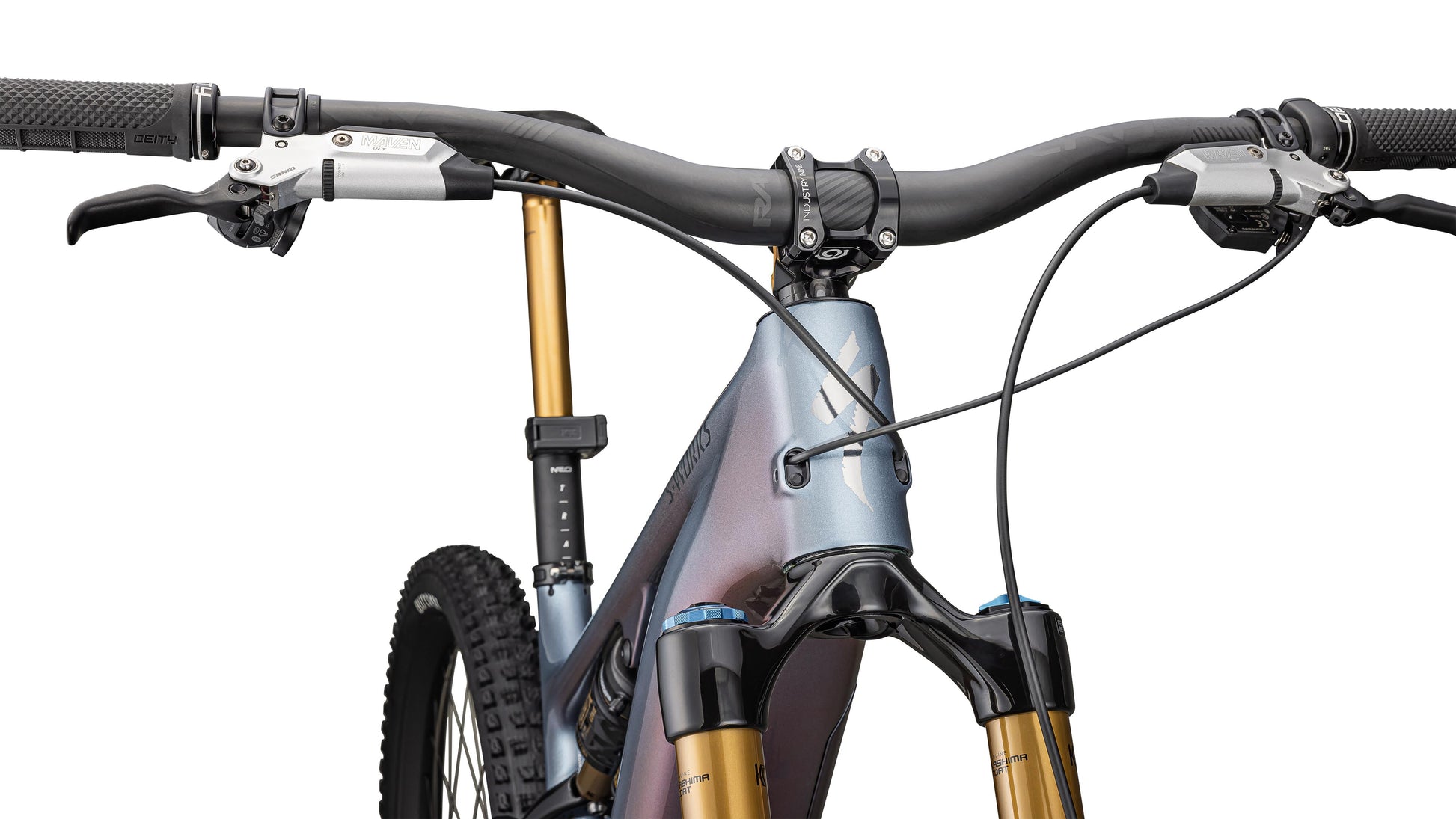

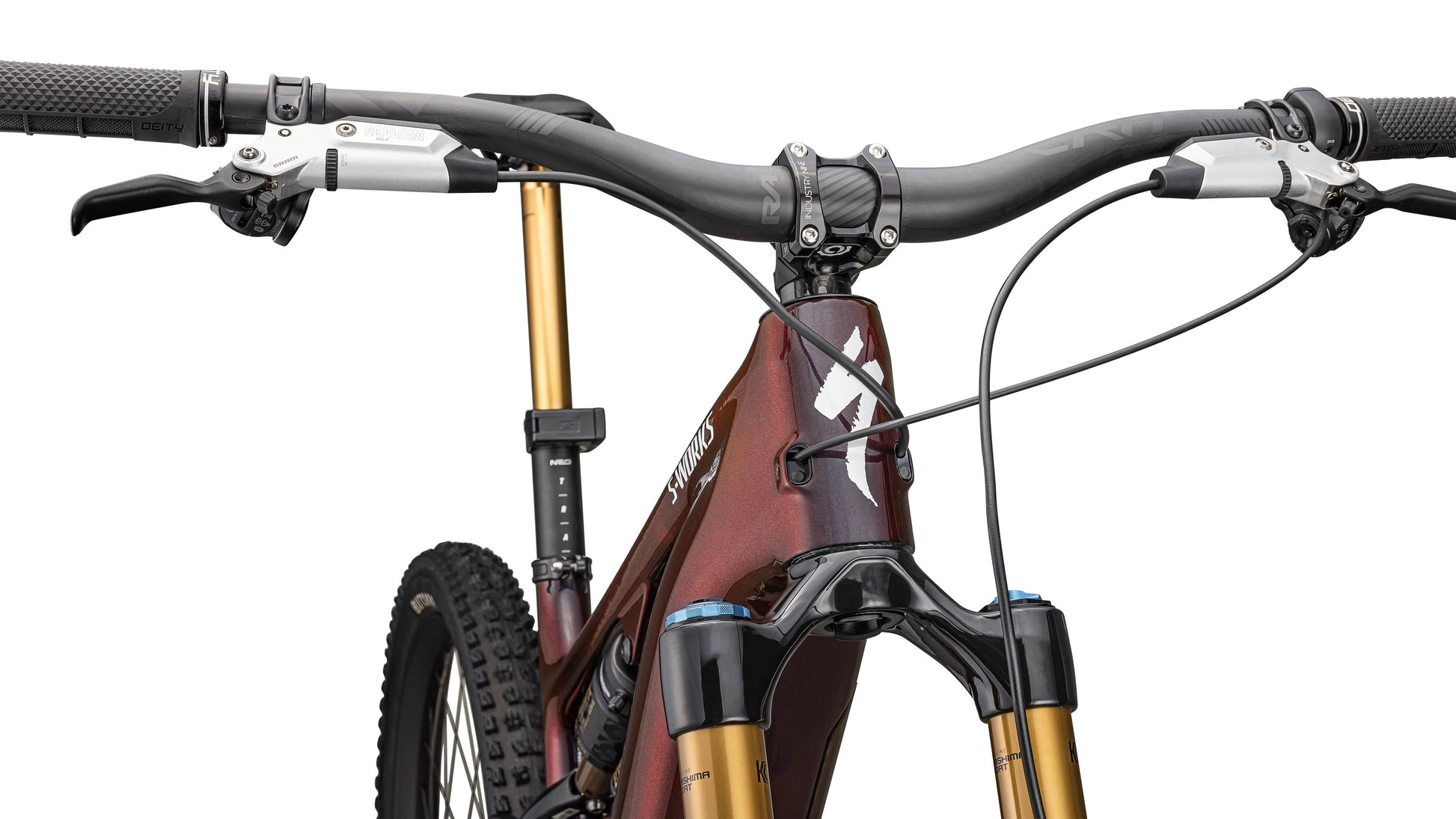

| Handlebars | Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise |
| Grips | Deity Lockjaw Grips |
| Saddle | [Specialized Power Pro Mirror w/hollow Ti Rails](https://www.specialized.com/p/205611), 143mm/155mm |
| Seatpost | FOX Transfer NEO Factory, 34.9, S2: 125mm, S3: 175mm, S4-S6: 200mm |

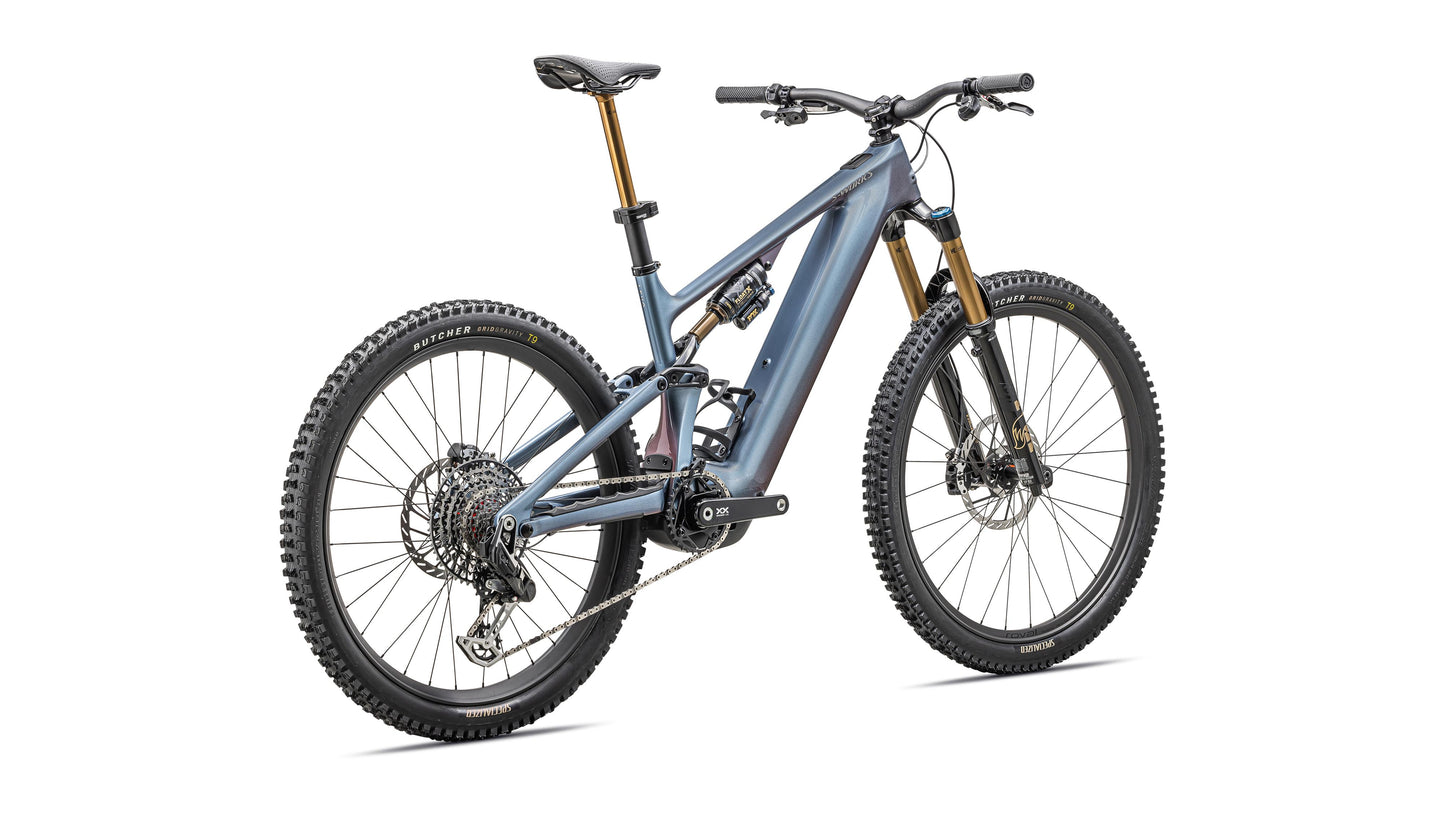

2026 Specialized S-Works Levo 4 Carbon
| Bike/Frame Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack | 618 mm | 626 mm | 638 mm | 652 mm | 667 mm |
| Reach | 435 mm | 455 mm | 480 mm | 505 mm | 535 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1200 mm | 1223 mm | 1254 mm | 1286 mm | 1323 mm |
| Top-tube Length (horizontal) | 578 mm | 599 mm | 627 mm | 655 mm | 689 mm |
| Bike Standover Height | 753 mm | 754 mm | 753 mm | 758 mm | 761 mm |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle | 690 mm | 735 mm | 780 mm | 825 mm | 870 mm |
| Max Seatpost Insertion | 274 mm | 289 mm | 313 mm | 337 mm | 357 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Headtube Length | 95 mm | 103 mm | 117 mm | 132 mm | 149 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| BB Drop | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Fork Length (full) | 577 mm | 577 mm | 577 mm | 577 mm | 577 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 765 mm | 789 mm | 820 mm | 851 mm | 888 mm |
Size Guide: 2026 Specialized S-Works Levo 4 Carbon
