2026 Specialized Stumpjumper 15 EVO Expert AXS Features
Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you?
Check, check, check.
BREAKTHROUGH CAPABILITY: GENIE Shock Technology combines a poppy, playful ride with a bottomless DH feel.
ULTIMATE CONTROL: Measurably better traction than “Bike of the Year” Stumpjumper EVO.
UNMATCHED PERSONALIZATION: Six-way geometry adjustment, mixed wheel or 29”; tunable spring curve, and more.
GENIE—The Magic Carpet Ride: The biggest innovation on the Stumpjumper 15 is GENIE. This patent-pending air spring technology that we invented grants every trail rider’s three wishes: the feel and control of a coil spring, better bottom-out prevention than a standard air spring, and a tunable “platform” for a playful feel.
ILLUMINATING GENIE: GENIE combines the control-enhancing linear spring rate of a coil spring through the “bump zone” with the progressive spring rate of an air spring at the end of the stroke to avoid bottom-outs. Truly, it's the best of both worlds – coil and air – with extra tunability. Say goodbye to compromises and hello to the future of riding.
WHAT BUMP?: With 16.3% better bump force management than a traditional air-sprung shock, GENIE makes the Stumpy 15 ride like a bike with more travel. For example, the Stumpjumper 15 (with 145 mm rear wheel travel) and our Enduro (170 mm travel) both use 101 mm of travel to absorb a 1080 N bump force.
TRACTION GALORE: Extensive field testing proves that Stumpjumper 15 with GENIE delivers 57% better traction than a standard air-sprung shock because GENIE technology gives you supple, coil-like performance, which keeps the wheel in contact with the ground a greater percent of the time than a typical air spring would.
BYE; BYE, BOTTOM-OUTS: 39% fewer bottom-outs than a standard air spring. During big hit events, you benefit from the rising rate in the last 30% of the GENIE stroke. Because of this two-stage, pronounced rising rate, GENIE reduces the frequency and severity of bottom-outs.
HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.
RIDE YOUR WAY: The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket height can be fine-tuned for stability or clearance.
WHEEL CHOICE: With our aftermarket shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.
CARRY IT ALL: SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. It’s the smoothest operating, most weather-resistant, flush-mounted system ever.
MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we've got you covered.
At a Glance
- Lightweight FACT 11m carbon chassis and rear-end
- Ride Dynamics tuned FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech. Highly adjustable 2-position open and firm mode with the 3-position open mode compression adjuster
- Supportive and tuneable FOX FLOAT 36 Performance Elite fork with GRIP X2 damper
- Strong and trusted Roval Traverse wheels, DT Swiss 370 hub
- Smooth and precise SRAM GX Eagle T-Type AXS drivetrain
- Powerful and reliable SRAM Maven Silver 4-piston brakes
- Adjustable travel with PNW LOAM dropper post
- Lifetime replacement of suspension pivot bearings to the original owner
- Compatible with electronic drivetrains only
Component Specifications
| Frame | FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm Kabolt axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel |

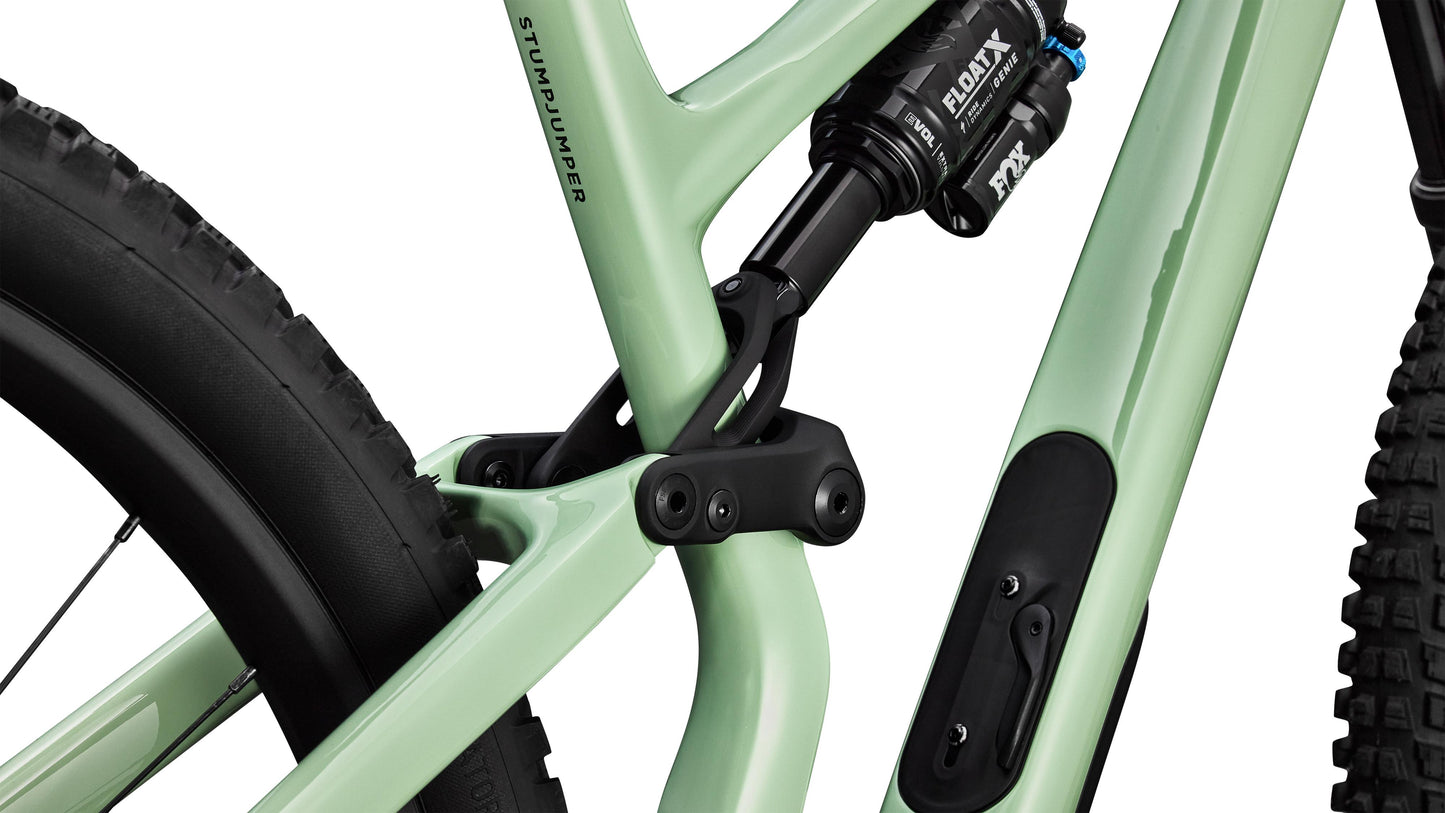

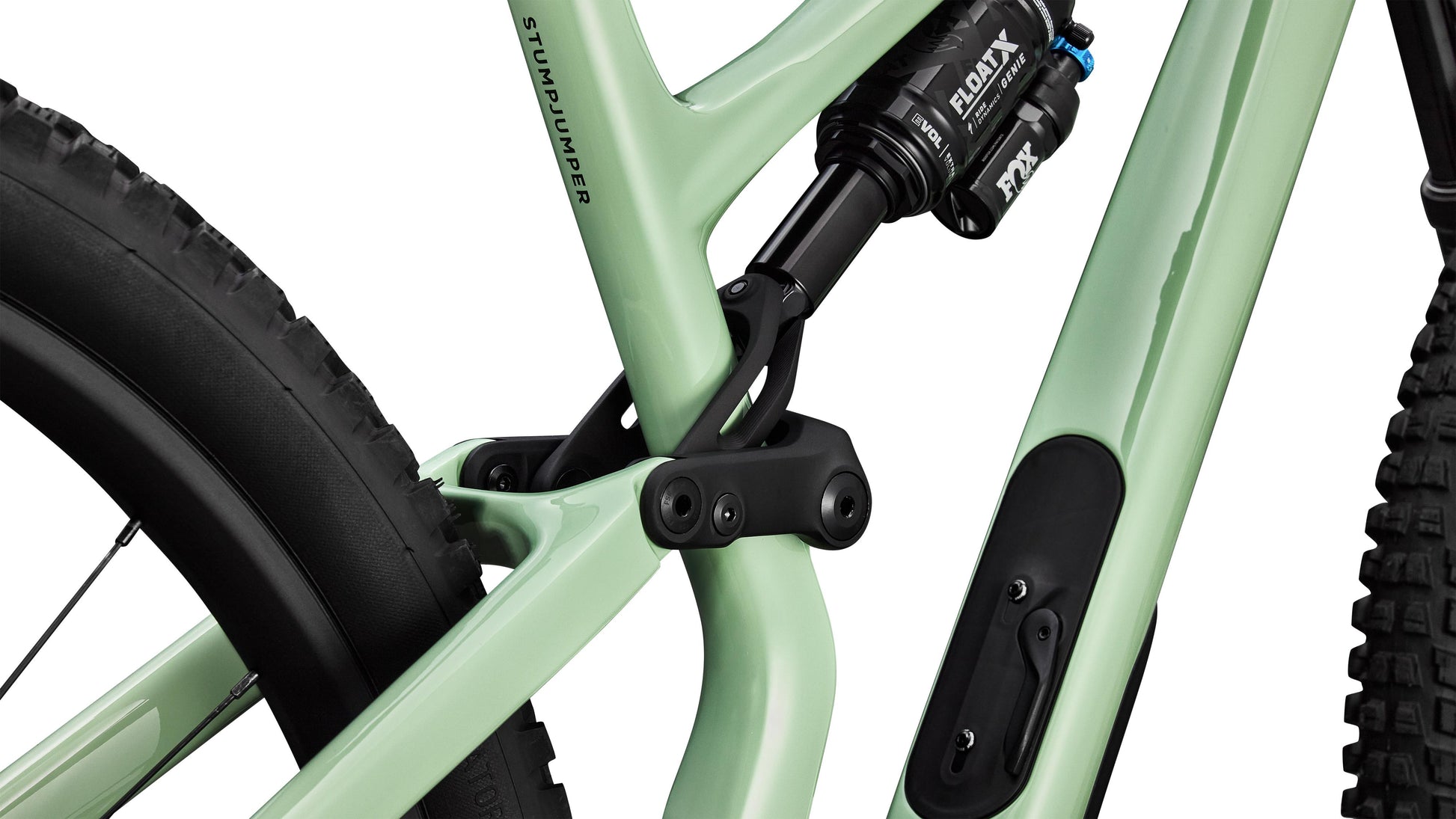

| Rear Shock | FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm |
| Shift Levers | SRAM AXS POD Controller w/discrete clamp |
| Rear Derailleur | SRAM GX Eagle AXS Transmission |
| Cassette | SRAM XG-1275 T-Type 12-Speed 10-52 |
| Chain | SRAM GX Eagle Transmission 12-Speed Flattop Chain |
| Crankset | SRAM GX Eagle Crankset, S1-S3:165mm, S4-S6:170mm, 32T ring, Integrated Guard, 55mm Chainline |
| Bottom Bracket | SRAM DUB Threaded Wide |
| Front Tire | Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4 |
| Rear Tire | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4" |
| Inner Tubes | Standard, Presta Valve |
| Front Brake | SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm Centerline Rotor |
| Rear Brake | SRAM Maven Silver, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 200mm Centerline Rotor |
| Stem | Alloy Trail Stem, 35mm bar bore |

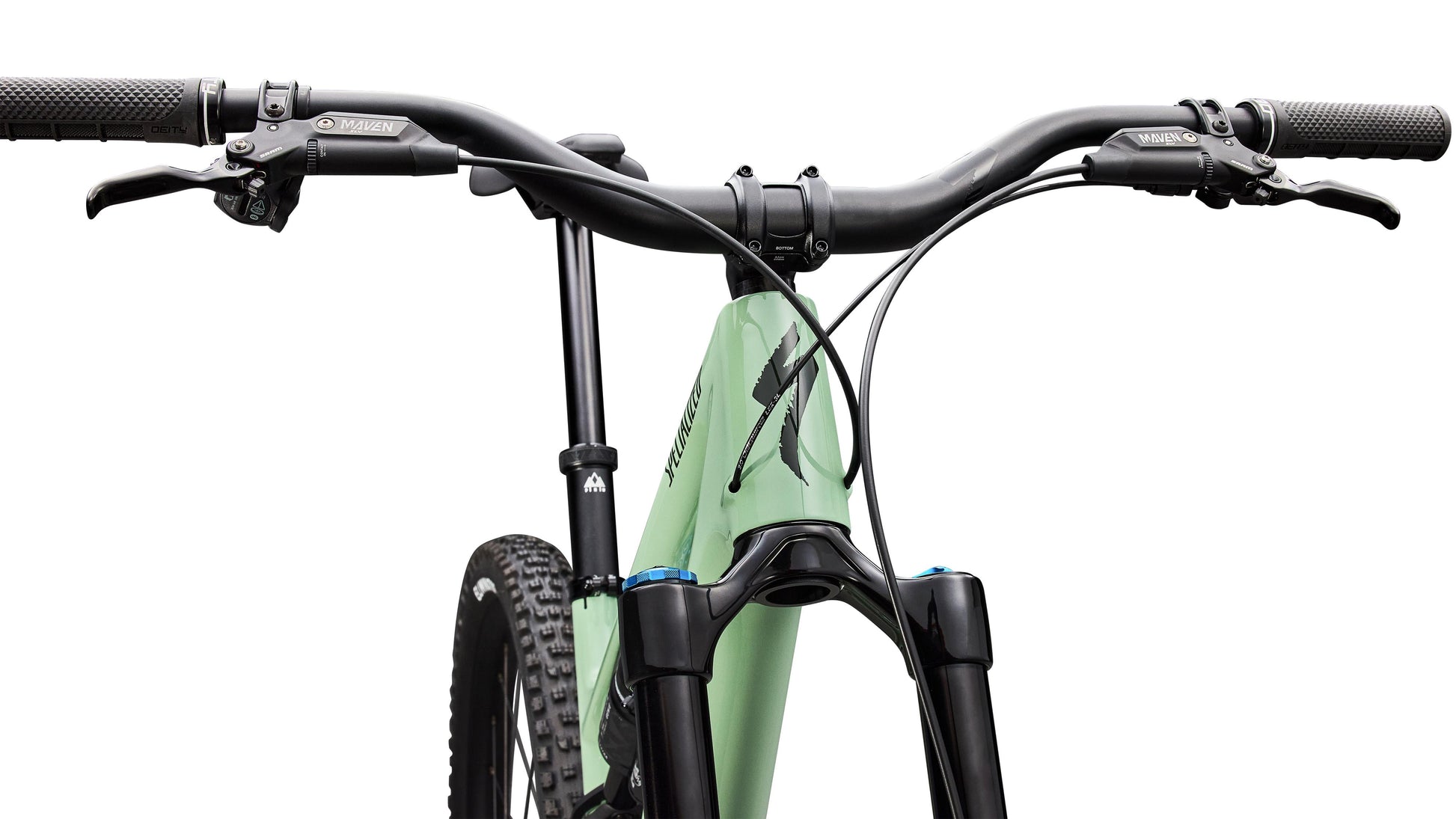

| Handlebars | Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise |
| Grips | Deity Lockjaw Grips |
| Saddle | Bridge Comp, Hollow Cr-mo rails S1-S2: 155mm, S3-S6: 143mm |
| Seatpost | PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 175mm, S4-S5: 200mm, S6: 225mm |
2026 Specialized Stumpjumper 15 EVO Expert AXS
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack | 611 mm | 621 mm | 630 mm | 644 mm | 658 mm | 671 mm |
| Reach | 400 mm | 420 mm | 445 mm | 470 mm | 495 mm | 525 mm |
| Chainstay Length | 430 mm | 432 mm | 435 mm | 435 mm | 445 mm | 445 mm |
| Wheelbase | 1153 mm | 1186 mm | 1217 mm | 1249 mm | 1290 mm | 1327 mm |
| Top-tube Length (horizontal) | 542 mm | 574 mm | 596 mm | 625 mm | 649 mm | 678 mm |
| Bike Standover Height | 738 mm | 751 mm | 745 mm | 745 mm | 745 mm | 751 mm |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 77.7° | 76.5° | 76.5° | 76° | 76° | 76° |
| Saddle Height for Effective ST Angle | 645 mm | 690 mm | 735 mm | 780 mm | 825 mm | 870 mm |
| Max Seatpost Insertion | 245 mm | 245 mm | 255 mm | 255 mm | 285 mm | 285 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Headtube Length | 95 mm | 100 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Headtube Angle | 64° | 64° | 64° | 64° | 64° | 64° |
| BB Height | 337 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| BB Drop | 38 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 133 mm | 134 mm | 134 mm | 134 mm | 134 mm | 134 mm |
| Fork Length (full) | 561 mm | 573 mm | 573 mm | 573 mm | 573 mm | 573 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 724 mm | 755 mm | 785 mm | 816 mm | 848 mm | 884 mm |
Size Guide: 2026 Specialized Stumpjumper 15 EVO Expert AXS
