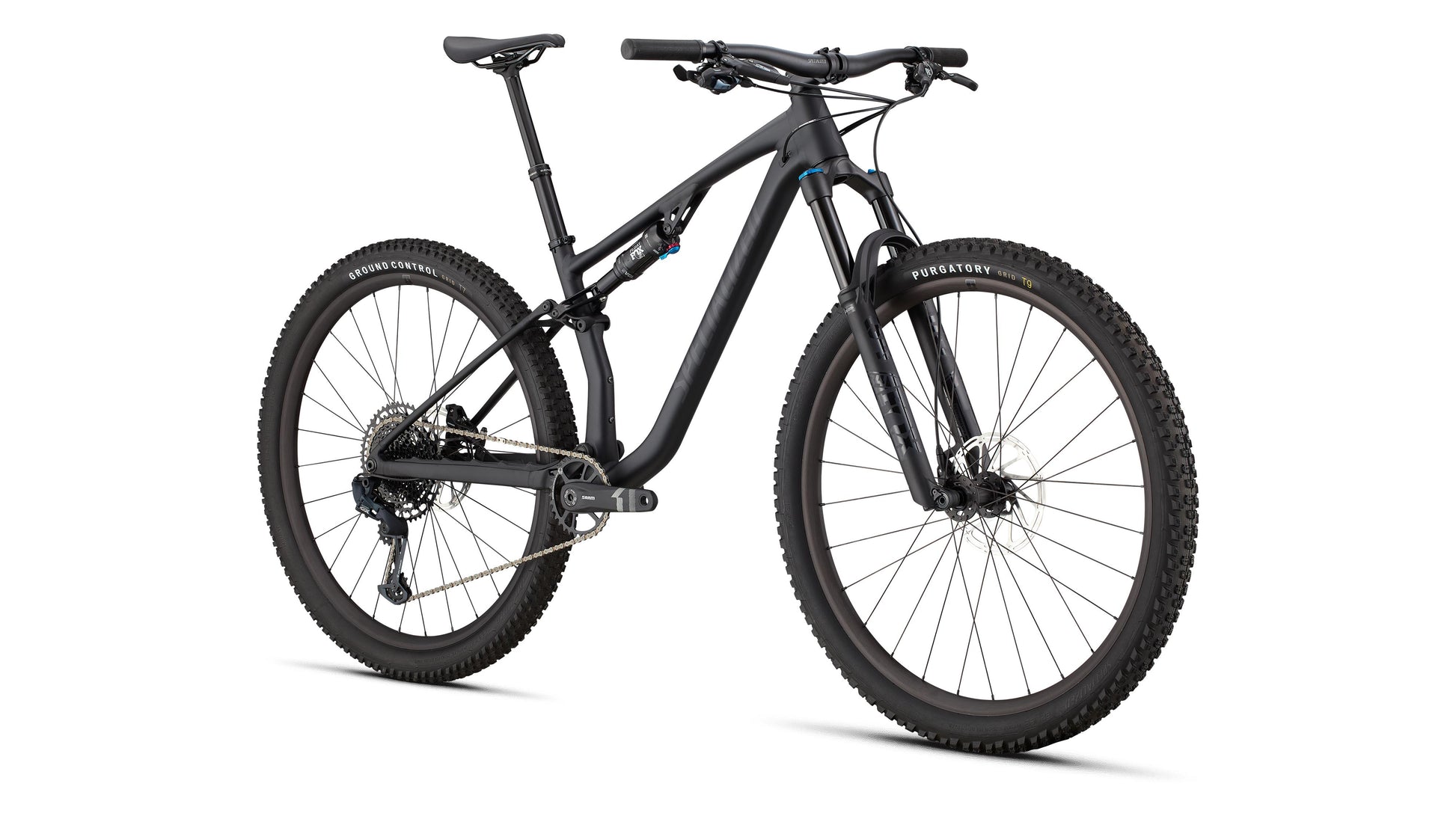

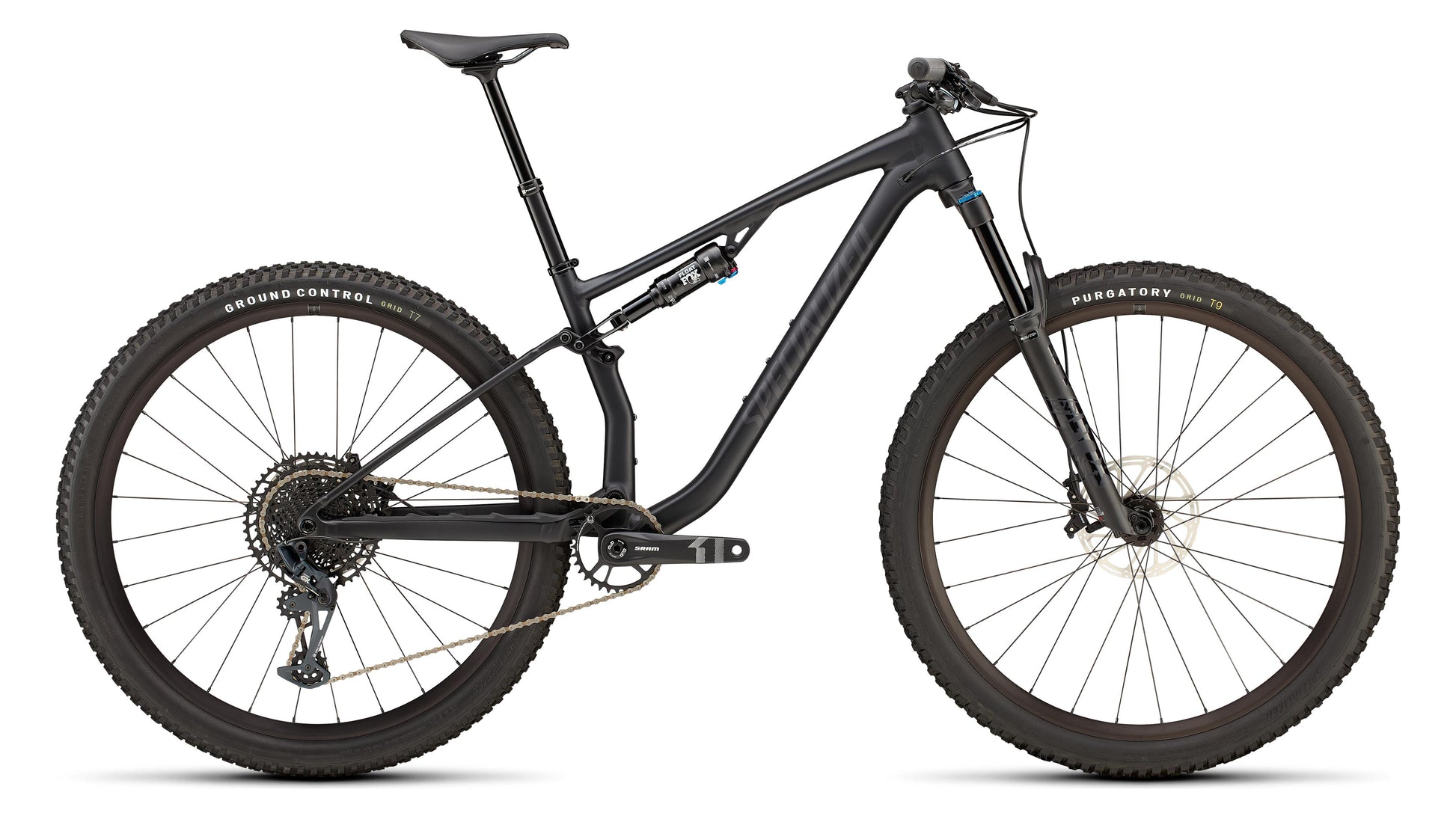

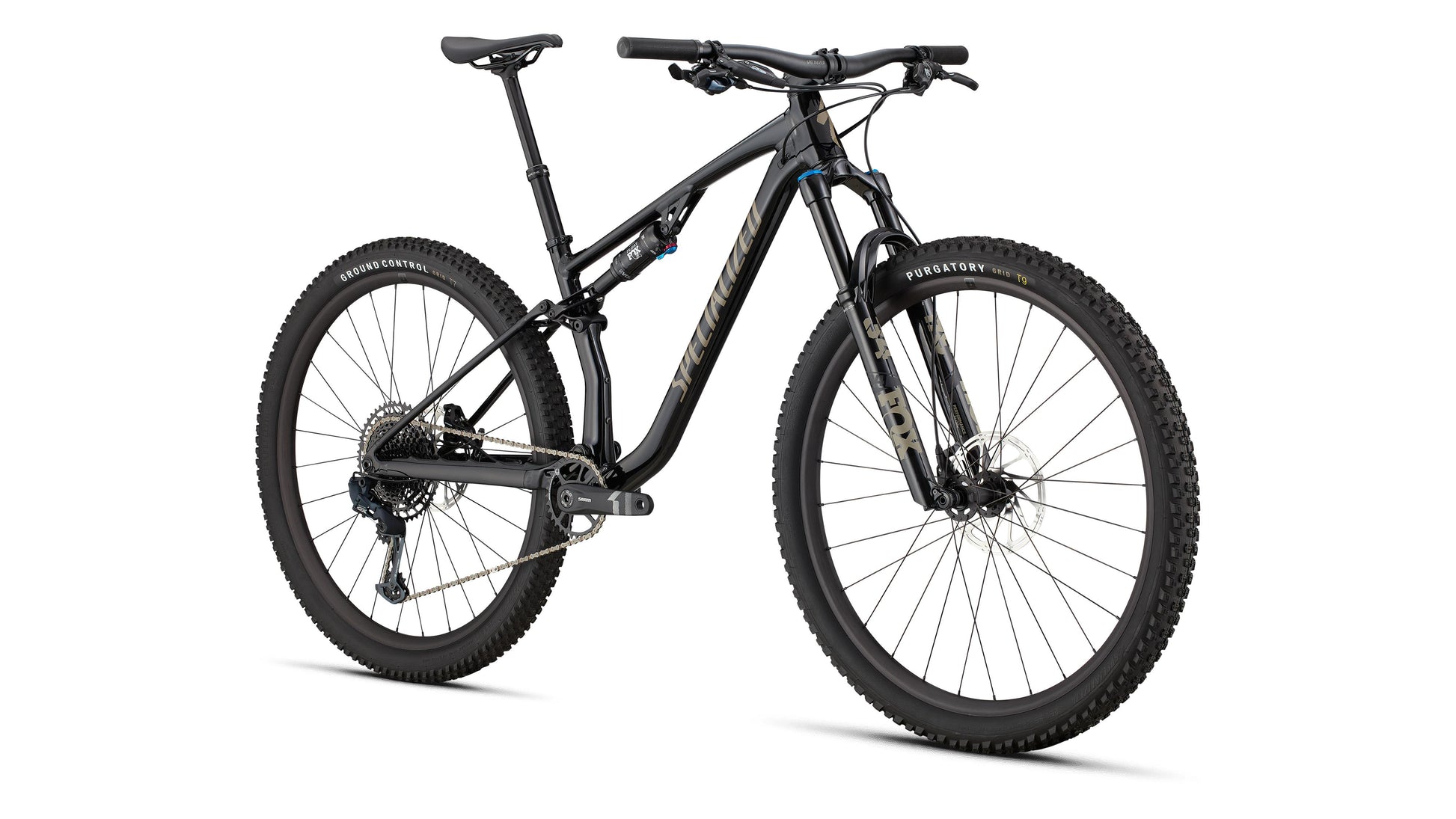

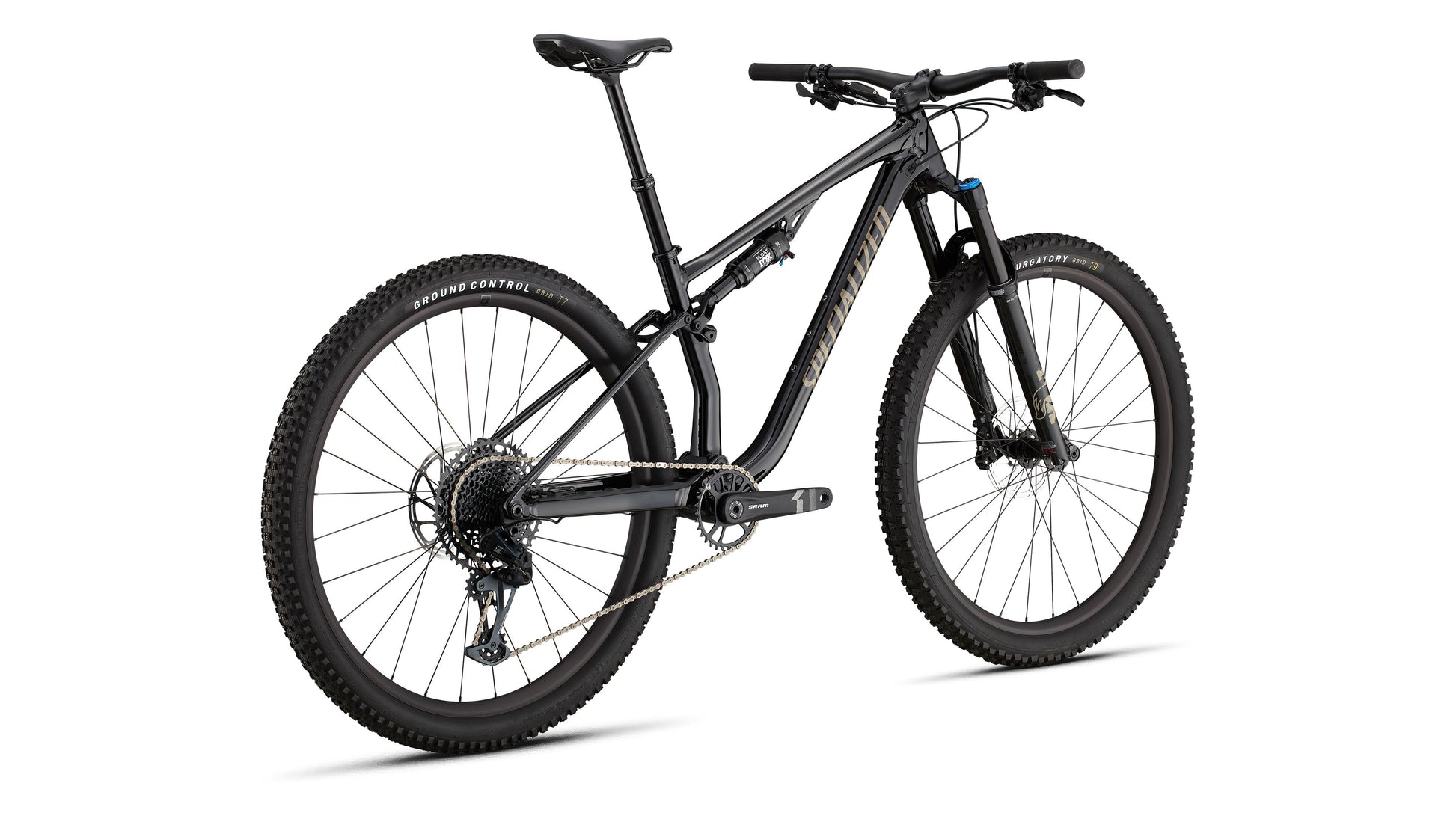

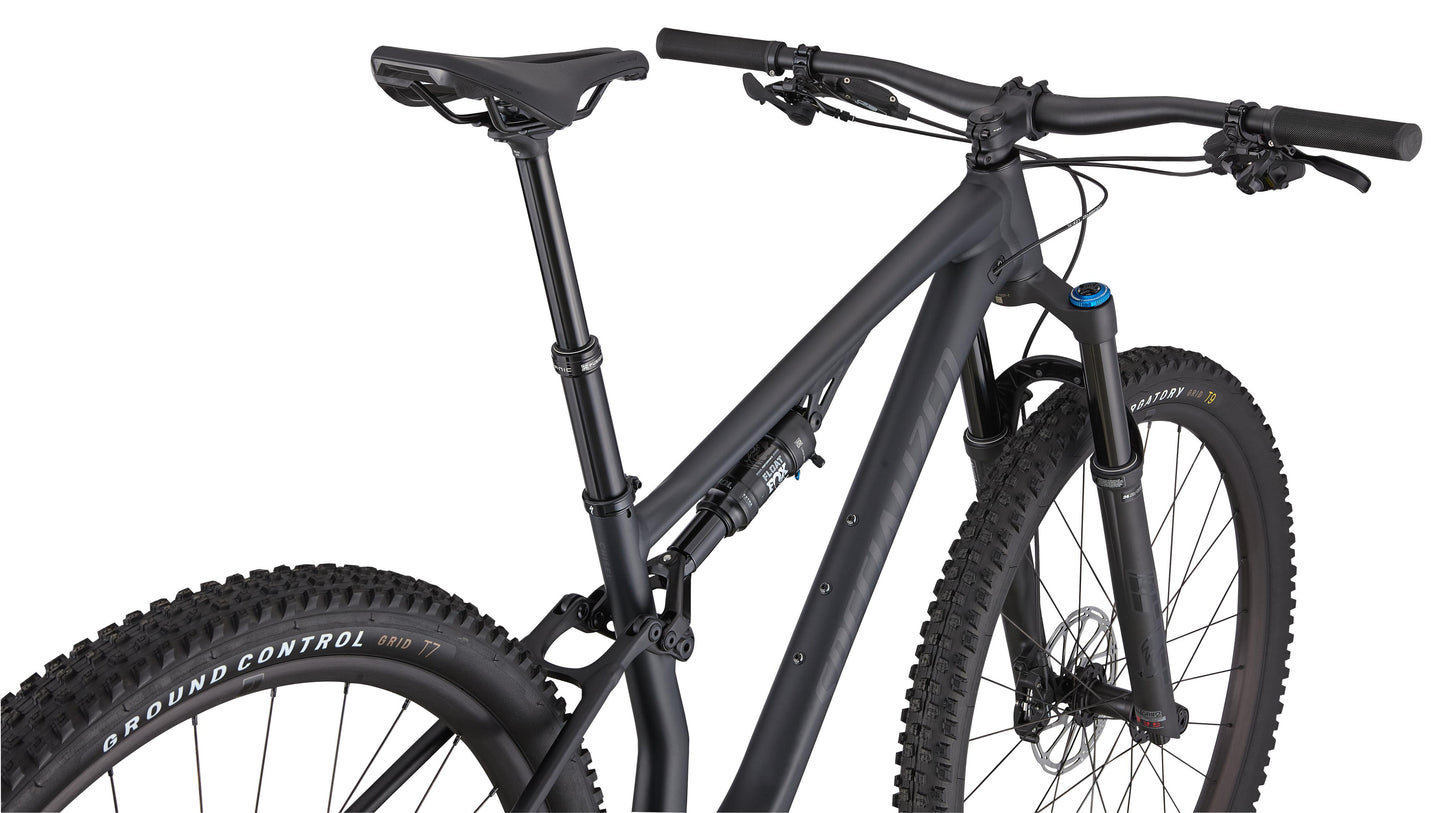

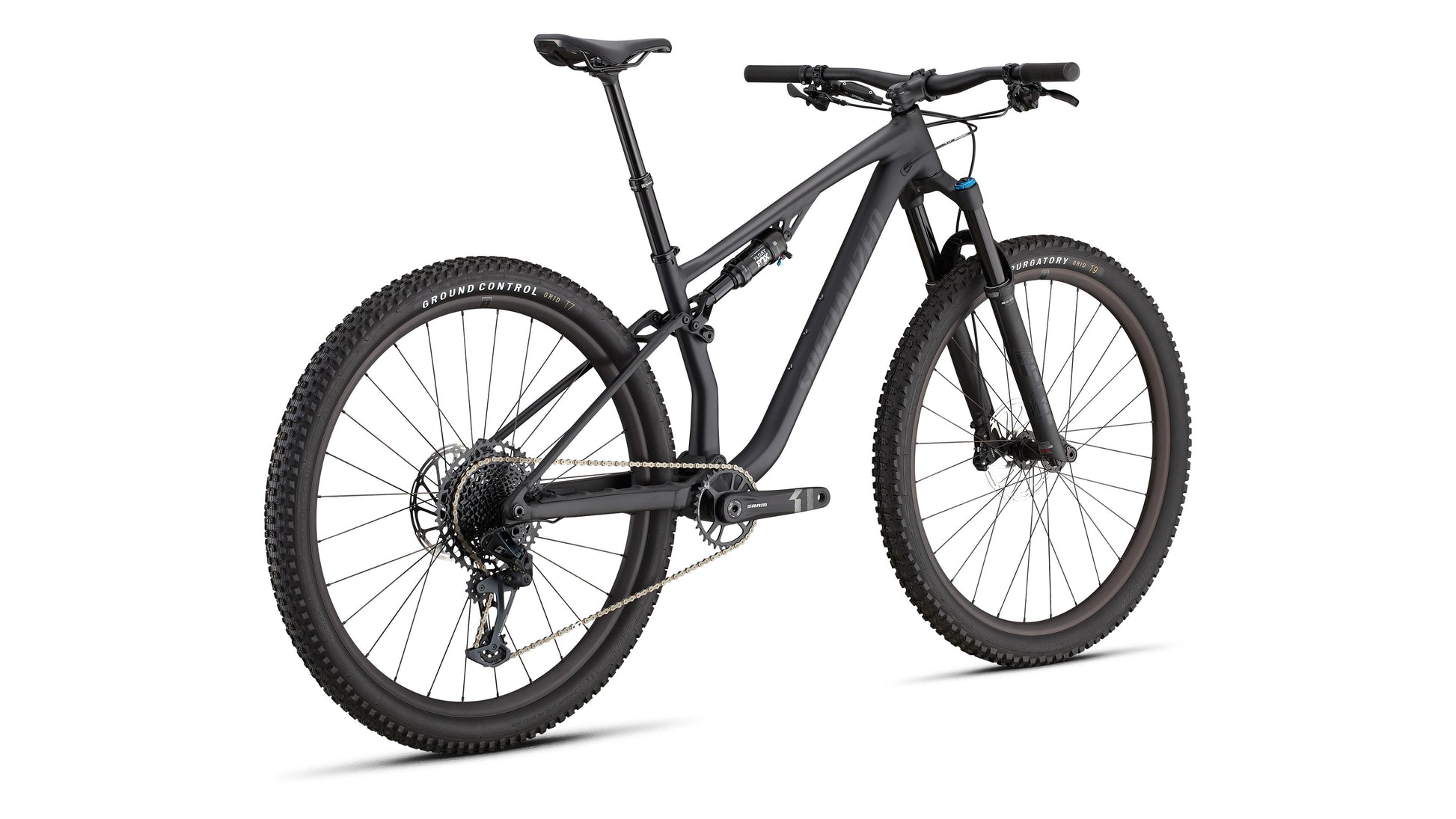

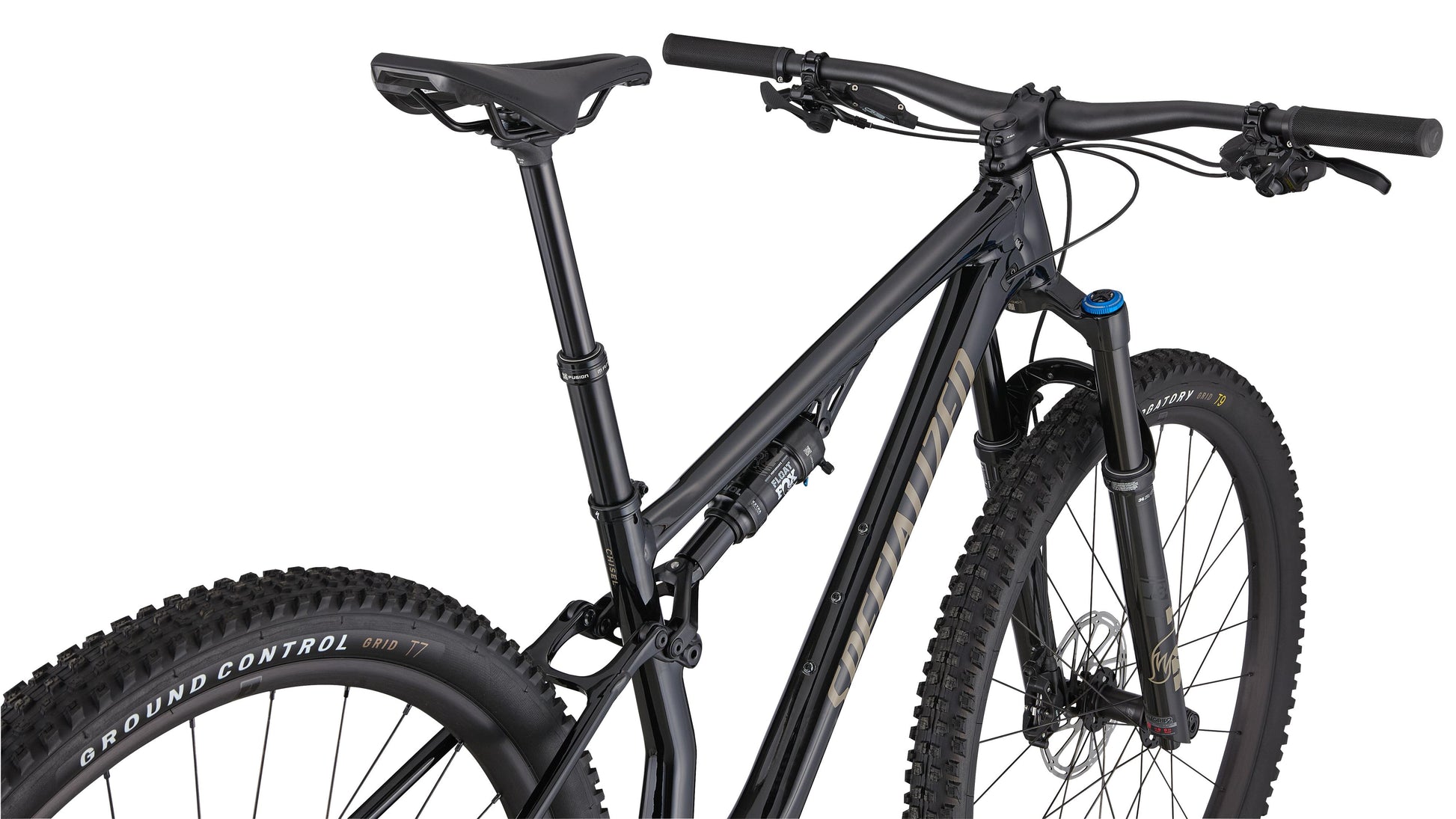

2025 Specialized Chisel Comp EVO Features
The Lightest, Fastest Alloy Full Suspension Bike in the World gets a full makeover with the ultra-capable EVO build. Still 18.4% lighter than the closest competitor and sharing geometry and kinematics from our downcountry-hungry Epic 8 EVO, the all-new Chisel Comp EVO delivers the performance you can feel and is spec’d for the ultimate downcountry experience.
SPEED METAL: With D’Aluisio Smartweld technology, the Chisel Comp EVO boasts the lightest aluminum XC frameset in its class. Each highly manipulated frame tube features continuously varied wall thicknesses and shaping that deliver stiffness where you need it– for efficiency – and ride-smoothing compliance where you want it—for comfort and optimal control.
UNMATCHED CAPABILITY: With a slew of trail-ready specs, including a bump up to 130mm of travel up front, the Chisel EVO eats up the chunk and feels right at home on the rough stuff. Advanced suspension kinematics, Ride Dynamics tuned suspension, and progressive geometry, can all be found in the Chisel Comp EVO, making it more than capable of handling big rides with confidence and speed.
INCREDIBLE EFFICIENCY: The Chisel Comp EVO is the most efficient pedaling bike in its class, thanks to the utilization of geometry and kinematics that went into our Epic 8 EVO platform. The steep seat tube positions you in the optimal pedaling position to save energy for the long rips down. Honed anti-squat reduces pedal-bob. Put it together, and Chisel Comp EVO translates every watt applied to the pedals into maximum forward motion.
SMOOTHER IS FASTER: We engineered a flex stay rear end for class-leading suspension performance while eliminating the extra weight and maintenance associated with pivots required in a traditional design. More common on carbon bikes, extensive field and lab testing proves that Chisel Comp EVO has achieved the impossible—the efficiency, control, and lightweight of a flex stay design in the advanced alloy.
HYDROFORMED ALLOY: Chisel Comp EVO shaves extra material and weight with a one-piece hydroformed seat tube that integrates the seat tube pivot, main pivot, and BB shell. On a more traditional bike, the seat tube is typically just a "tube" with pivots and BB shell welded on.
At a Glance
- D’Aluisio Smartweld hydroformed tubes and engineered tube junctions, flip chip geo adjust, 110mm travel
- FOX 34 Performance Elite 130mm with Grip 2 damper
- Ride Dynamics Tuned FOX FLOAT Performance rear shock
- TranzX dropper post (100mm-170mm)
- SRAM GX Eagle Rear derailleur
- SRAM G2 RS 4-piston brakes
- Specialized Purgatory Grid T9 tire (front)
- Specialized Ground Control Grid T7 tire (rear)

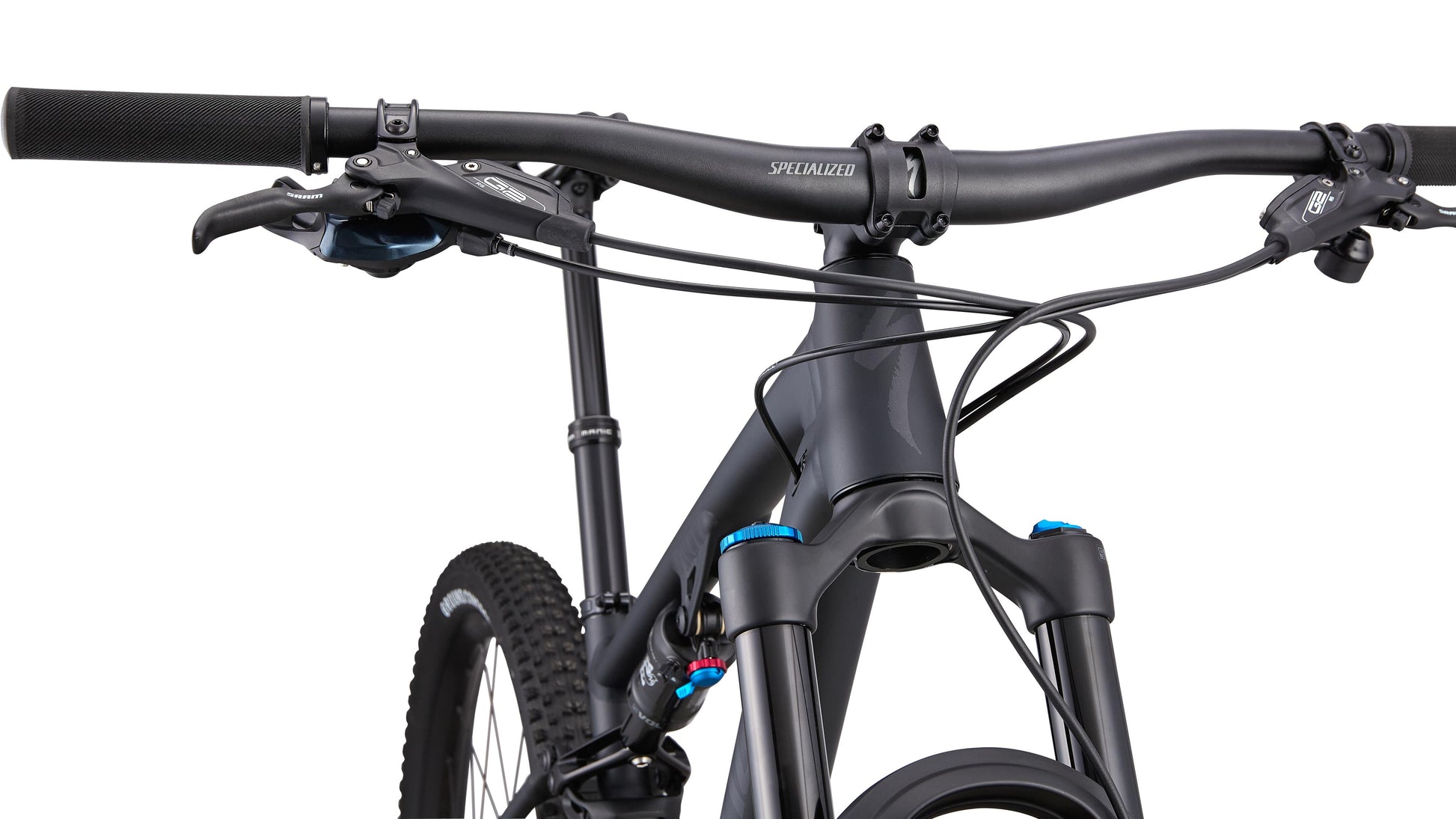

- 20mm Rise Handlebars
Component Specifications
| Frame | Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, 110mm travel, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible |
| Seat Binder | Specialized Alloy, 34.9mm |
| Fork | Fox 34 Performance Elite, Grip2 Damper, Compression adjust, 130mm travel, 44mm offset, 15x110mm |
| Rear Shock | Fox Float Performance, Evol LV, Ride Dynamics Tuned, 2-position compression adjust, 190x40mm |
| Shift Levers | SRAM GX, trigger, 12-speed |
| Rear Derailleur | SRAM GX Eagle, 12-speed |
| Cassette | SRAM PG-1230 Eagle 11-50t |
| Chain | SRAM SX Eagle, 12-speed |
| Crankset | SRAM X1000 Eagle, DUB, 165/170/175mm |
| Chain Rings | 32t |
| Bottom Bracket | SRAM DUB, BSA 73mm, Threaded |
| Rims | Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h |
| Spokes | DT Swiss Industry |
| Front Tire | Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4 |
| Rear Tire | Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35 |
| Inner Tubes | Standard 40mm PV 29x1.75-2.4 |
| Front Brake | SRAM G2 RS hydraulic disc, 4-Piston Caliper, 180mm rotor |
| Rear Brake | SRAM G2 RS hydraulic disc, 4-Piston Caliper, 180mm rotor |
| Stem | Alloy Stem, 35mm clamp, 60mm |
| Handlebars | Specialized Alloy, 20mm rise, 35mm, 760mm wide |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Power Comp, steel rails |
| Seatpost | X-Fusion Manic, 30.9, 125/150/170 Travel, 0mm offset |
2025 Specialized Chisel Comp EVO
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 606 mm | 596 mm | 610 mm | 624 mm | 633 mm |
| Reach | 385 mm | 410 mm | 440 mm | 465 mm | 490 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 685 mm | 709 mm | 745 mm | 776 mm | 805 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1119 mm | 1145 mm | 1181 mm | 1212 mm | 1241 mm |
| Bike Standover Height | 762 mm | 783 mm | 783 mm | 792 mm | 795 mm |
| Seat Tube Length | 375 mm | 392 mm | 410 mm | 450 mm | 500 mm |
| Seat Tube Angle | 75° | 75° | 75° | 75° | 75° |
| Top Tube Length, Horizontal | 528 mm | 566 mm | 603 mm | 635 mm | 665 mm |
| Head Tube Length | 95 mm | 95 mm | 110 mm | 125 mm | 135 mm |
| Head Tube Angle (low) | 66° | 66° | 66° | 66° | 66° |
| Head Tube Angle (high) | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| BB Height (low) | 330 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| BB Height (high) | 336 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| BB Drop (low) | 42 mm | 33 mm | 33 mm | 33 mm | 33 mm |
| Trail | 117 mm | 117 mm | 117 mm | 117 mm | 117 mm |
| Fork Length, Full | 540 mm | 540 mm | 540 mm | 540 mm | 540 mm |
Size Guide: 2025 Specialized Chisel Comp EVO
