2024 Specialized Status 2 170 Features
STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.
Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.
BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.
RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

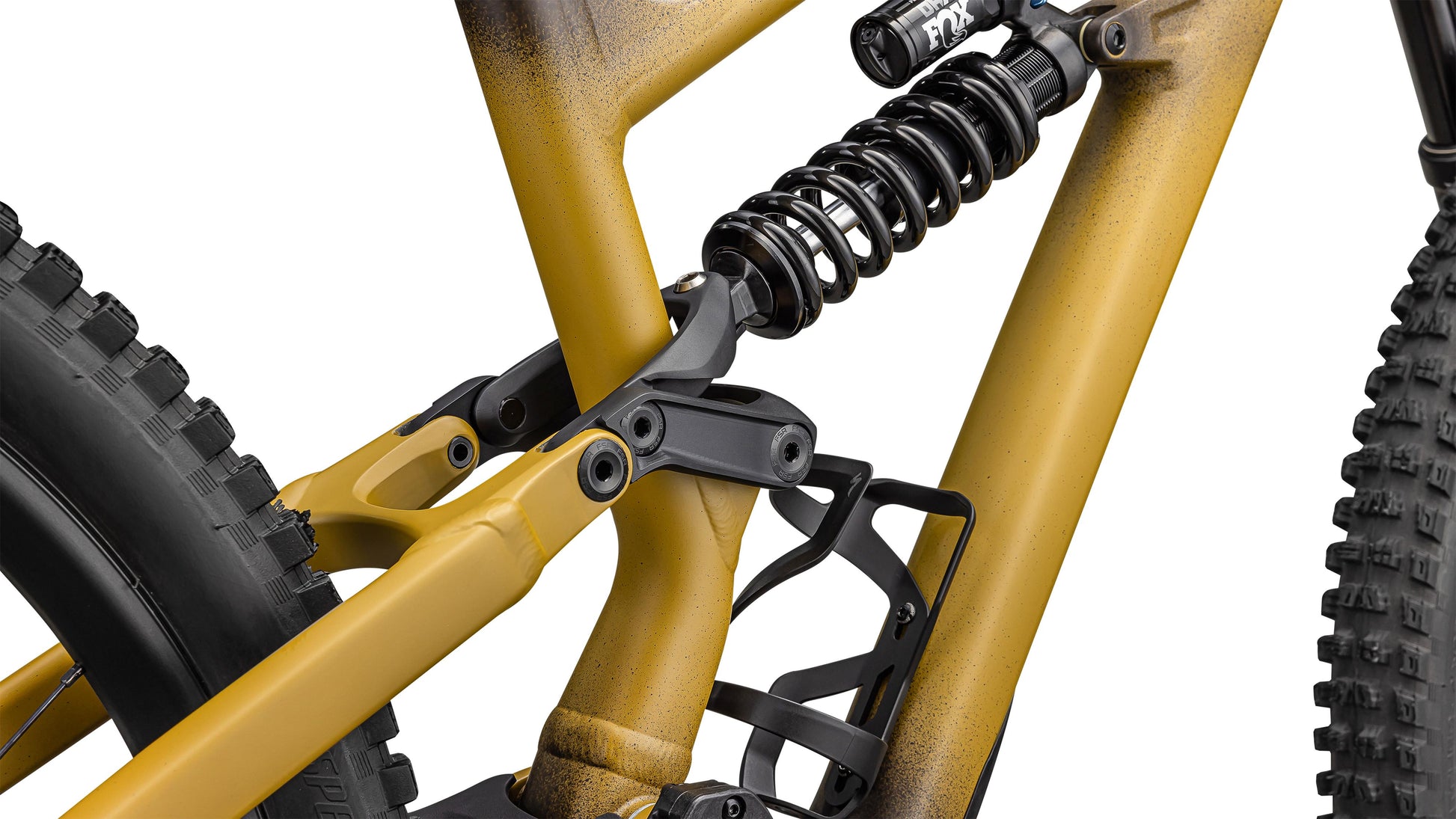

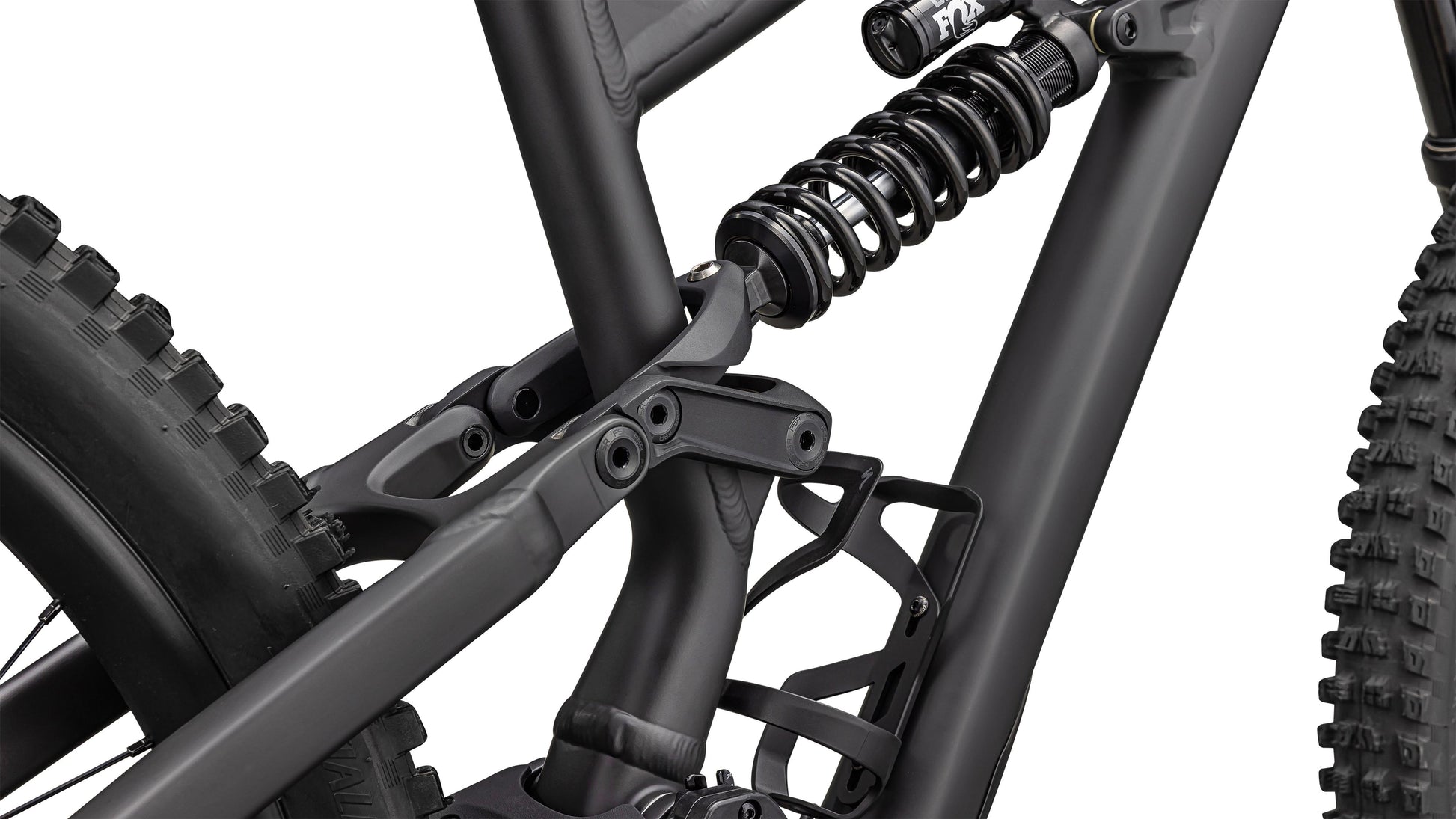

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
At a Glance
- 100% Redesigned durable alloy chassis
- New, more durable alloy rims
- Horst Link geometry adjust flip chip
- Updated geometry for more usability
- Curated parts spec for your desired ride experience
Component Specifications
| Frame | M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX FLOAT 38 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 170mm of travel |

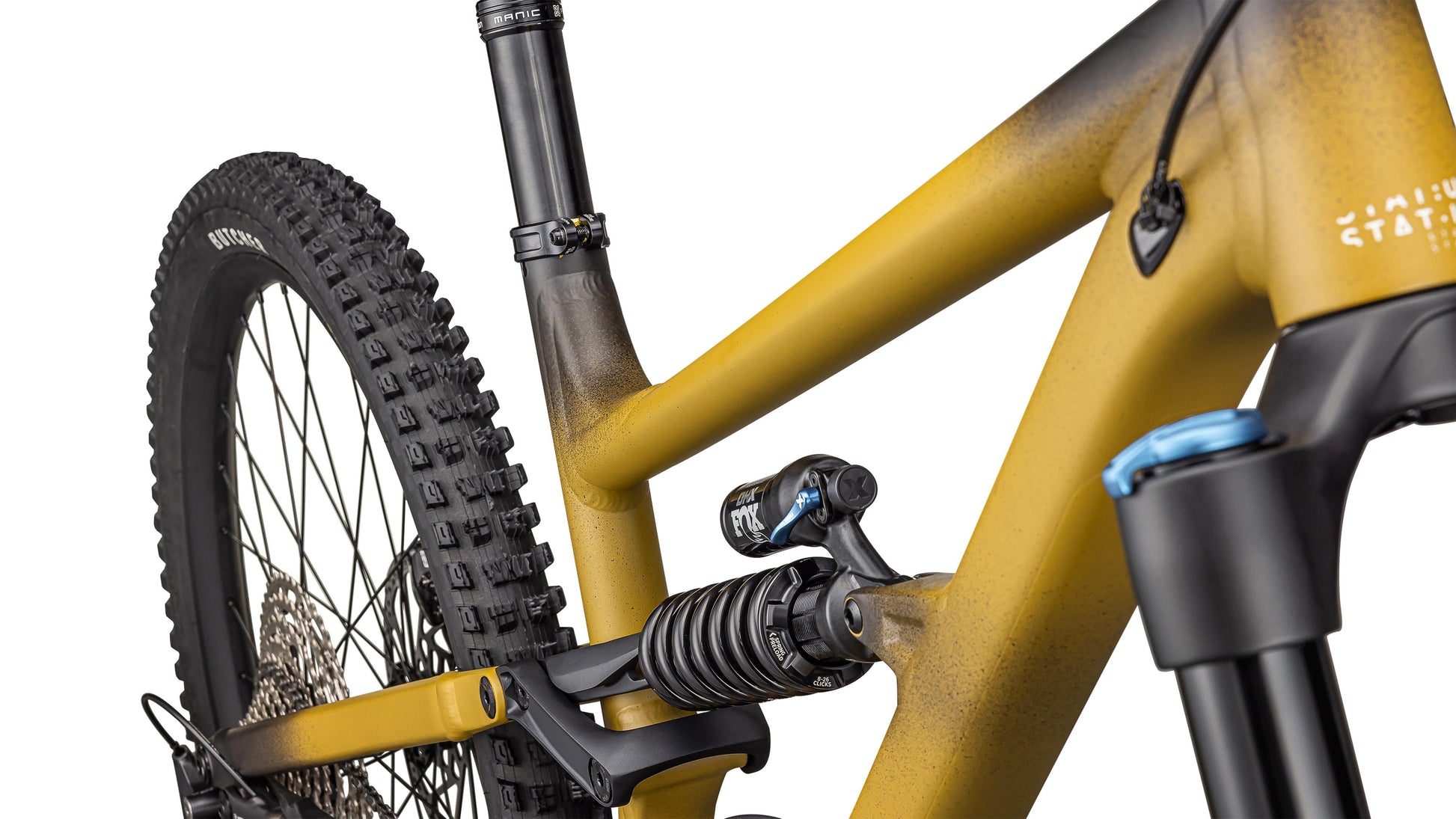

| Rear Shock | FOX DHX Performance, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230x62.5mm, S1: 350lbs,S2: 400lbs, S3: 450lbs, S4: 500lbs, S5: 550lbs, S6: 600lbs |
| Shift Levers | Shimano Deore, M6100, I-Spec EV, 12 speed |

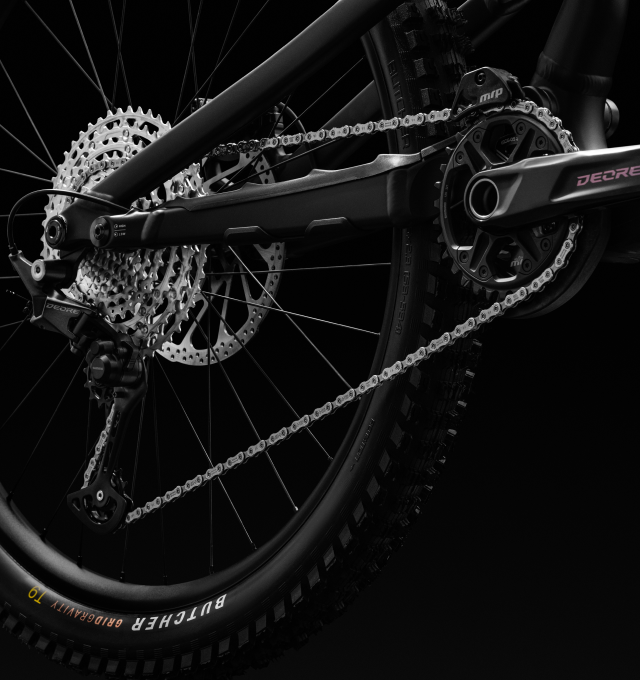

| Rear Derailleur | Shimano Deore, M6100, 12pd, Shadow Plus |
| Cassette | Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t |
| Chain | Shimano Deore M6100, 12spd |
| Crankset | Shimano Deore, M6120, 32T ring, 55mm chainline, S1-4:165mm, S5: 170mm |
| Rims | Specialized, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm |
| Rear Brake | TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm |
| Stem | Alloy Trail Stem, 35mm bar bore |

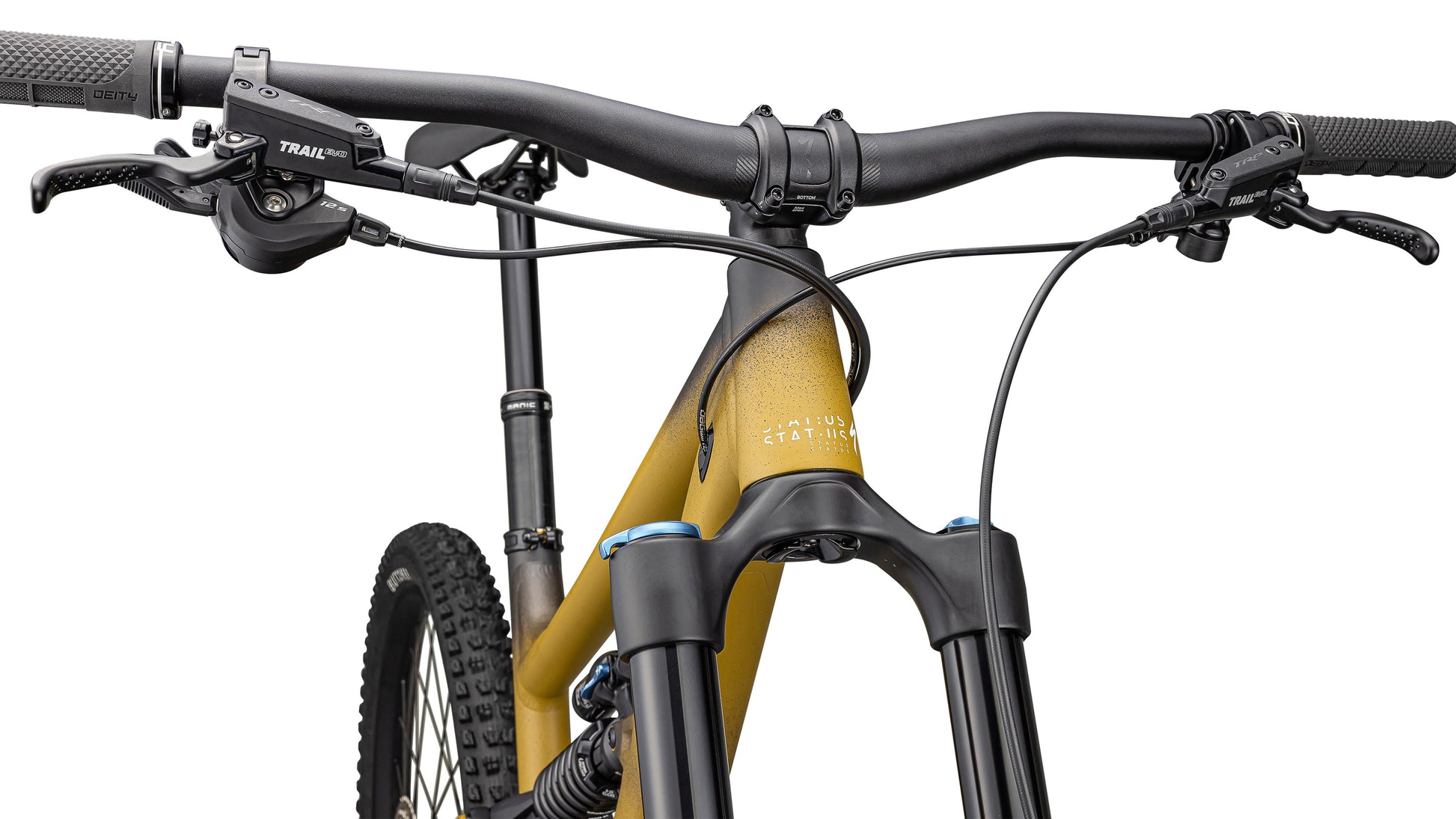

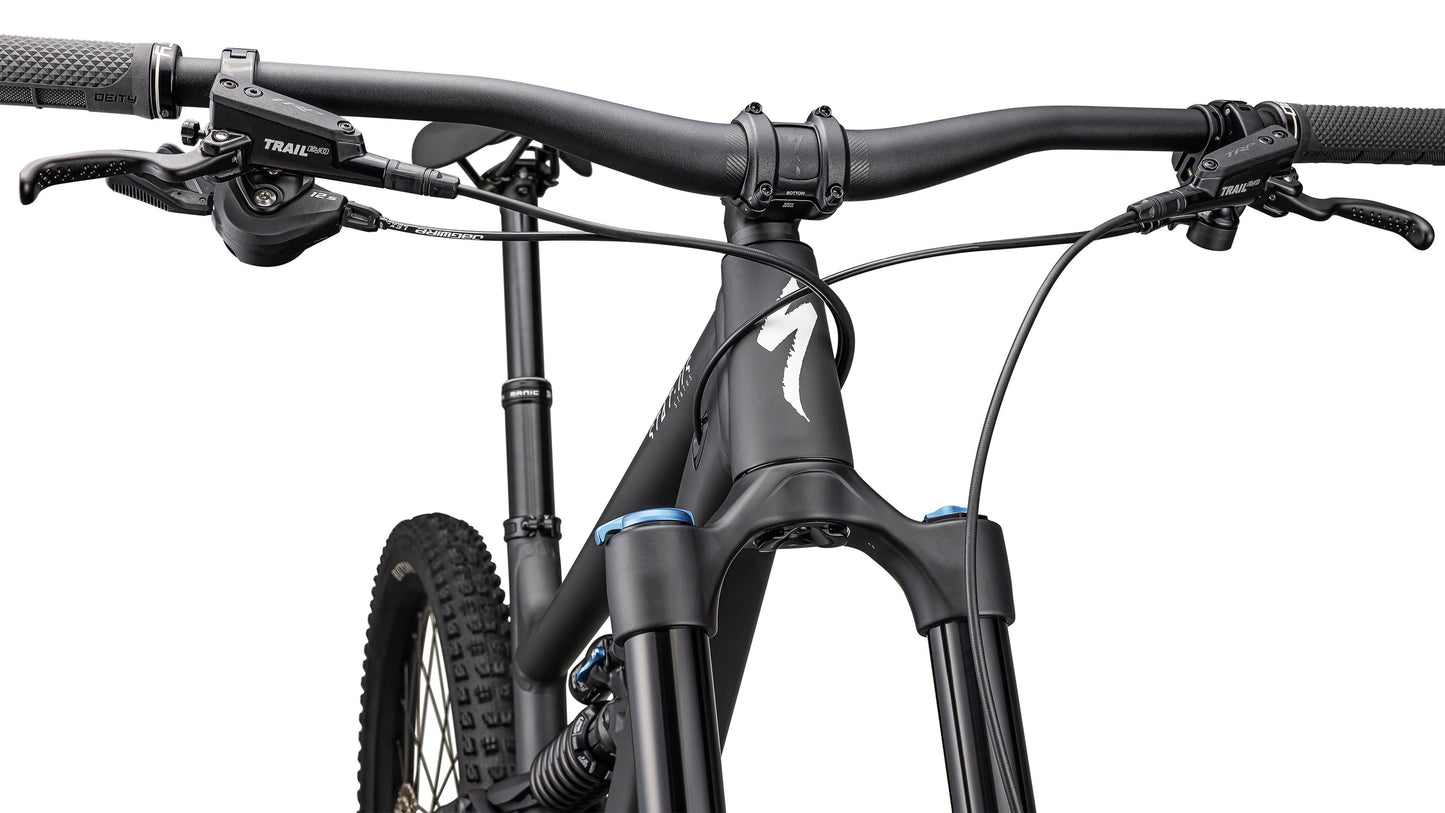

| Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width |
| Grips | Deity Knuckleduster |
| Saddle | Bridge Comp, Hollow Cr-mo rails, 143mm |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm |
2024 Specialized Status 2 170
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 |
|---|---|---|---|---|---|
| Stack (low) | 620 mm | 625 mm | 634 mm | 643 mm | 652 mm |
| Stack (high) | 616 mm | 620 mm | 629 mm | 638 mm | 647 mm |
| BB Drop (high) | 26 mm | 26 mm | 26 mm | 26 mm | 26 mm |
| Trail (low) | 138 mm | 138 mm | 138 mm | 138 mm | 138 mm |
| Trail (high) | 133 mm | 133 mm | 133 mm | 133 mm | 133 mm |
| Fork Length (full) | 581 mm | 581 mm | 581 mm | 581 mm | 581 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 762 mm | 789 mm | 819 mm | 848 mm | 878 mm |
| Chainstay Length (low) | 432 mm | 432 mm | 432 mm | 437 mm | 437 mm |
| Chainstay Length (high) | 428 mm | 428 mm | 428 mm | 433 mm | 433 mm |
| Wheelbase | 1193 mm | 1221 mm | 1250 mm | 1285 mm | 1314 mm |
| Top-tube Length (horizontal) | 554 mm | 595 mm | 635 mm | 676 mm | 716 mm |
| Reach (low) | 420 mm | 445 mm | 470 mm | 495 mm | 520 mm |
| Bike Standover Height | 735 mm | 735 mm | 742 mm | 748 mm | 752 mm |
| Seat Tube Length | 390 mm | 400 mm | 420 mm | 440 mm | 465 mm |
| Seat Tube Angle (low) | 77° | 77° | 77° | 77° | 77° |
| Seat Tube Angle (high) | 77.6° | 77.6° | 77.6° | 77.6° | 77.6° |
| Reach (high) | 426 mm | 451 mm | 476 mm | 501 mm | 526 mm |
| Headtube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Headtube Angle (low) | 63.5° | 63.5° | 63.5° | 63.5° | 63.5° |
| Headtube Angle (high) | 64° | 64° | 64° | 64° | 64° |
| BB Height (low) | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| BB Height (high) | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| BB Drop (low) | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
Size Guide: 2024 Specialized Status 2 170
