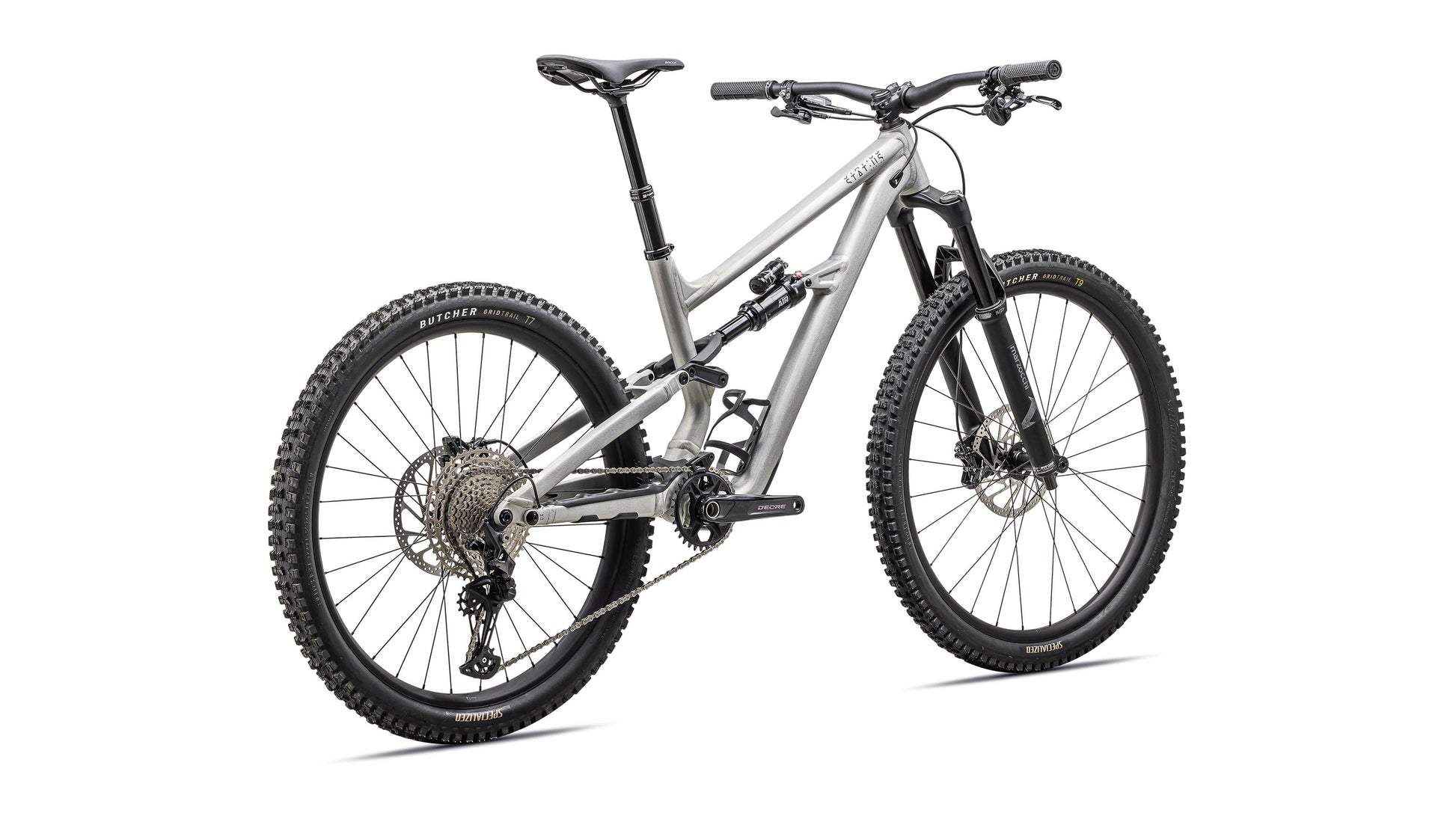

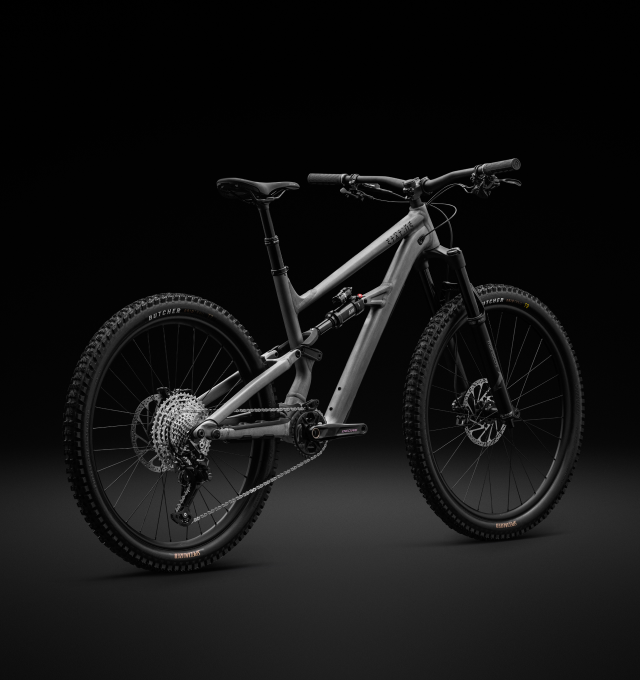

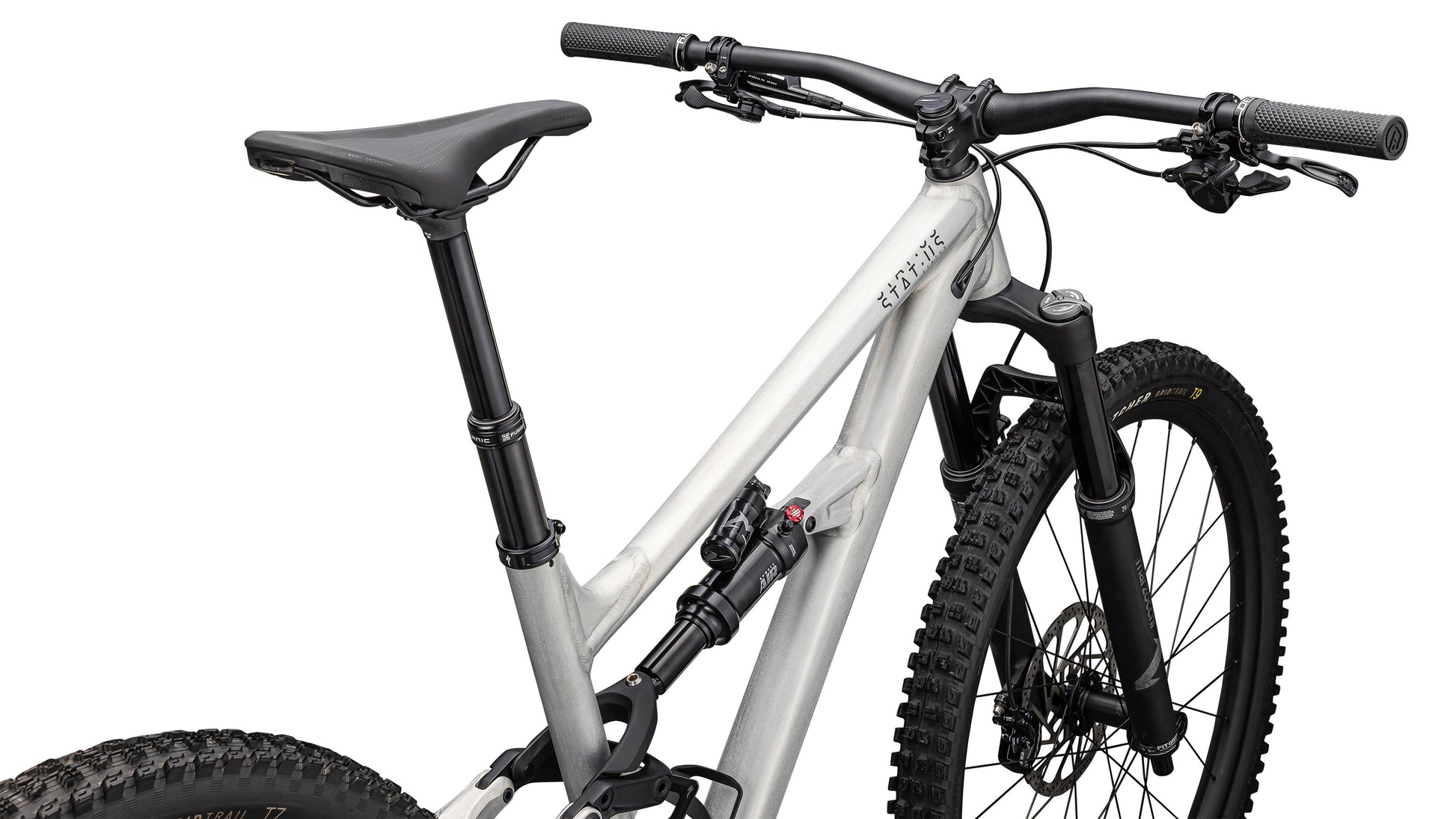

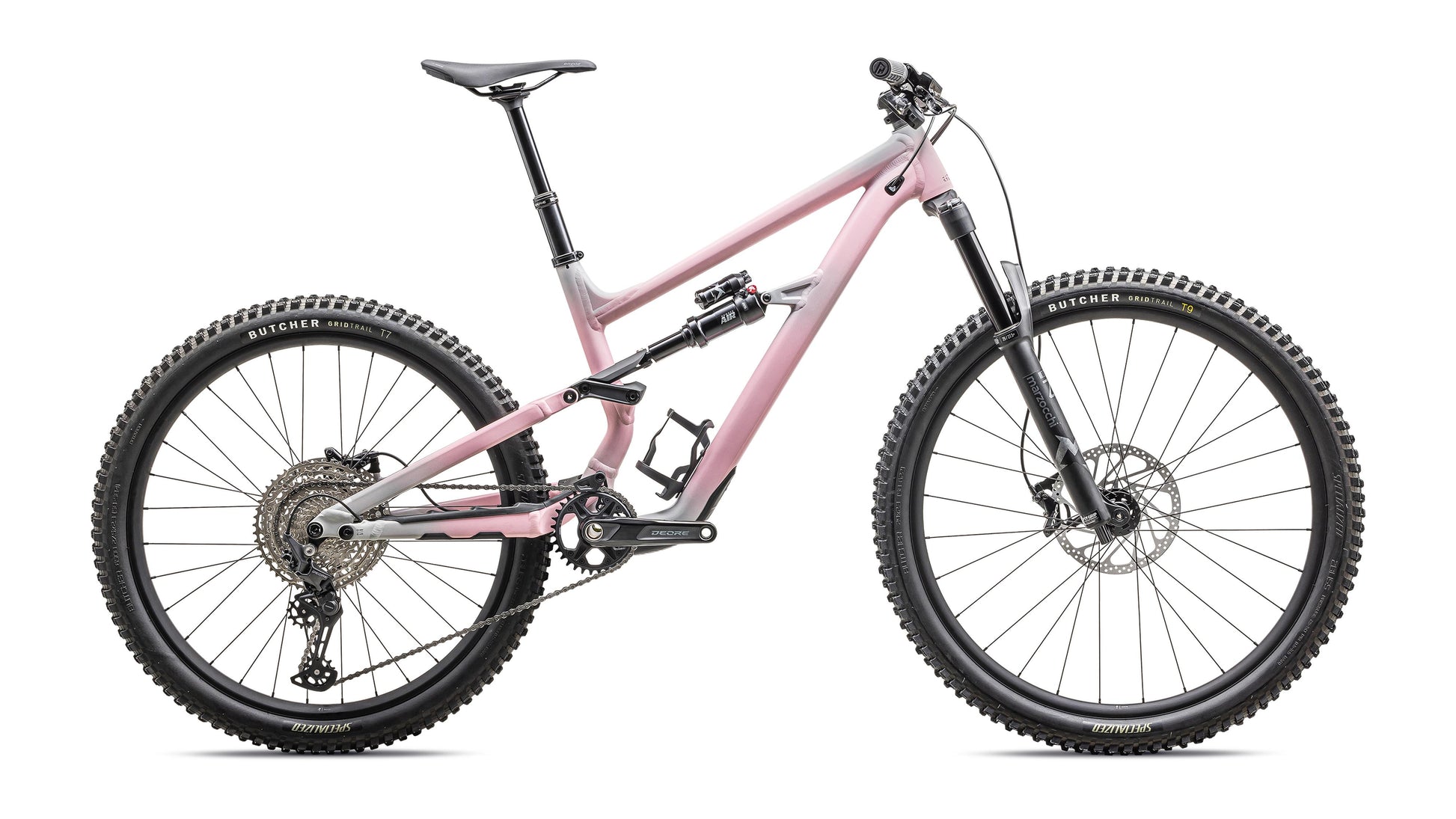

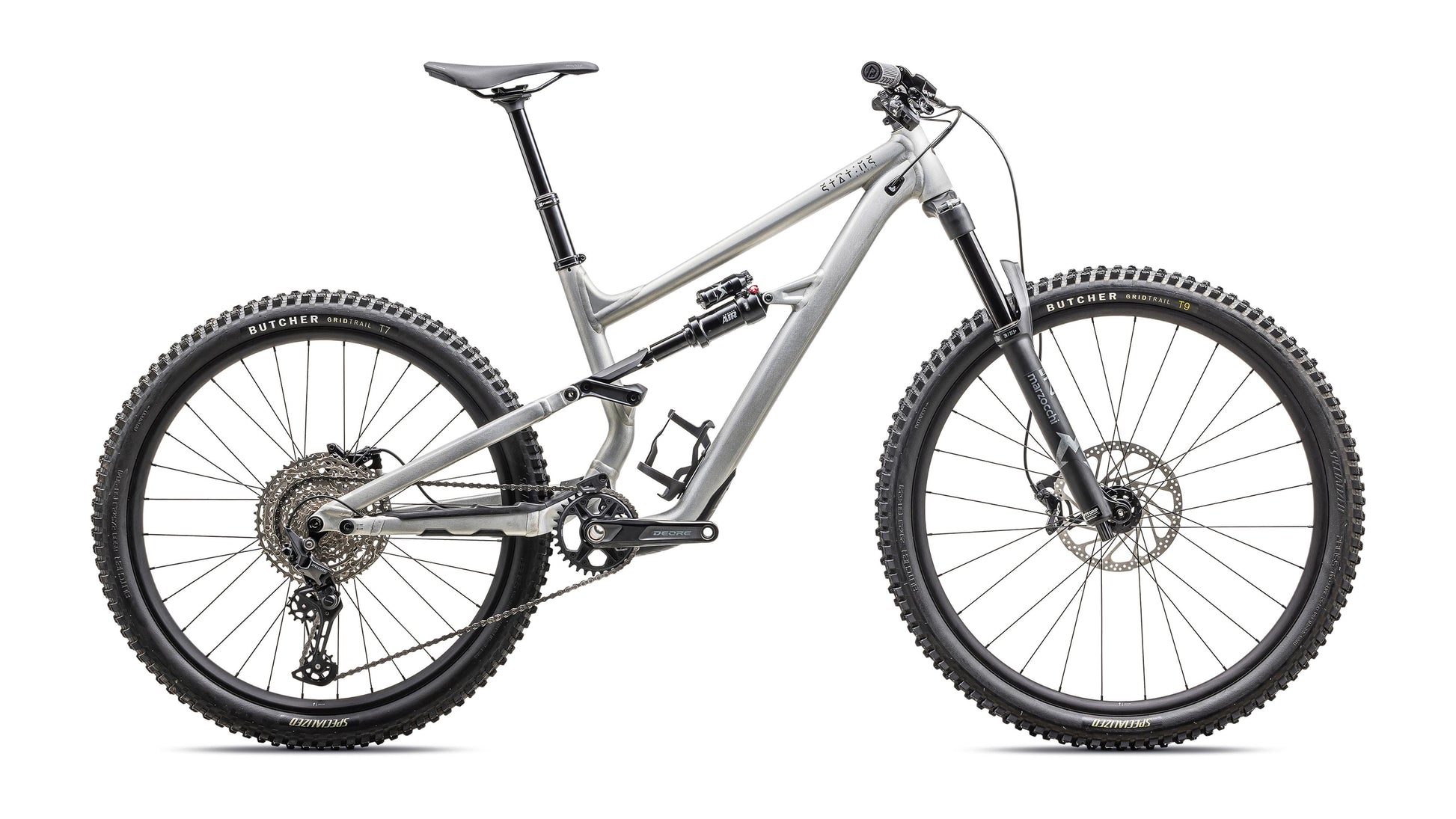

2024 Specialized Status 2 140 Features
STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.
Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.
BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.
RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

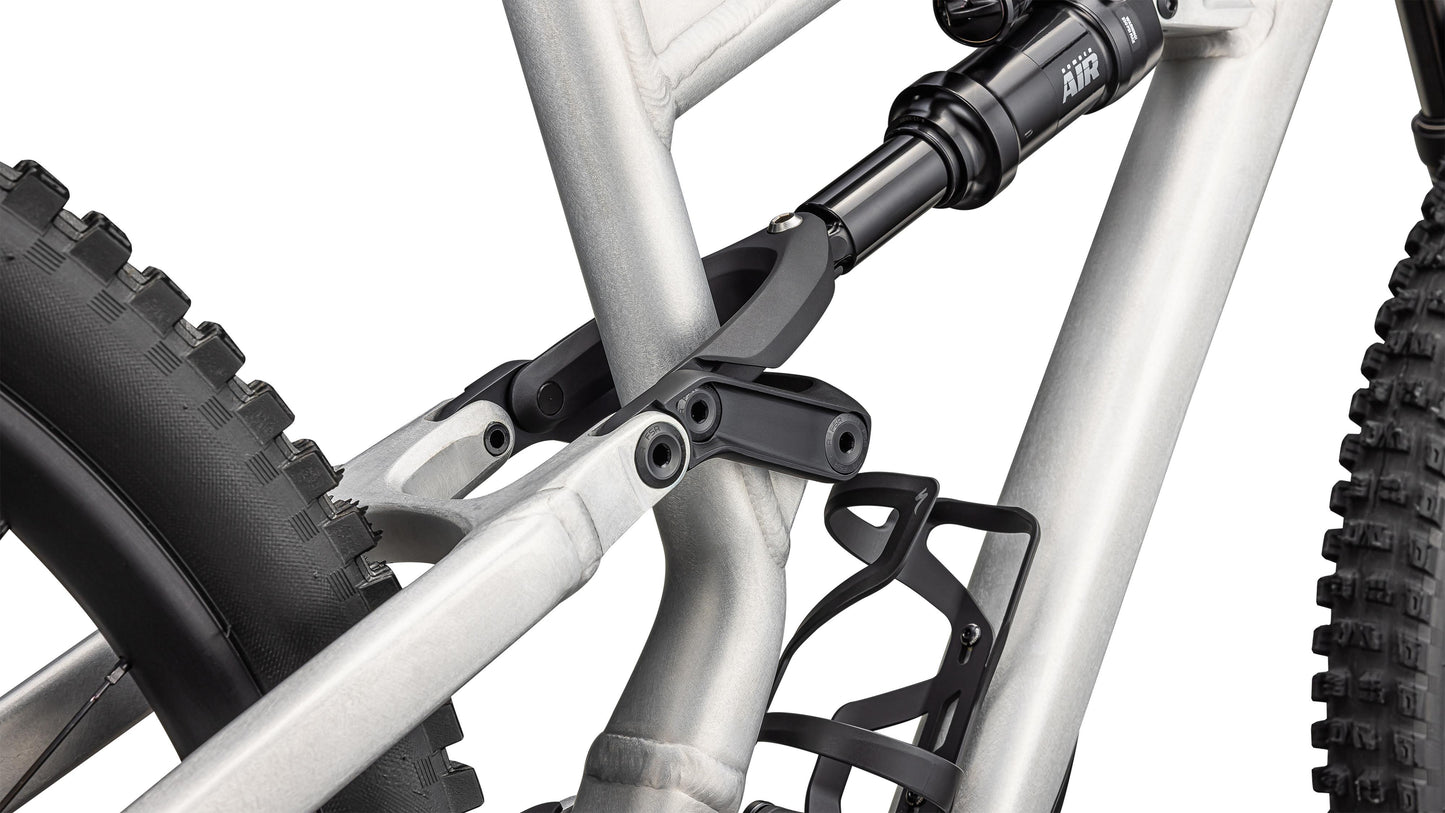

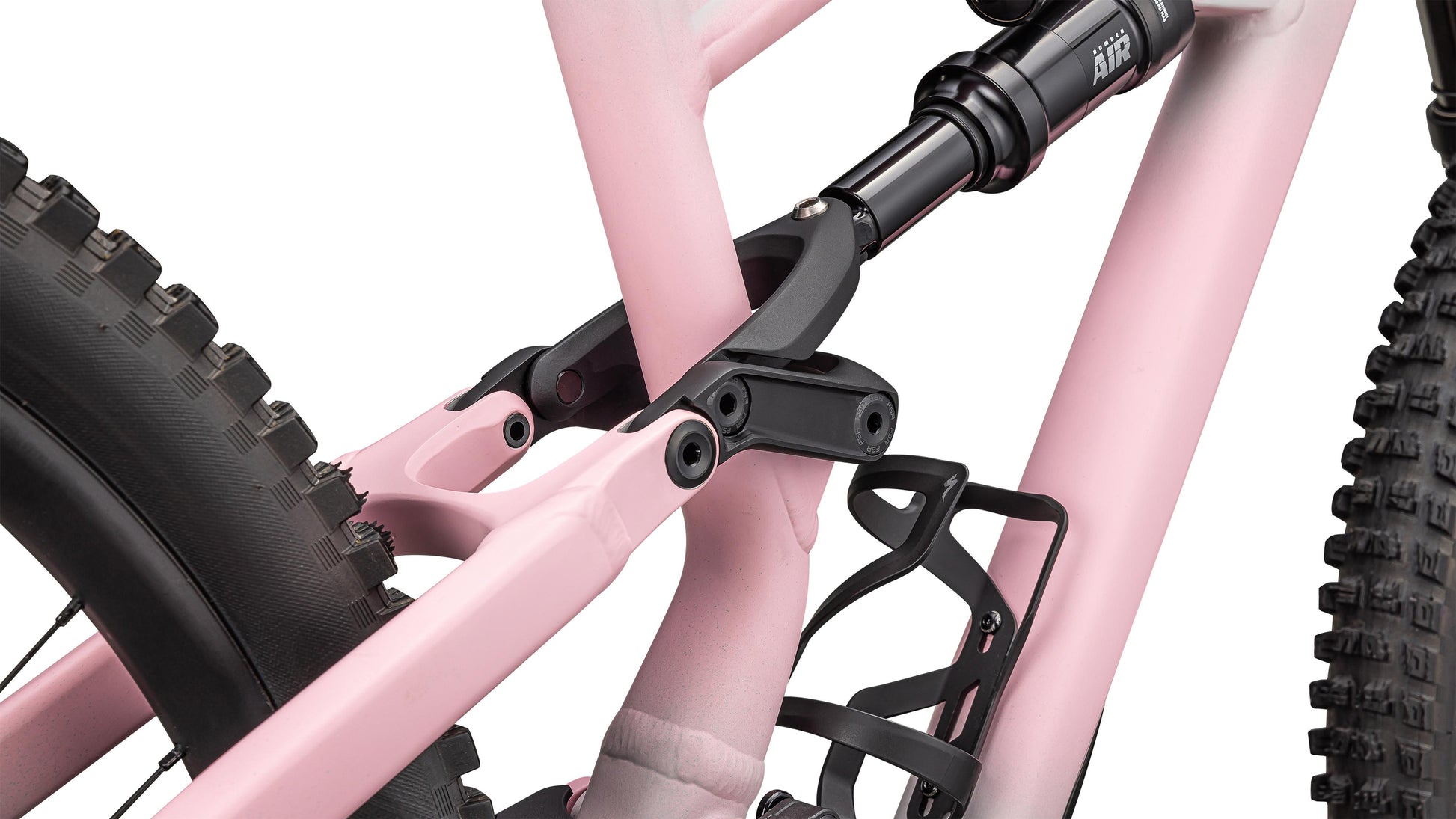

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
At a Glance
- 100% Redesigned durable alloy chassis
- New, more durable alloy rims
- Horst Link geometry adjust flip chip
- Updated geometry for more usability
- Curated parts spec for your desired ride experience
Component Specifications
| Frame | M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel |
| Seat Binder | Alloy, 38.6mm |
| Fork | Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel |

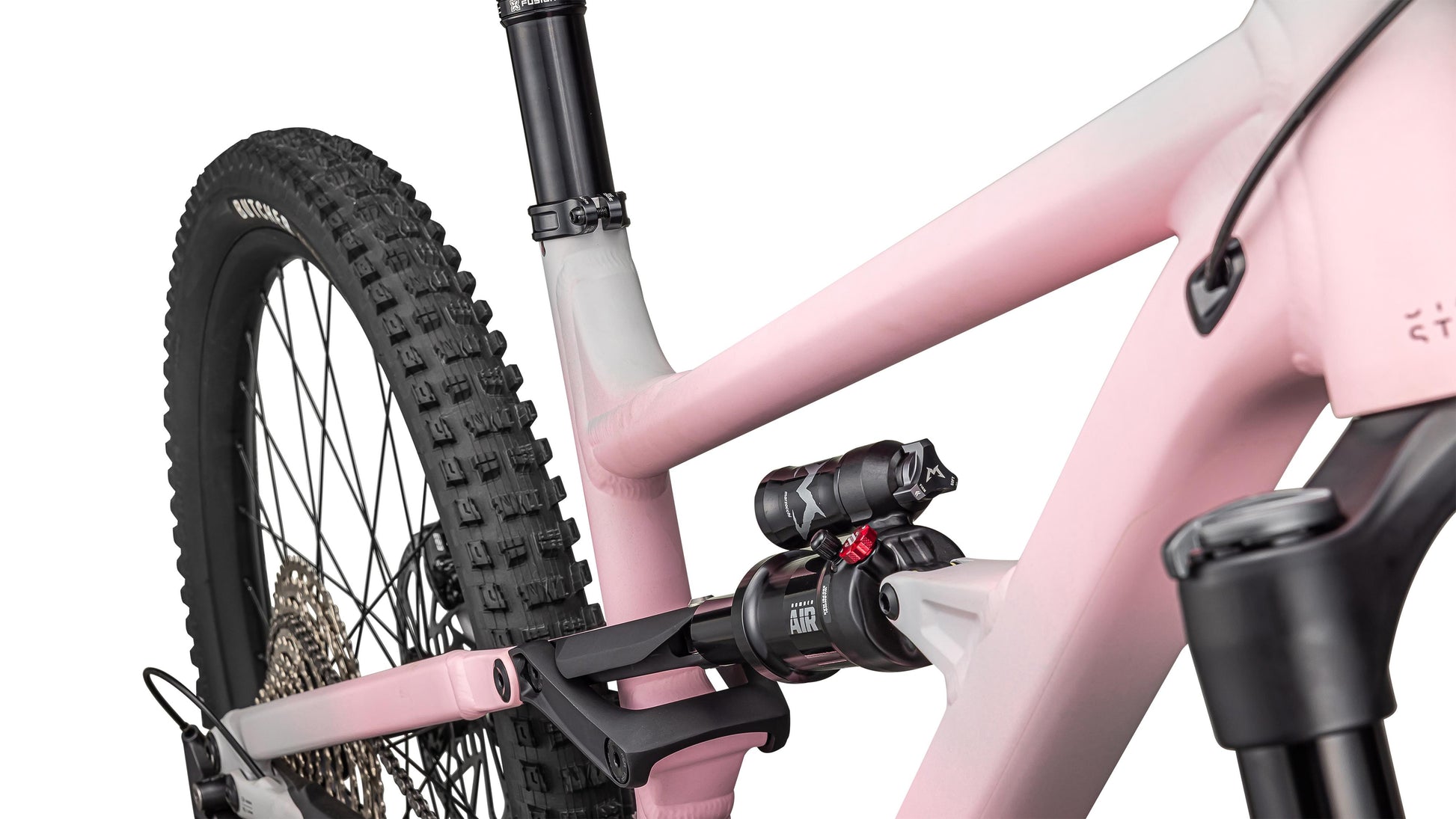

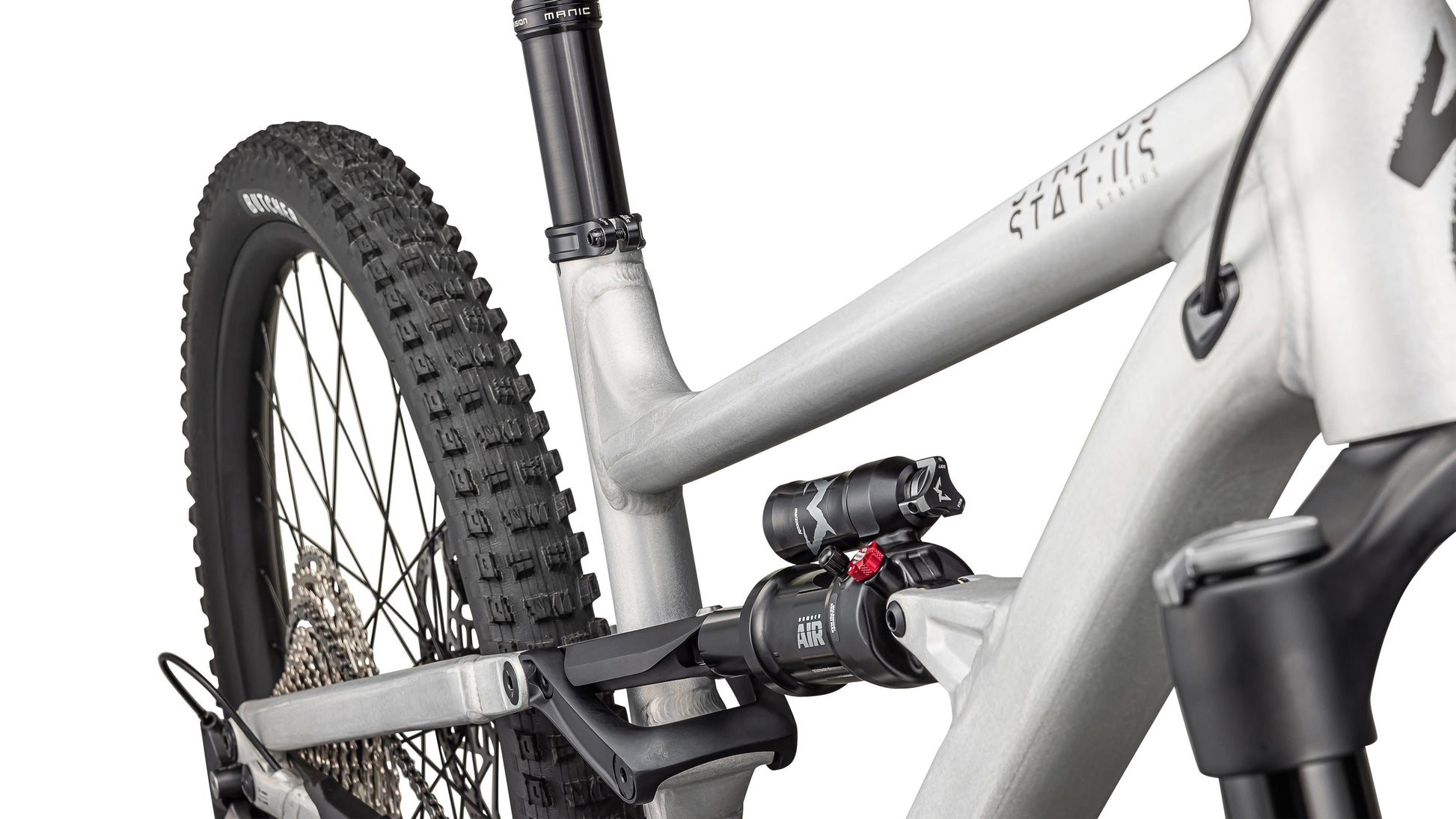

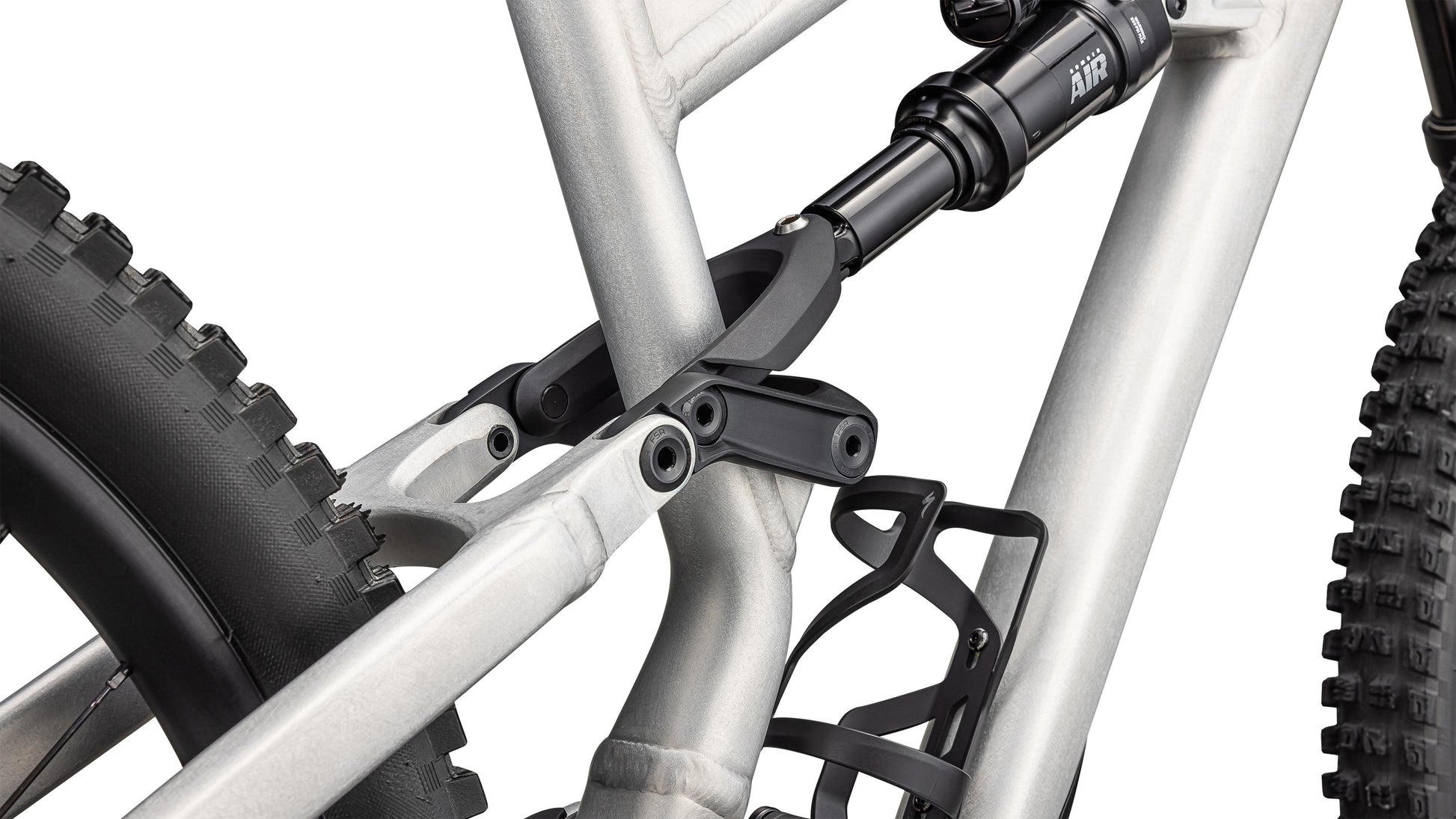

| Rear Shock | Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, S1:210x50mm, S2-S5:210x52.5mm |

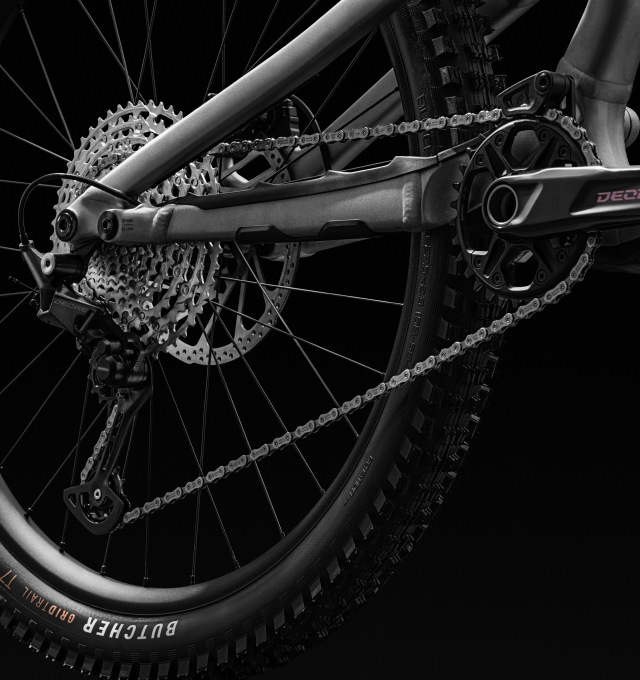

| Shift Levers | Shimano Deore, M6100, I-Spec EV, 12 speed |
| Rear Derailleur | Shimano Deore, M6100, 12pd, Shadow Plus |
| Cassette | Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t |
| Chain | Shimano Deore M6100, 12spd |
| Crankset | Shimano Deore, M6120, 32T ring, 55mm chainline, S1:165mm, S2-S5: 170mm |
| Rims | Specialized, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm |
| Rear Brake | TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm |

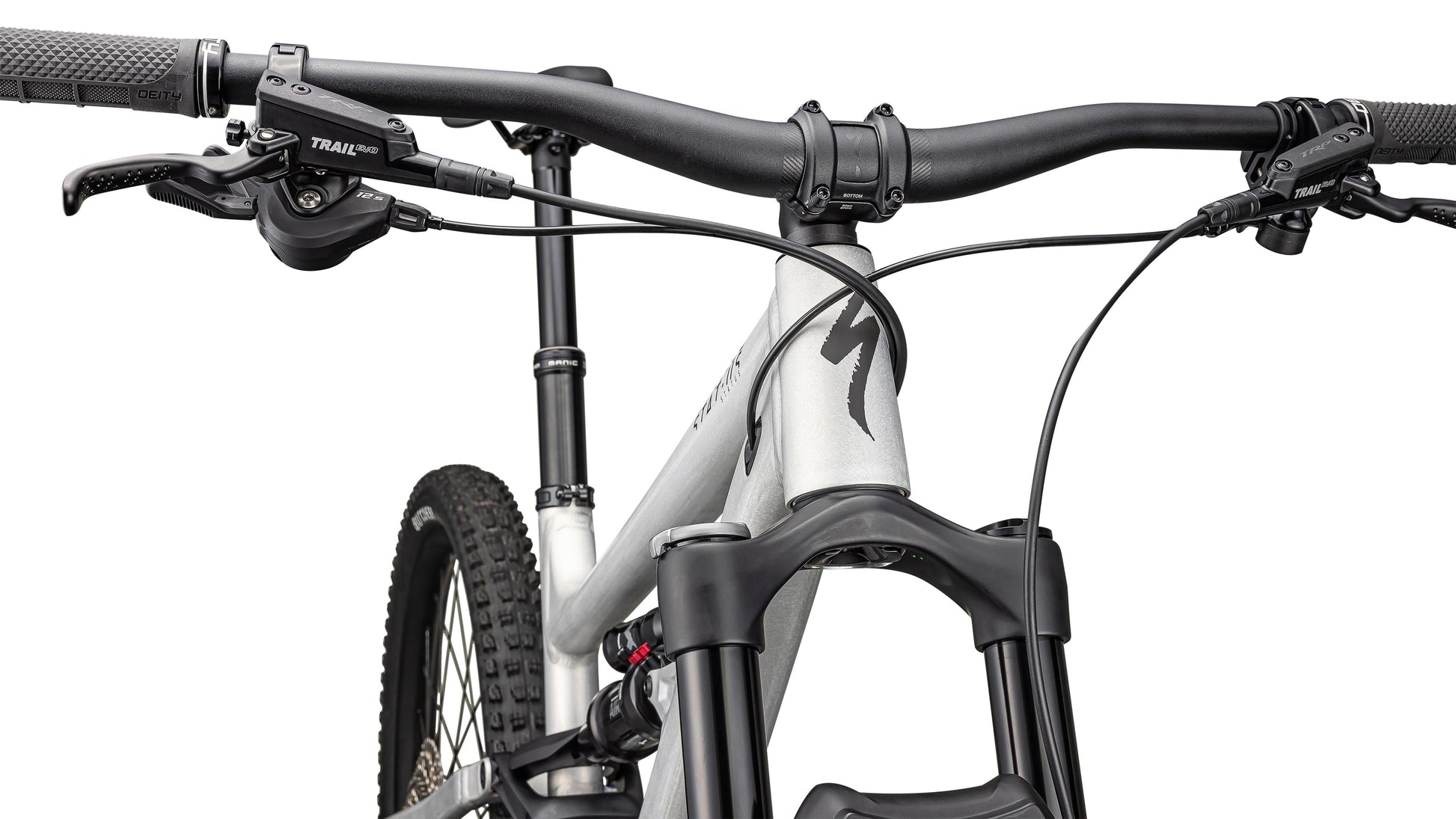

| Stem | Alloy Trail Stem, 35mm bar bore |

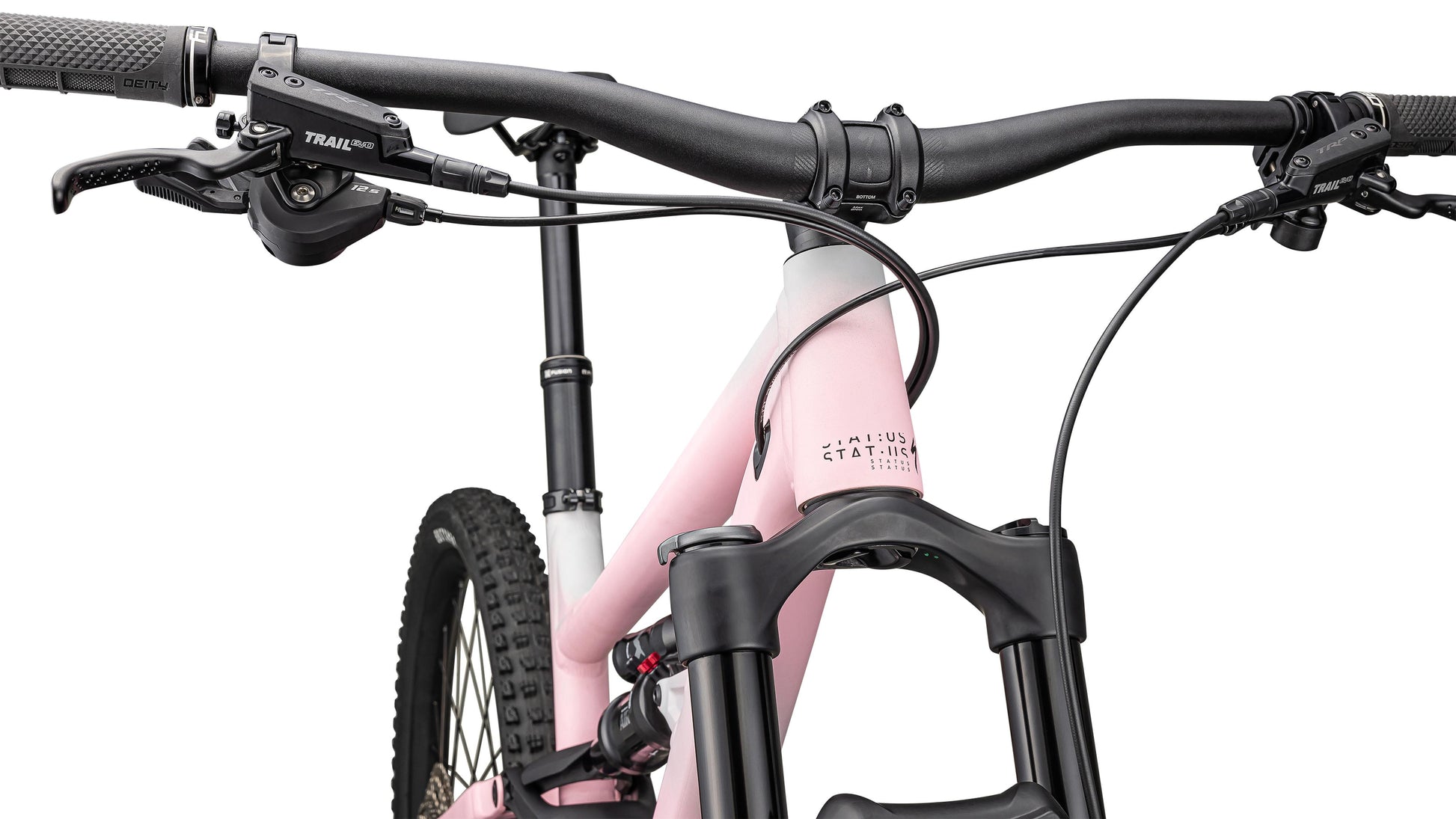

| Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width |
| Grips | Deity Knuckleduster |
| Saddle | Bridge Comp, Hollow Cr-mo rails, 143mm |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm |
2024 Specialized Status 2 140
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 |
|---|---|---|---|---|---|
| Stack (low) | 605 mm | 609 mm | 618 mm | 627 mm | 636 mm |
| Stack (high) | 601 mm | 605 mm | 614 mm | 623 mm | 632 mm |
| BB Drop (high) | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Trail (low) | 134 mm | 134 mm | 134 mm | 134 mm | 134 mm |
| Trail (high) | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Fork Length (full) | 551 mm | 551 mm | 551 mm | 551 mm | 551 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 741 mm | 768 mm | 798 mm | 827 mm | 857 mm |
| Chainstay Length (low) | 427 mm | 427 mm | 427 mm | 432 mm | 432 mm |
| Chainstay Length (high) | 423 mm | 423 mm | 423 mm | 428 mm | 428 mm |
| Wheelbase | 1168 mm | 1195 mm | 1225 mm | 1259 mm | 1288 mm |
| Top-tube Length (horizontal) | 549 mm | 590 mm | 630 mm | 671 mm | 711 mm |
| Reach (low) | 415 mm | 440 mm | 465 mm | 490 mm | 515 mm |
| Bike Standover Height | 735 mm | 735 mm | 739 mm | 743 mm | 747 mm |
| Seat Tube Length | 390 mm | 400 mm | 420 mm | 440 mm | 465 mm |
| Seat Tube Angle (low) | 77° | 77° | 77° | 77° | 77° |
| Seat Tube Angle (high) | 77.6° | 77.6° | 77.6° | 77.6° | 77.6° |
| Reach (high) | 421 mm | 446 mm | 471 mm | 496 mm | 521 mm |
| Headtube Length | 100 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Headtube Angle (low) | 64° | 64° | 64° | 64° | 64° |
| Headtube Angle (high) | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height (low) | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| BB Height (high) | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| BB Drop (low) | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
Size Guide: 2024 Specialized Status 2 140
