2023 Specialized Epic Evo S-Works Frame Features
Going all the way back to when inspiration for the EVO lineup was still waiting to be drawn from employee bike racks packed with hot-rodded Epics sporting shorter stems, wider bars and longer forks, Epic EVO has always been about taking the Epic’s unmatched pedaling efficiency, nimble handling and featherweight chassis and injecting an added dose of capability to make quick work of technical singletrack and demanding descents.
While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoa!’ as soon as you hit your first stretch of singletrack.
While the Epic EVO gains a seemingly modest 20 millimeters of front and 10 millimeters of rear travel over its Epic stablemate, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoah!’ as soon as you hit your first stretch of singletrack.
Meticulously engineered to retain as much of the Epic’s standard-setting efficiency as possible, the EVO’s new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.
With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It’s also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO’s handling characteristics.
At a Glance
- Flip It To Rip It: Tune the ride of the S-Works Epic EVO’s FACT 12m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to reduce the EVO’s headtube angle by half a degree while lowering bottom bracket height by 10 millimeters.
Product Specifications
Product Specifications
Frame |
|
Rear Shock |
|
Seat Binder |

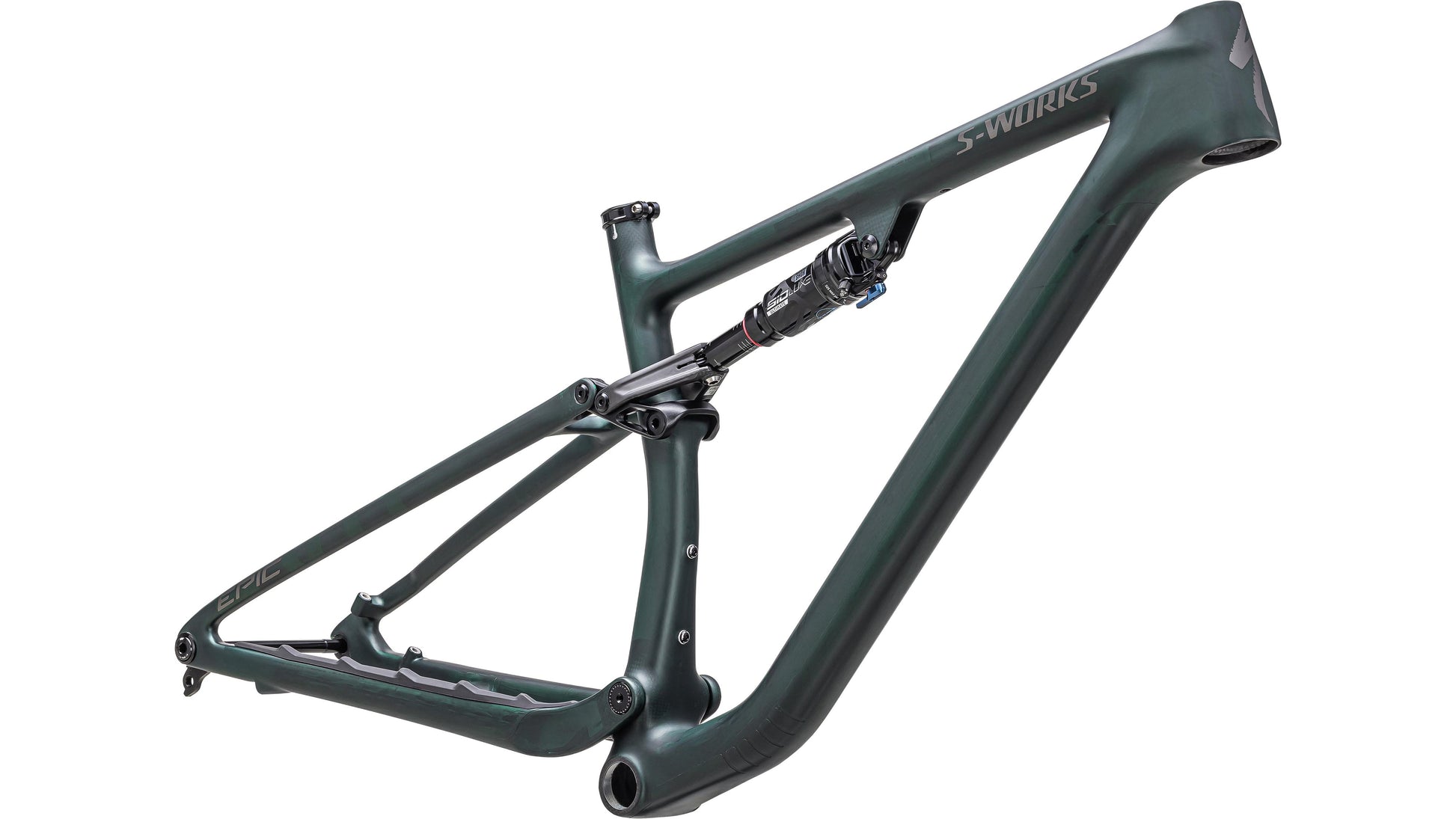

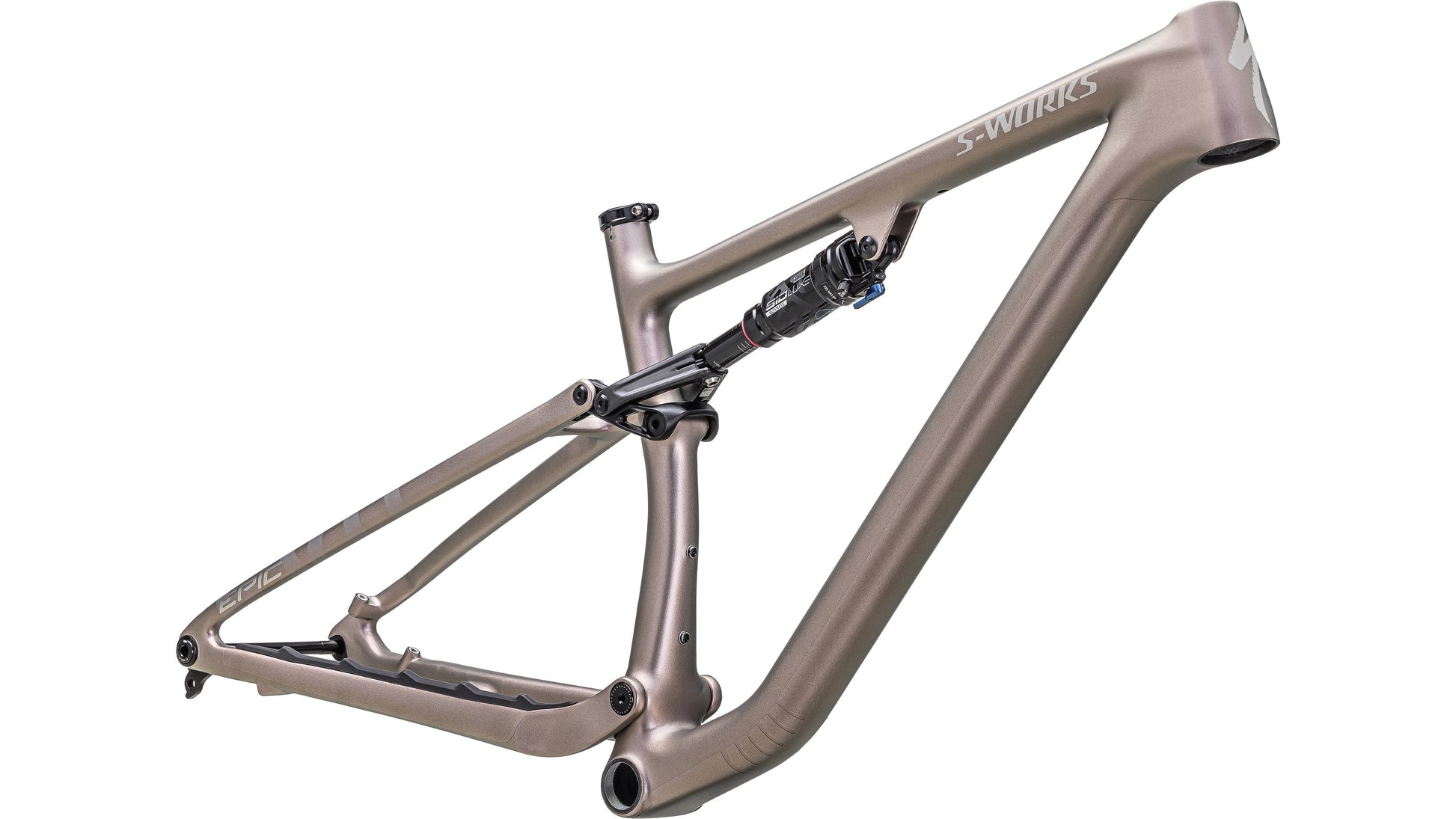

2023 Specialized Epic Evo S-Works Frame
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 603 mm | 593 mm | 597 mm | 611 mm | 629 mm |
| Reach | 380 mm | 406 mm | 436 mm | 460 mm | 485 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1106 mm | 1132 mm | 1164 mm | 1194 mm | 1227 mm |
| Bike Standover Height | 760 mm | 779 mm | 781 mm | 793 mm | 804 mm |
| Seat Tube Length | 375 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Seat Tube Angle | 75.5° | 74.8° | 74.5° | 74.5° | 74.5° |
| Top Tube Length, Horizontal | 536 mm | 567 mm | 602 mm | 629 mm | 659 mm |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 115 mm | 135 mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| BB Height | 326 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| BB Drop | 46 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm | 114 mm |
| Fork Length, Full | 530 mm | 530 mm | 530 mm | 530 mm | 530 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 672 mm | 697 mm | 729 mm | 759 mm | 792 mm |
Size Guide: 2023 Specialized Epic Evo S-Works Frame
