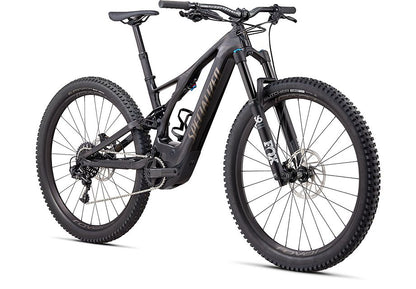

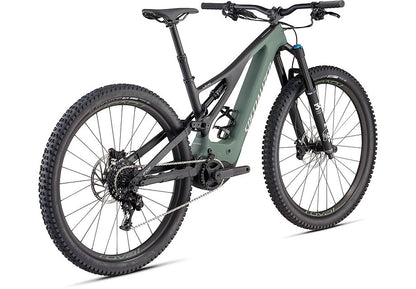

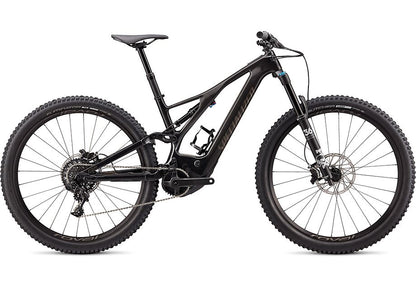

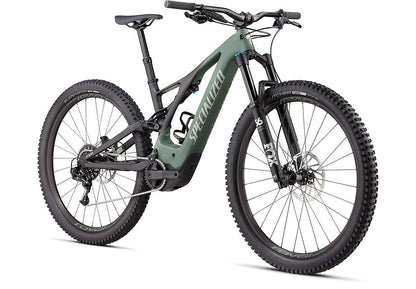

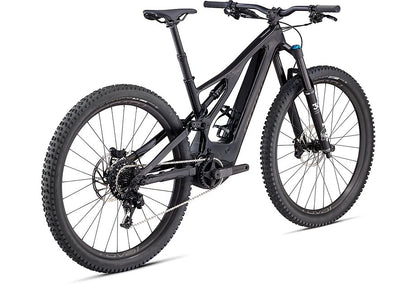

2020 Specialized Levo Expert Carbon 29 Features
Here's where the gloves come off�the Turbo Levo Expert Carbon sheds serious weight with its advanced carbon front triangle and brings a high level of technical capability with a FOX 36 fork and DPS shock.
ROWDY DESCENTS. STEEP CLIMBS? HELL. YES.
The Turbo Levo is a fully-fledged progressive trail bike. We've lengthened the reach, kept the chainstays nice and short, and maintained a low center of gravity. Next, we slackened the head angle for more confident descents and steepened the seat angle to improve climbing efficiency. It's dialed.
MORE POWER, MORE RANGE
The Levo's Specialized 2.1 motor amplifies your pedaling input by a mind blowing 410%. Our M2 batteries provides you with plenty of range. What's more, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to. More power. More miles per ride. More awesome.
� Carbon/M5 alloy Sidearm frame shed weight and adds control.
� Smoothest, most powerful motor on the market.
� FOX 36 Perfomance forkand FLOAT DPS shock with 150mm of travel.
Component Specifications
| Motor | Specialized 2.1, custom Rx Trail-tuned motor, 250W nominal |
| Battery | Specialized M2-700, integrated battery w/rock guard, 700Wh |
| Charger | Custom charger, 42V4A w/ Rosenberger plug |
| Frame | FACT 9m Carbon w/ M5 alloy rear triangle, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel |
| Seat Binder | Specialized bolt-type, alloy, 38.6mm |
| Fork | Fox 36 Performance, 150mm travel, Grip damper with 3 position micro adjust, 51mm offset |
| Rear Shock | FOX FLOAT DPS Performance, 3-position adjustment, 52.5x210mm, Rx Trail Tune |
| Shift Levers | SRAM S700, single-click lever |
| Rear Derailleur | SRAM X1, 11-speed |
| Cassette | SRAM XG-1175, 11-speed, 10-42t |
| Chain | KMC X11ET, 11-speed w/ Missing Link™ |
| Crankset | Praxis forged M30, custom offset |
| Rims | Roval Traverse 29, hookless alloy, 30mm width, hand-built, 2Bliss Ready |
| Front Hub | Specialized, sealed cartridge bearings, 15x110mm spacing, 28h |
| Rear Hub | DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h |
| Spokes | DT Swiss Competition Race |
| Front Tire | Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6" |
| Rear Tire | Eliminator, BLCK DMND Casing, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM Code R, 4-piston caliper, hydraulic disc, 200mm |
| Rear Brake | SRAM Code R, 4-piston caliper, hydraulic disc, 200mm |
| Stem | Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm |
| Handlebars | Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp |
| Grips | Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness |
| Saddle | Bridge 155 S2, Bridge 143 S3/S4/S5, Hollow cr-mo rails |
| Seatpost | Command Post IRcc, 16-position micro-height adjustable, two-bolt head, bottom mount cable routing, remote SRL lever, 34.9mm, S: 130mm, M/L/XL: 160mm of travel |
Size Guide: 2020 Specialized Levo Expert Carbon 29
