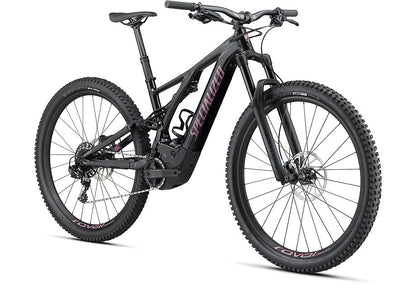

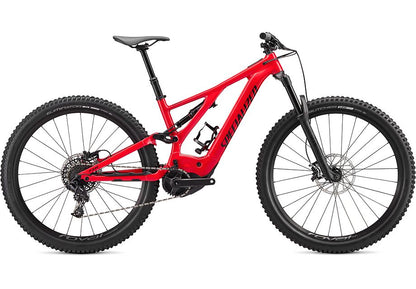

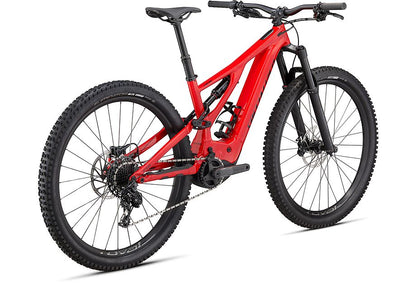

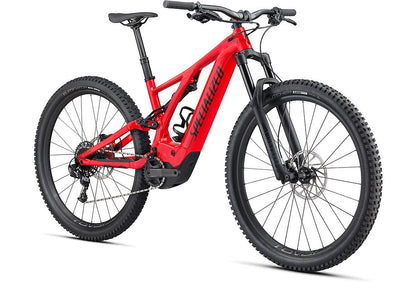

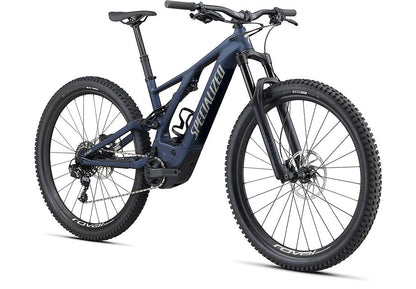

2020 Specialized Levo 29 Features
The new Turbo Levo brings the most advanced eMTB frame, motor and battery technology to as many riders as possible. We�ve taken our advanced M5 alloy chassis and the smoothest and most powerful motor on the market, and paired them with the most value-packed drivetrain, suspension and brake components available. The result is a bike that puts plenty of high-dollar eMTBs to shame.
ROWDY DESCENTS. STEEP CLIMBS? HELL. YES.
The Turbo Levo is a fully-fledged progressive trail bike. We�ve lengthened the reach, kept the chainstays nice and short, and maintained a low center of gravity. Next, we slackened the head angle for more confident descents and steepened the seat angle to improve climbing efficiency. It�s dialed.
MORE POWER, MORE RANGE
The Levo�s Specialized 2.1 motor amplifies your pedaling input by a mind blowing 410%. Our M2 batteries provides you with plenty of range. What�s more, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to. More power. More miles per ride. More awesome.
� M5 alloy Sidearm frame offers outstanding ride quality and control.
� Smoothest, most powerful motor on the market.
� 150mm of suspension front and rear, courtesy of RockShox.
Component Specifications
| Motor | Specialized 2.1, custom Rx Trail-tuned motor, 250W nominal |
| Battery | Specialized M2-500, integrated battery w/rock guard, 500Wh |
| Charger | Custom charger, 42V4A w/ Rosenberger plug |
| Frame | Specialized M5 Premium Aluminum, 29 Trail Geometry, integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel |
| Seat Binder | Specialized bolt-type, alloy, 38.6mm |
| Fork | RockShox 35 29, DebonAir spring, Motion Control damper, 51mm offset, 15x110mm thru-axle |
| Rear Shock | RockShox Deluxe Select w/ custom air valve, 52.5x210mm |
| Shift Levers | SRAM S700, single-click lever |
| Rear Derailleur | SRAM NX, 11-speed |
| Cassette | SRAM PG-1130, 11-speed, 11-42t |
| Chain | KMC X11ET, 11-speed w/ Missing Link™ |
| Crankset | Praxis forged M30, custom offset |
| Rims | Roval Traverse 29, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6" |
| Rear Tire | Eliminator, BLCK DMND Casing, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM Level T hydraulic disc, 4-Piston Caliper, 200mm |
| Rear Brake | SRAM Level T hydraulic disc, 2-Piston Caliper, 200mm |
| Stem | Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise |
| Handlebars | Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp |
| Grips | Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness |
| Saddle | Body Geometry Myth 155 S, Body Geometry Henge 143 M/L/XL, steel rails |
| Seatpost | TranzX dropper, 34.9mm, XS-S: 100mm, M: 120mm, L/XL: 150mm Travel |
Size Guide: 2020 Specialized Levo 29
