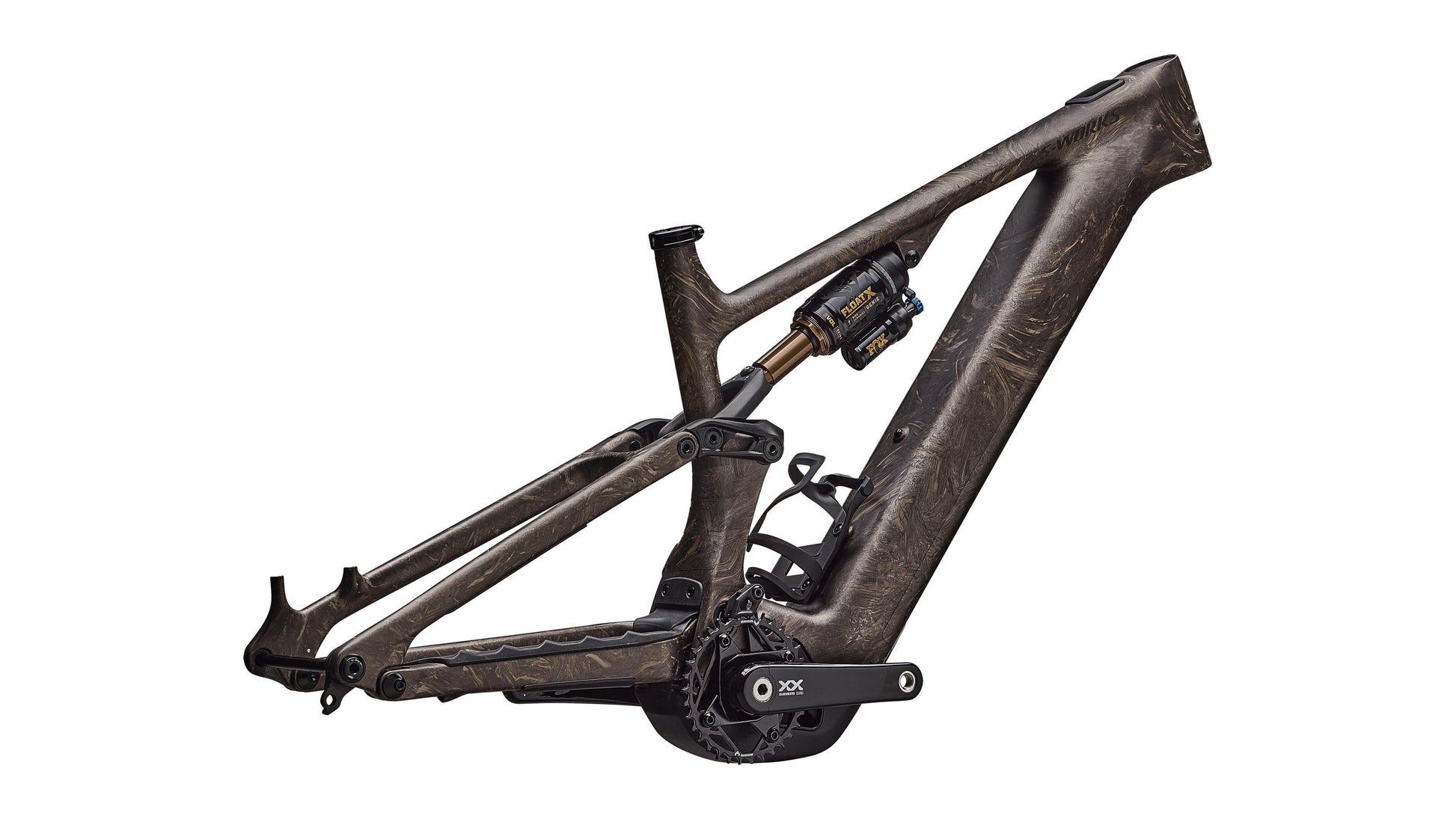

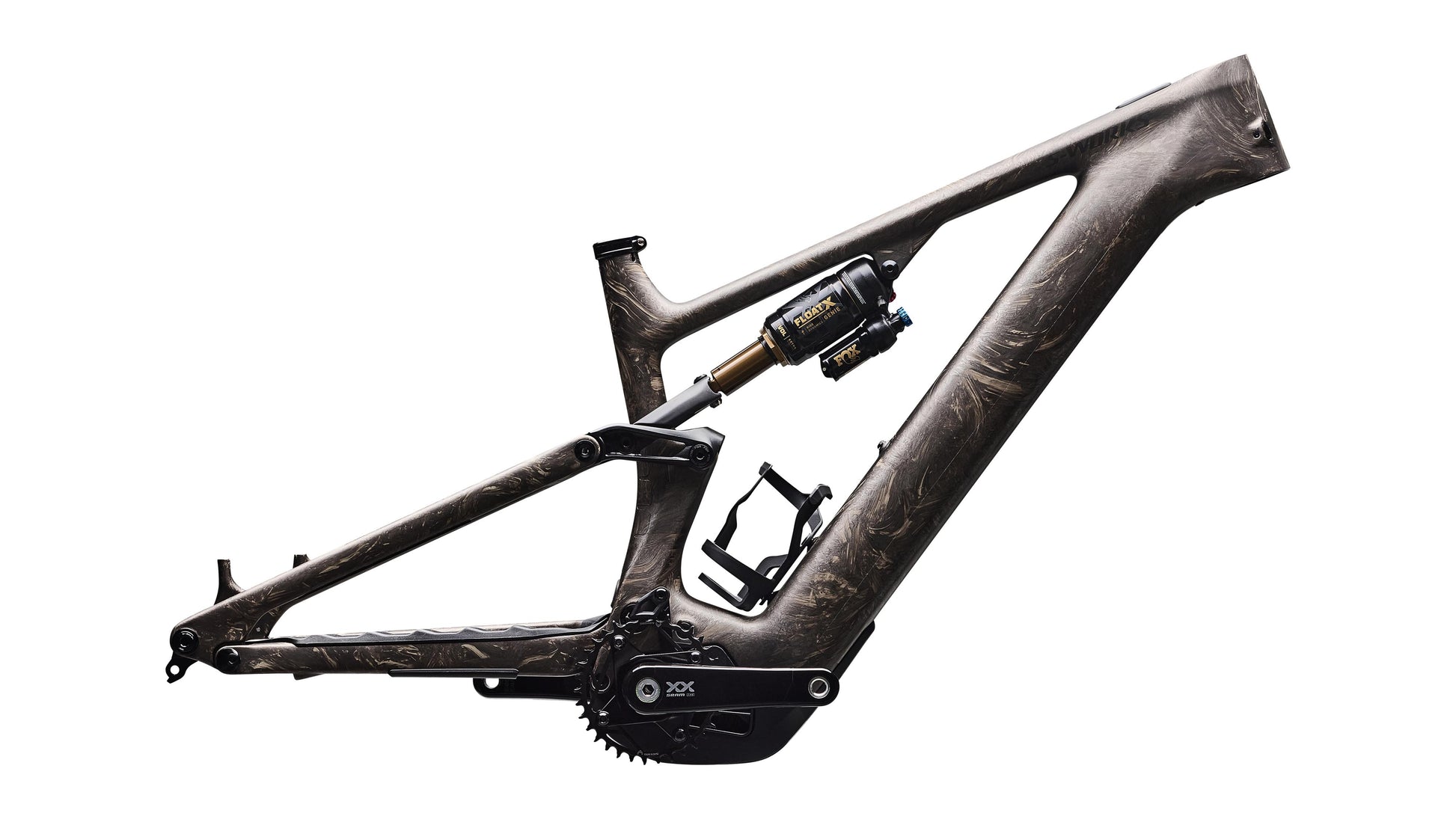

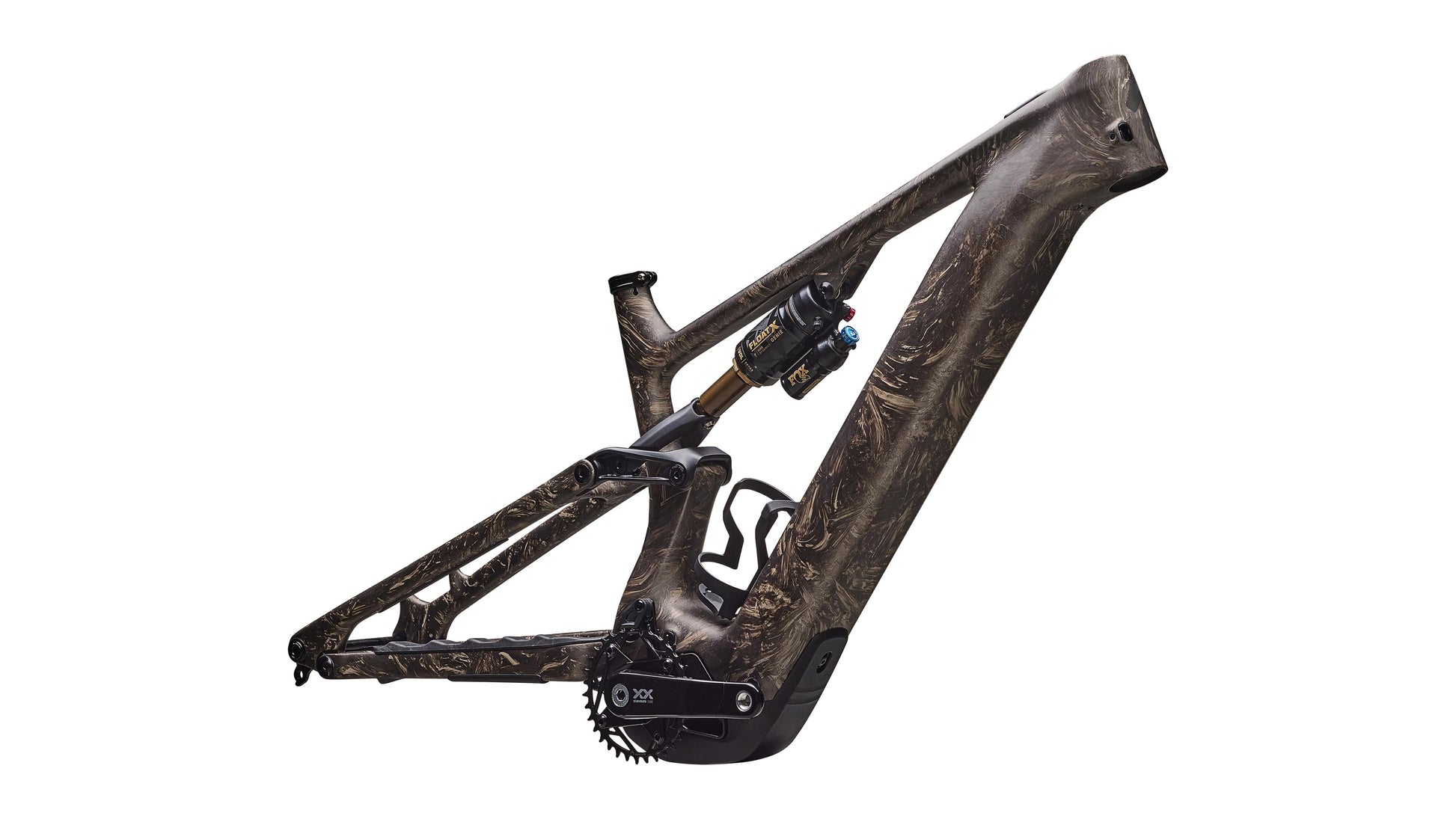

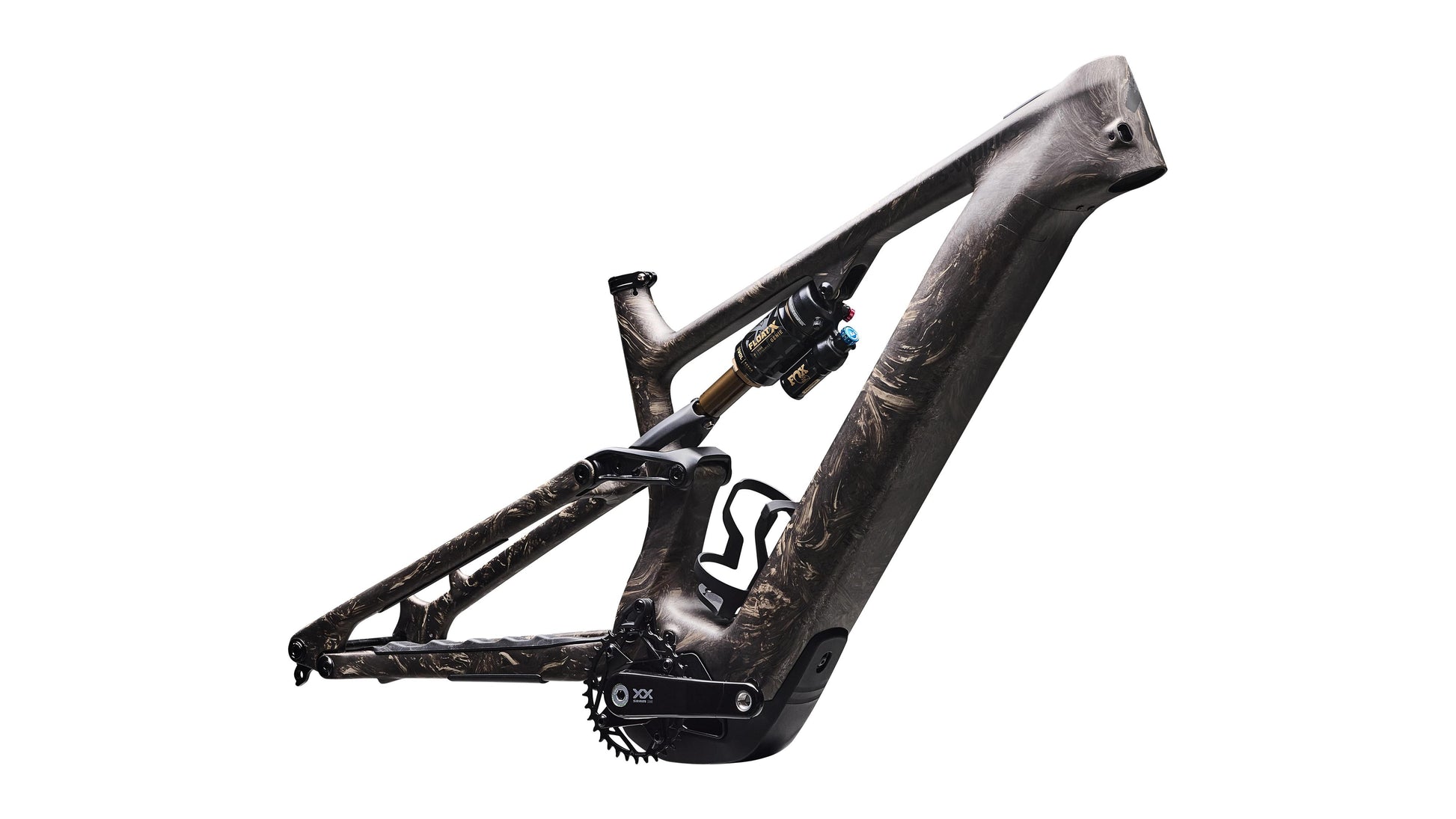

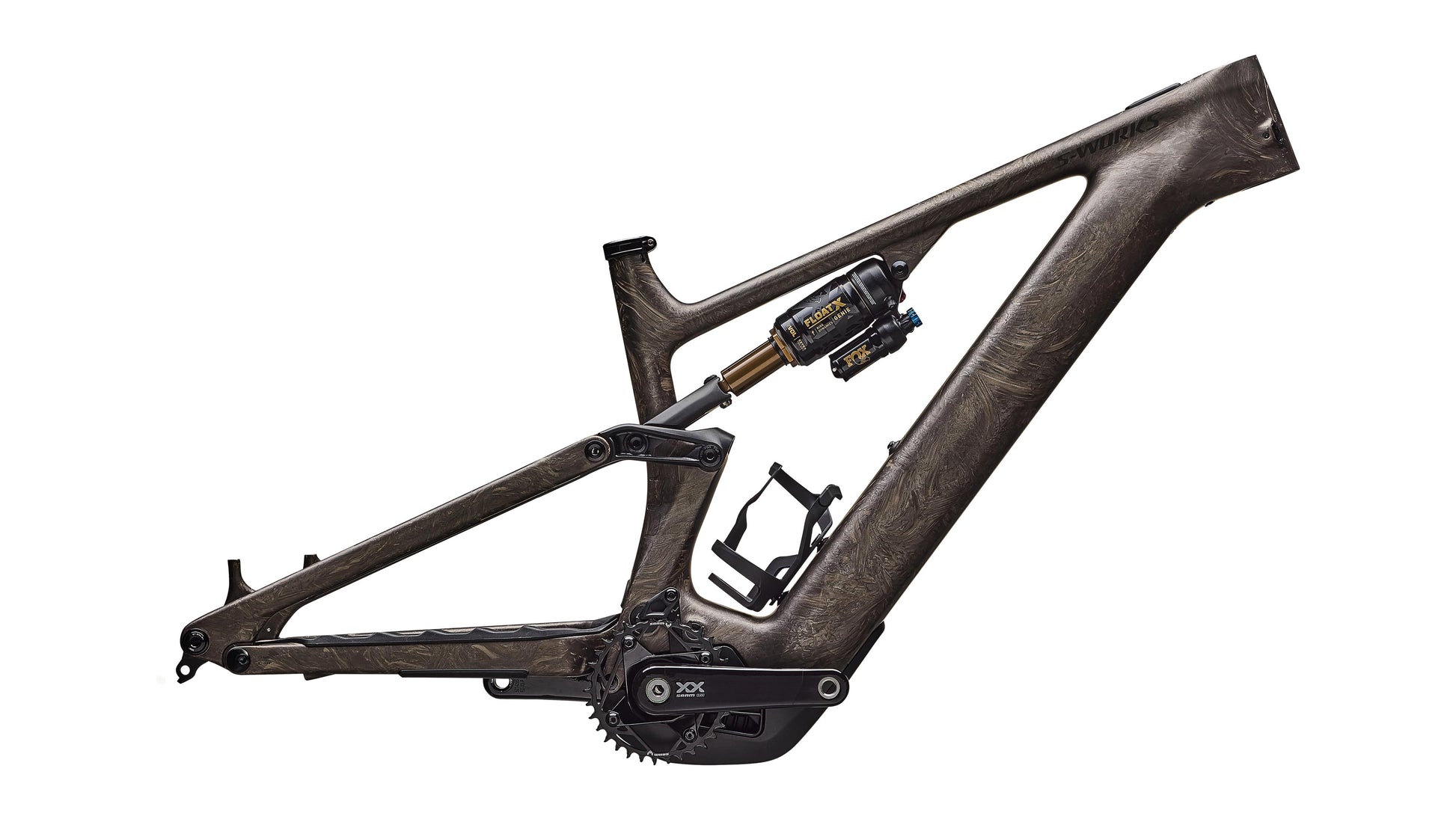

2026 Specialized S-Works Turbo Levo 4 Frameset Features
The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
At a Glance
- Use - Full Power E-MTB Trail.
- E-System - Class-Leading S-Works 3.1 Motor w/ 720 Watts & 111 Nm.
- Frame - FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage.
- Suspension - Rear: 150mm GENIE - FOX FLOAT X Factory.
- Range - Up to 4.75 hour range, configurable battery system.
Component Specifications
| Motor | All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power |
| Battery | 840wh battery |
| UI Remote | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app |
| Charger | Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80% |
| Frame | All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm |
| Seat Binder | Alloy, 38.6mm |
| Rear Shock | FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm |
| Crankset | SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm |
| Chain Rings | SRAM 34t T-Type chainring, 104 BCD, steel |
2026 Specialized S-Works Turbo Levo 4 Frameset
| Bike/Frame Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack | 618 mm | 626 mm | 638 mm | 652 mm | 667 mm |
| Reach | 435 mm | 455 mm | 480 mm | 505 mm | 535 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1200 mm | 1223 mm | 1254 mm | 1286 mm | 1323 mm |
| Top-tube Length (horizontal) | 578 mm | 599 mm | 627 mm | 655 mm | 689 mm |
| Bike Standover Height | 753 mm | 754 mm | 753 mm | 758 mm | 761 mm |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle | 690 mm | 735 mm | 780 mm | 825 mm | 870 mm |
| Max Seatpost Insertion | 274 mm | 289 mm | 313 mm | 337 mm | 357 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Headtube Length | 95 mm | 103 mm | 117 mm | 132 mm | 149 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| BB Drop | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Fork Length (full) | 577 mm | 577 mm | 577 mm | 577 mm | 577 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 765 mm | 789 mm | 820 mm | 851 mm | 888 mm |
Size Guide: 2026 Specialized S-Works Turbo Levo 4 Frameset
