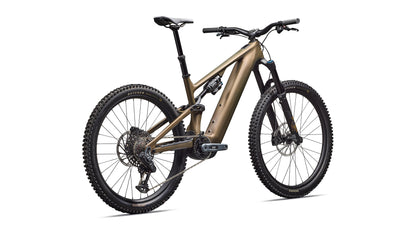

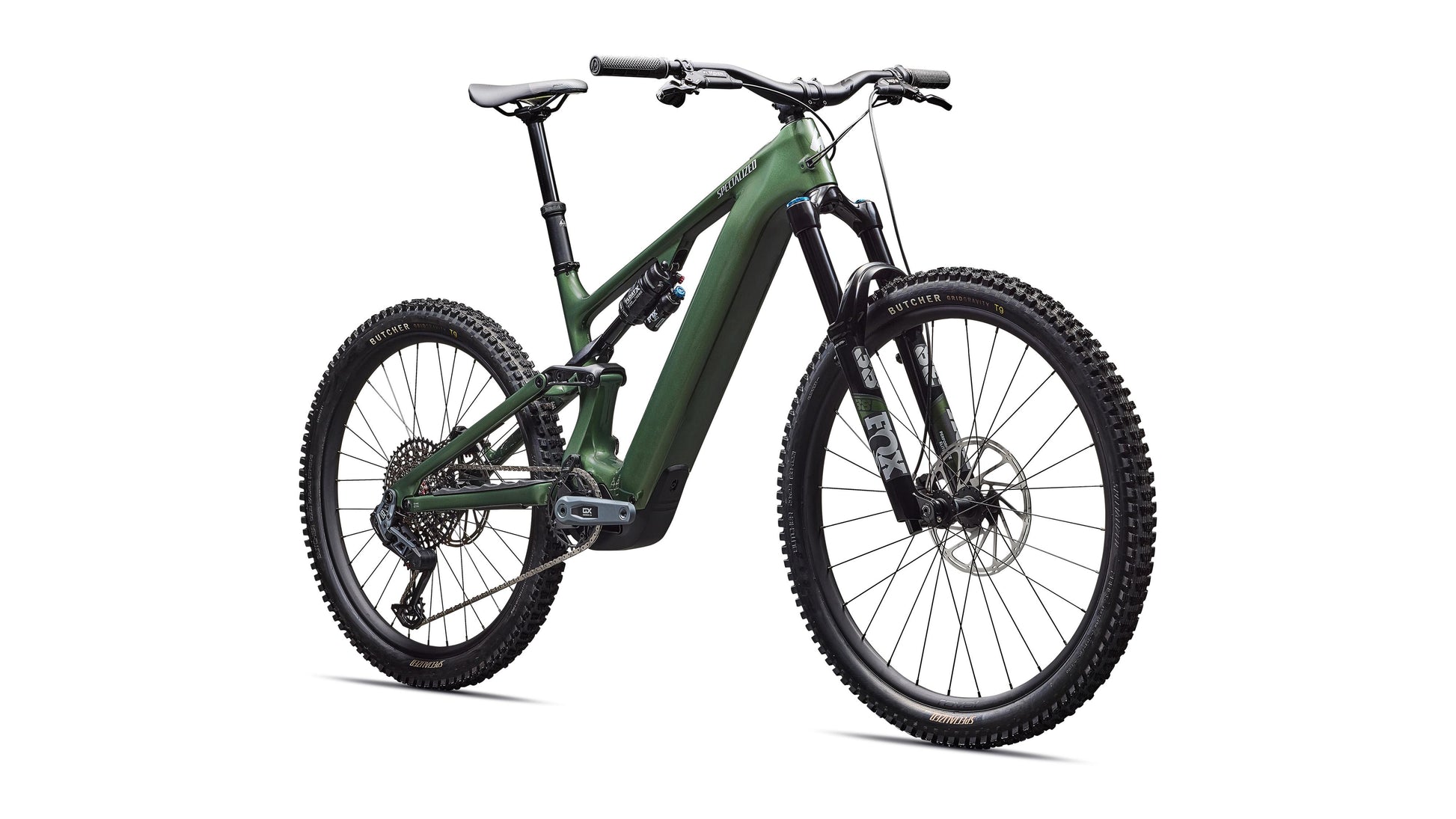

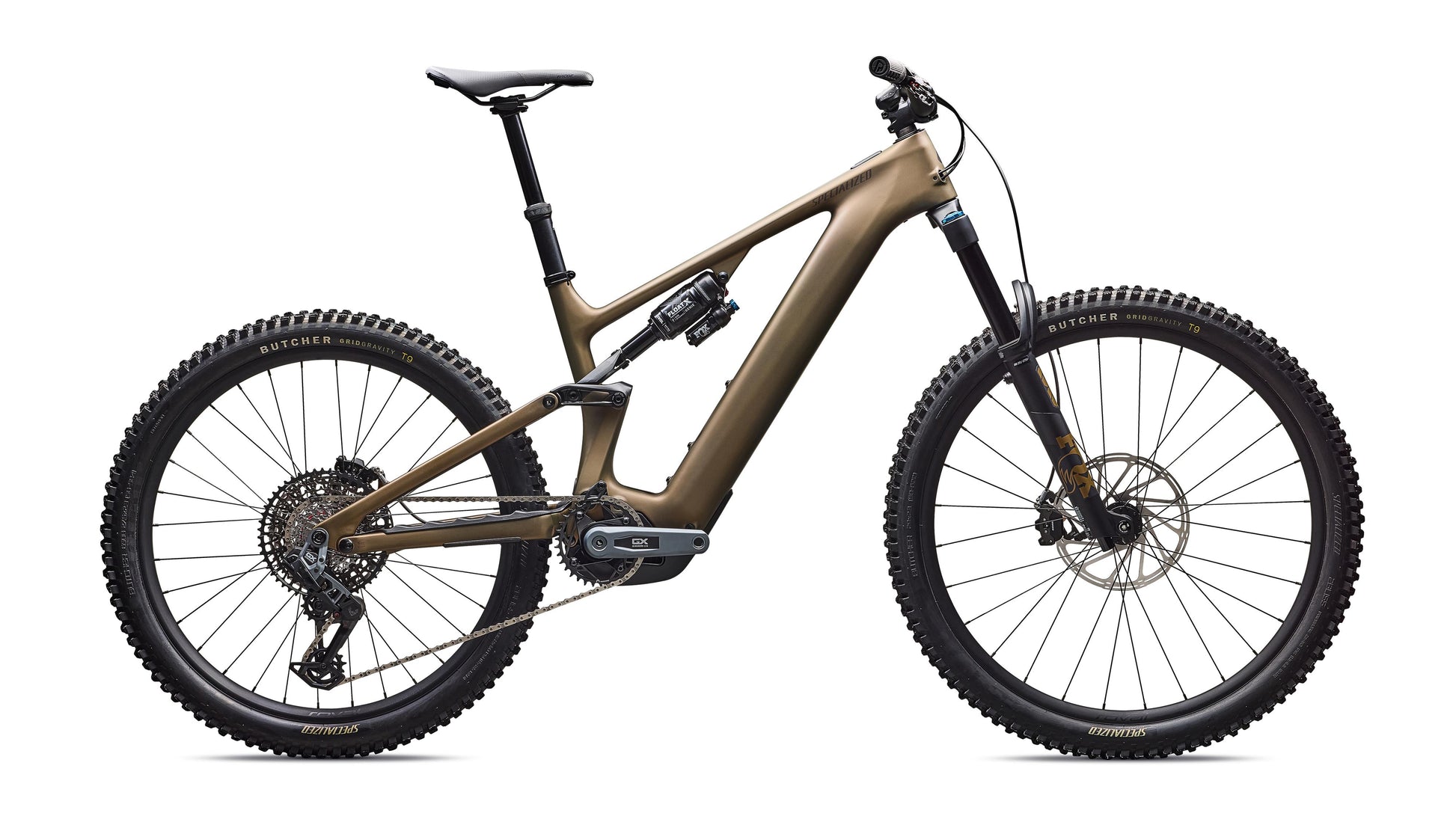

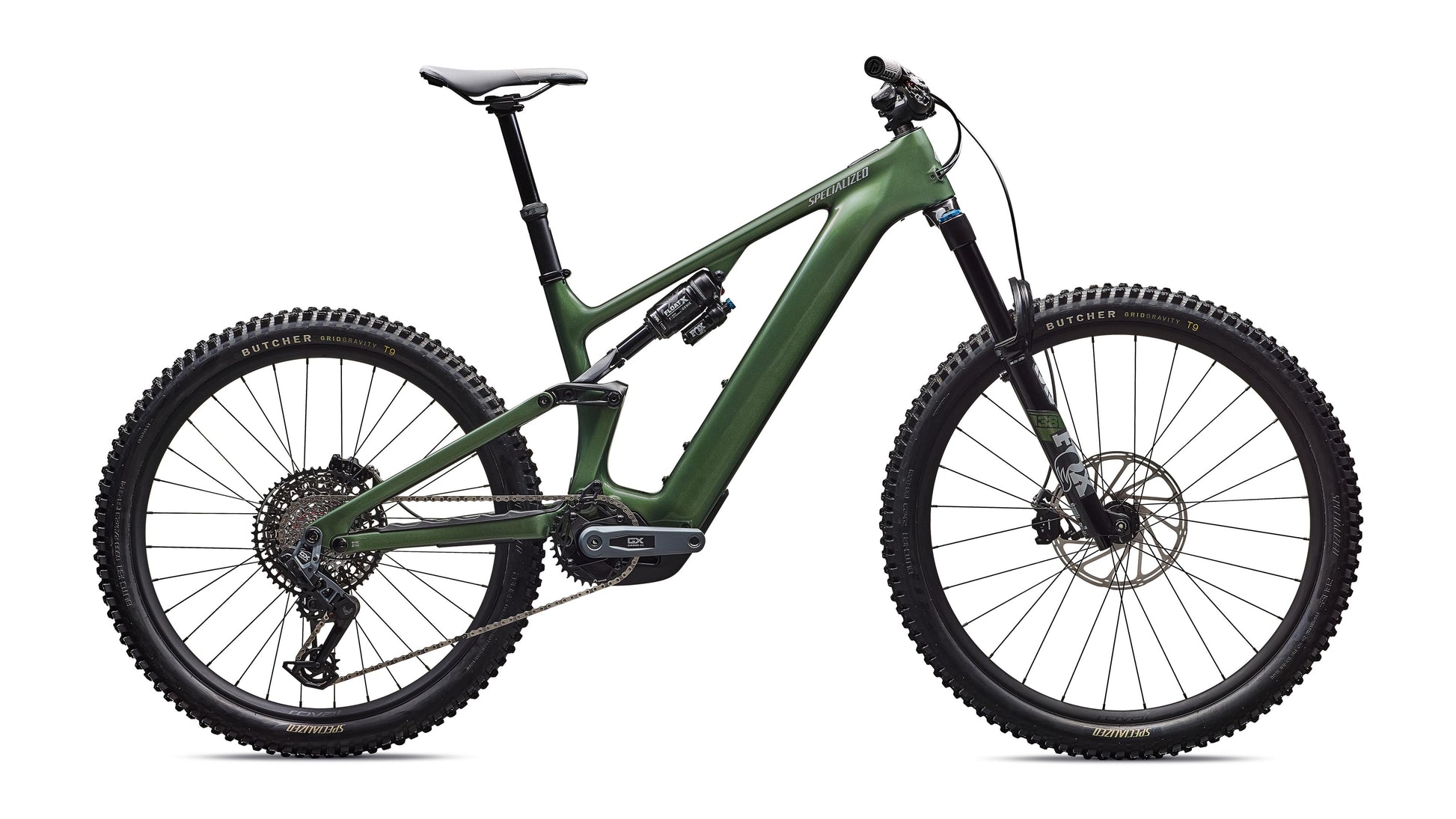

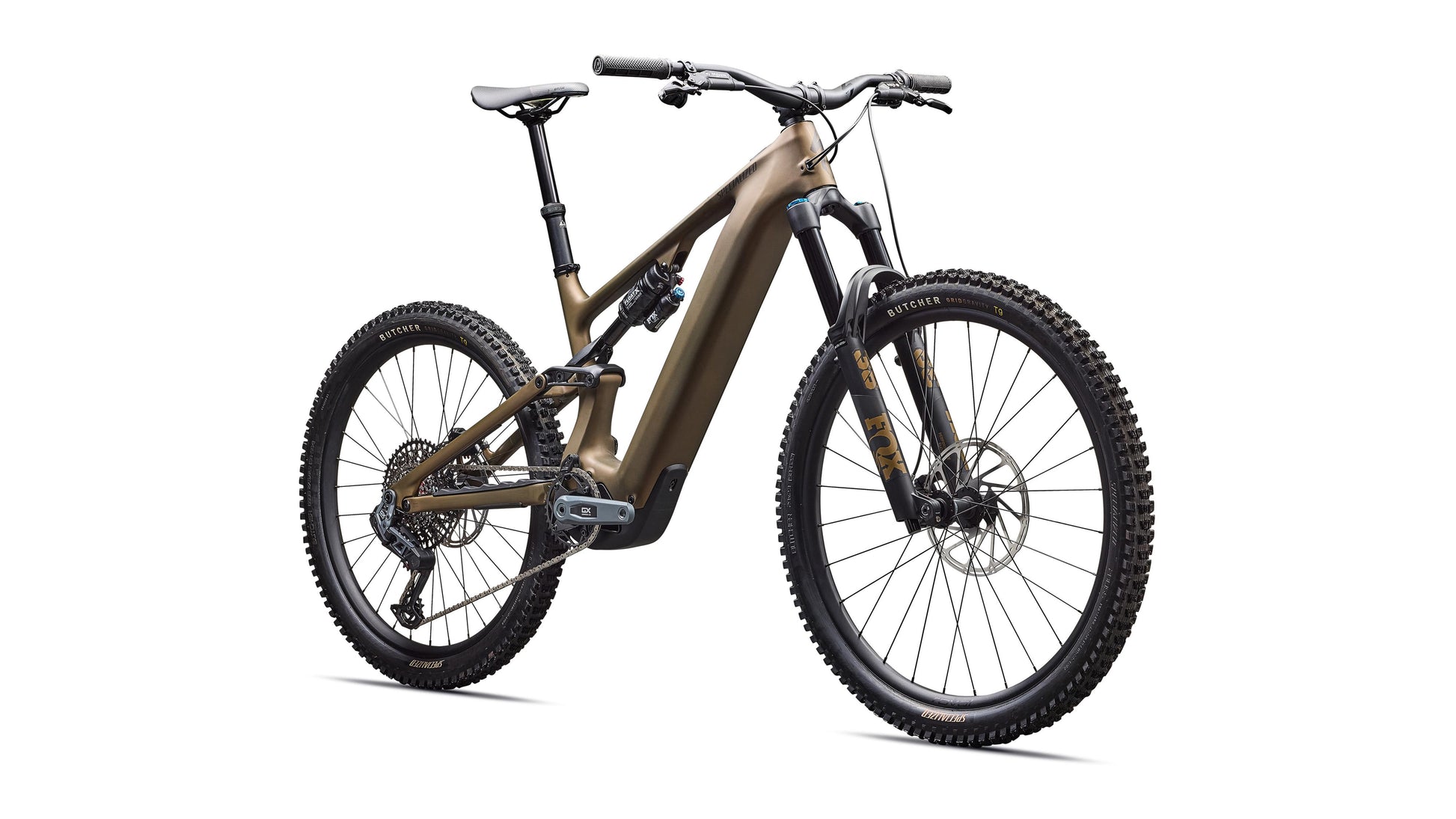

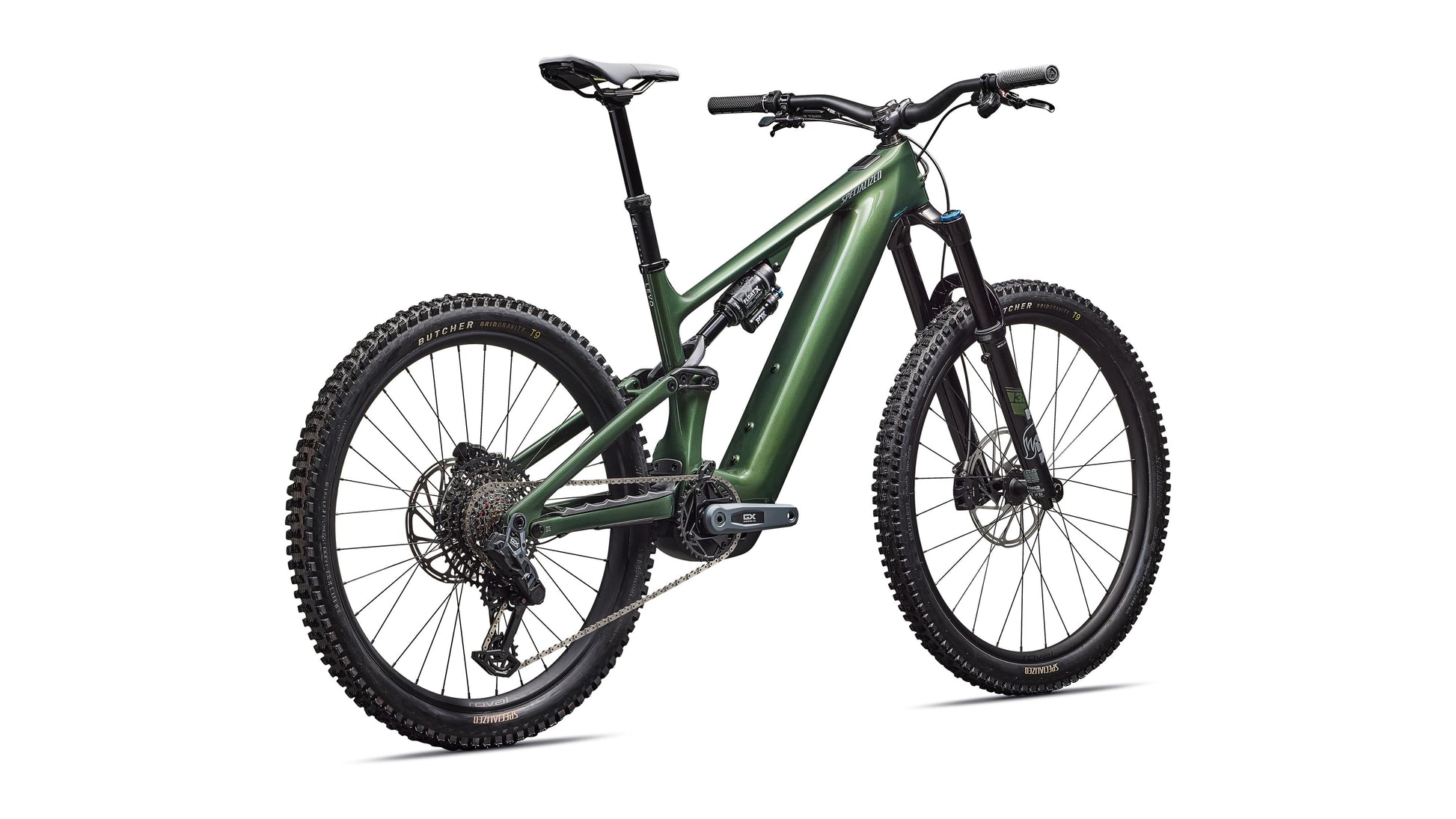

2026 Specialized Levo 4 Expert Carbon Features
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
At a Glance
- Use - Full Power E-MTB Trail
- E-System - Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to 5.33 hour range
- Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
- Suspension - Front: 160mm FOX 38 Performance Elite GRIPX2, Rear: 150mm GENIE - FOX FLOAT X Performance Elite
- Drivetrain - SRAM GX Eagle T-Type AXS
- Wheels - Roval Traverse Alloy / DT 370
Component Specifications

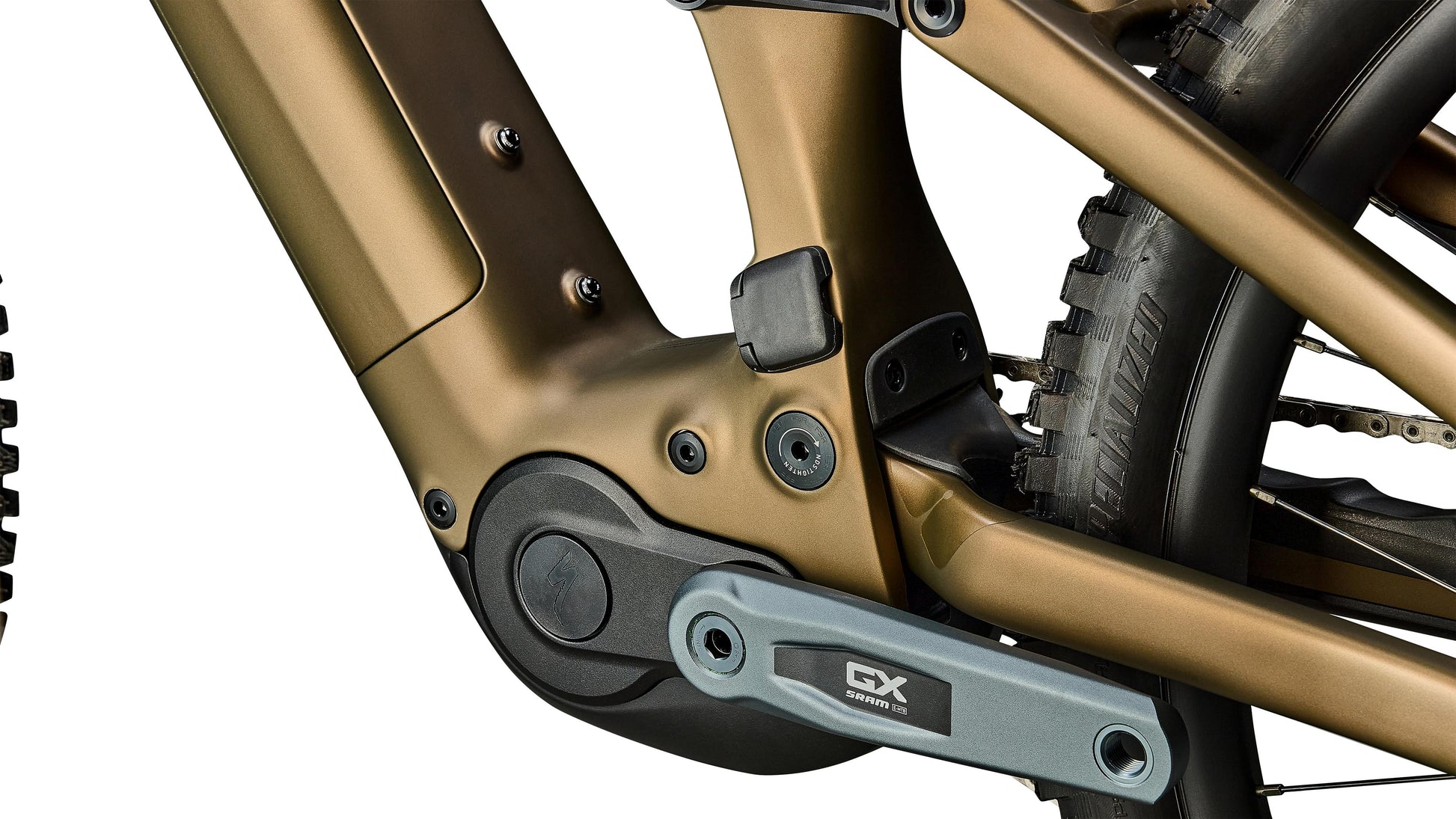

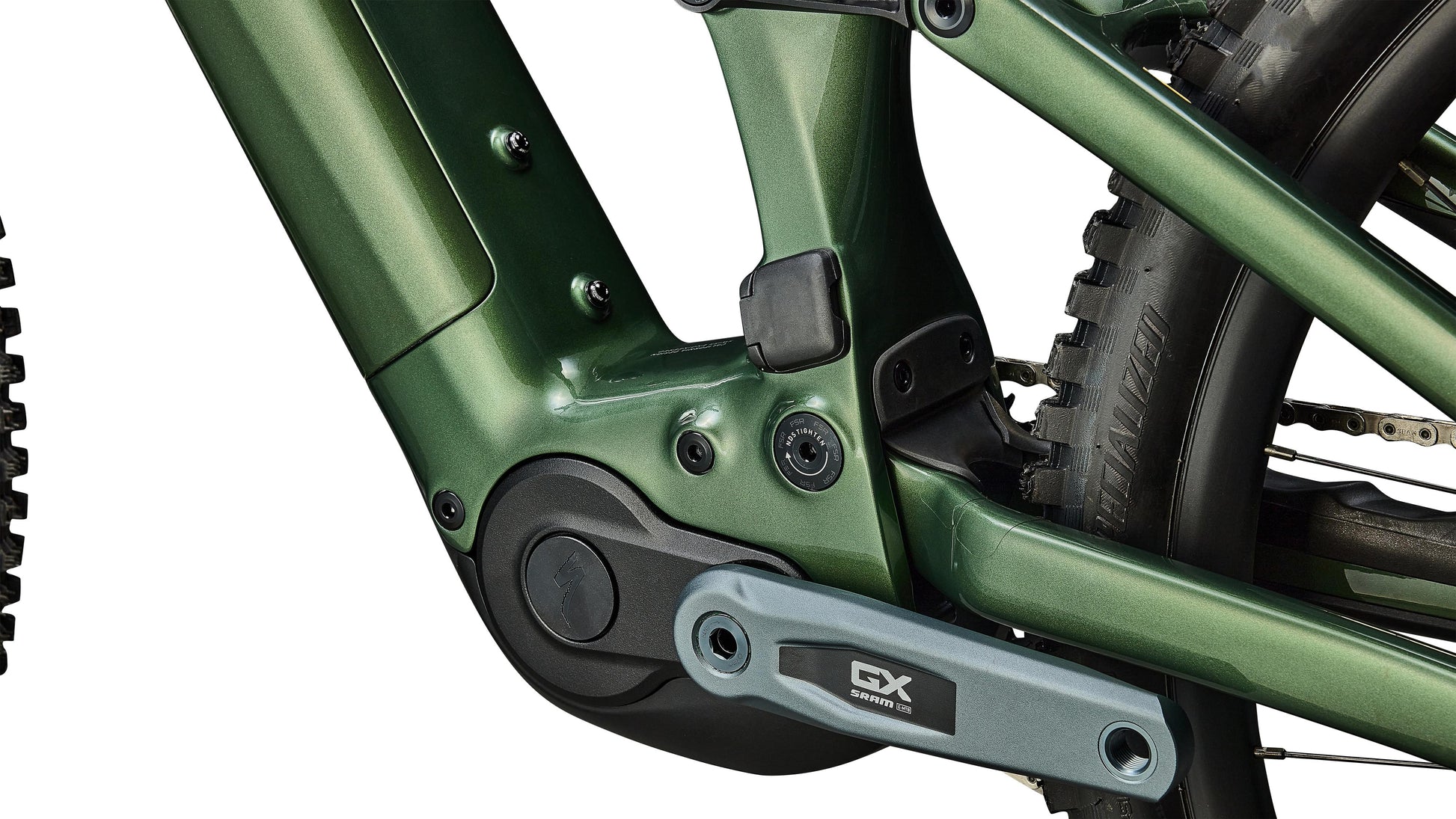

| Motor | All New Specialized 3.1 Motor, 101Nm torque, 666W power |
| Battery | 840Wh battery |

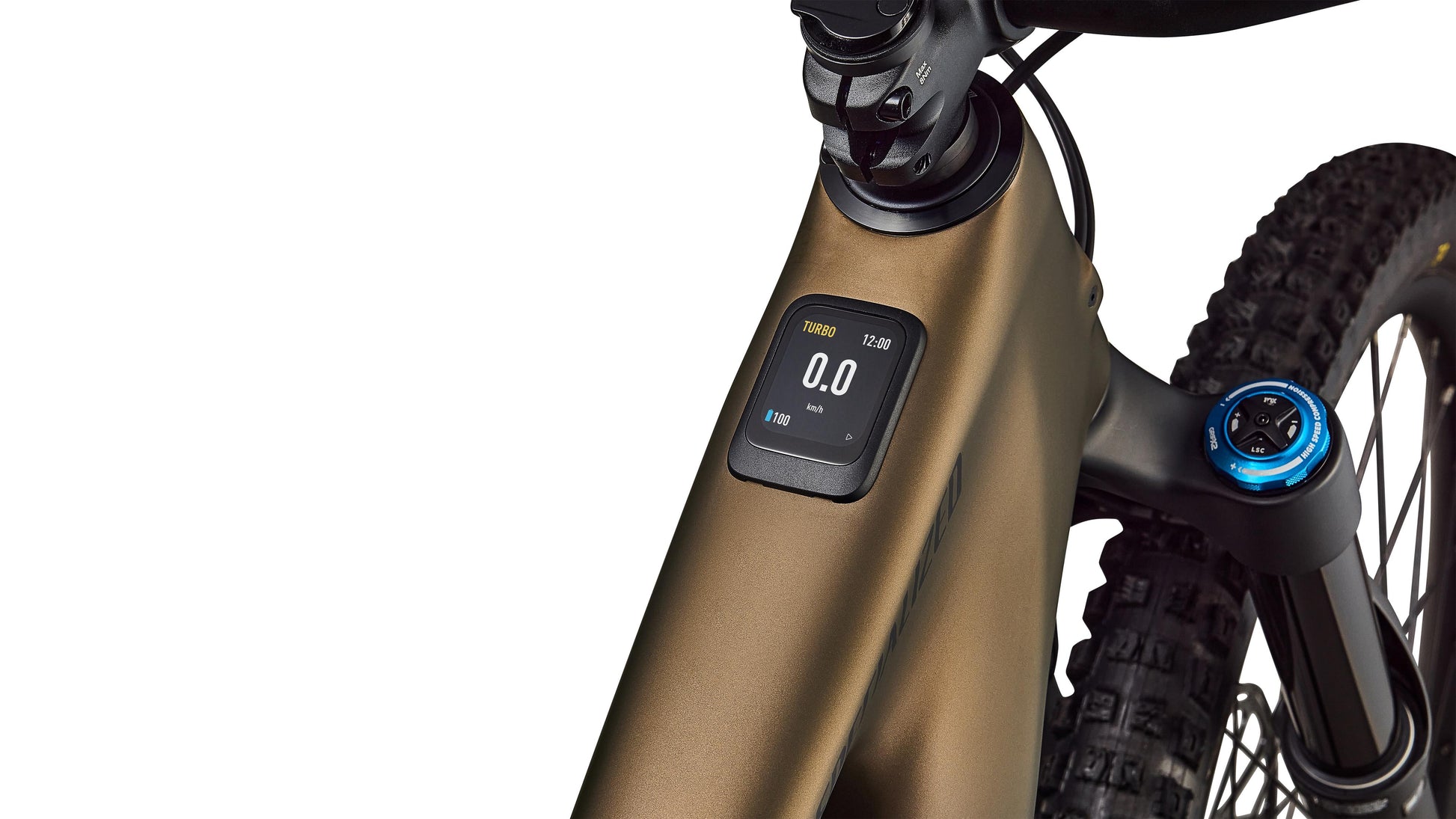

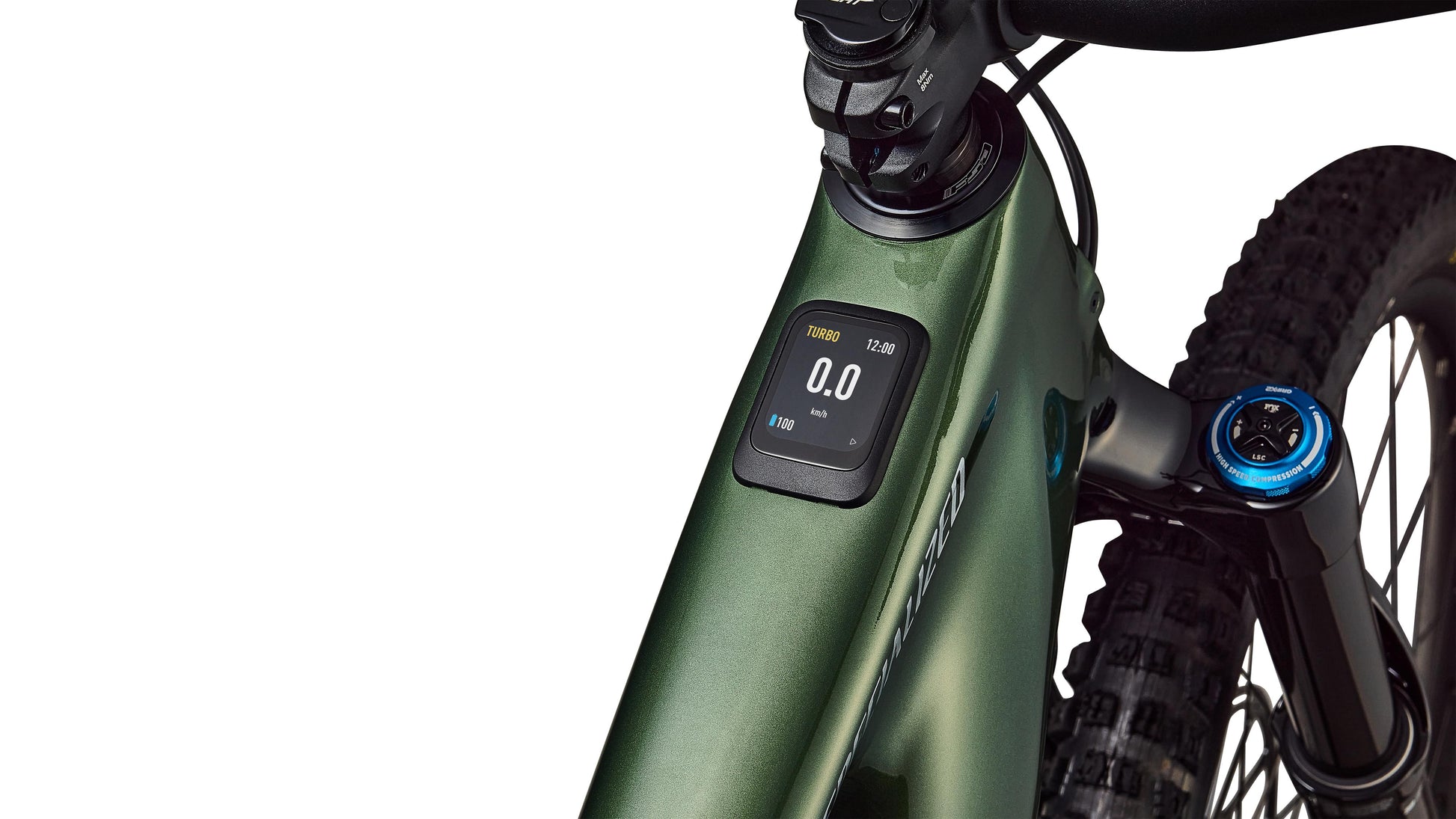

| UI Remote | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app |
| Charger | Specialized 4amp charger |
| Frame | All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX 38 Performance Elite series, 29", GRIP X2 damper,15x110mm axle, 44mm offset, 160mm of travel |

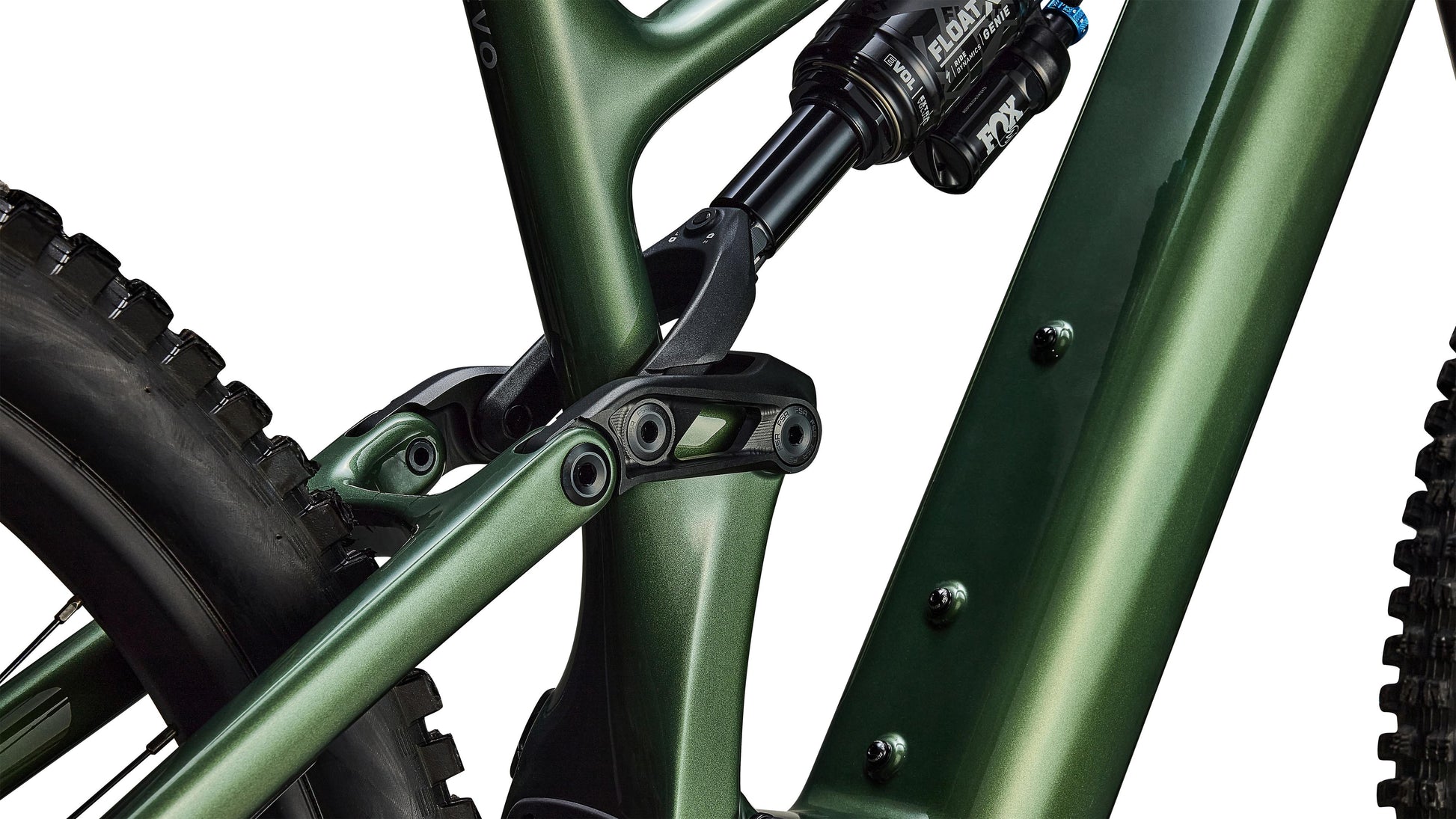

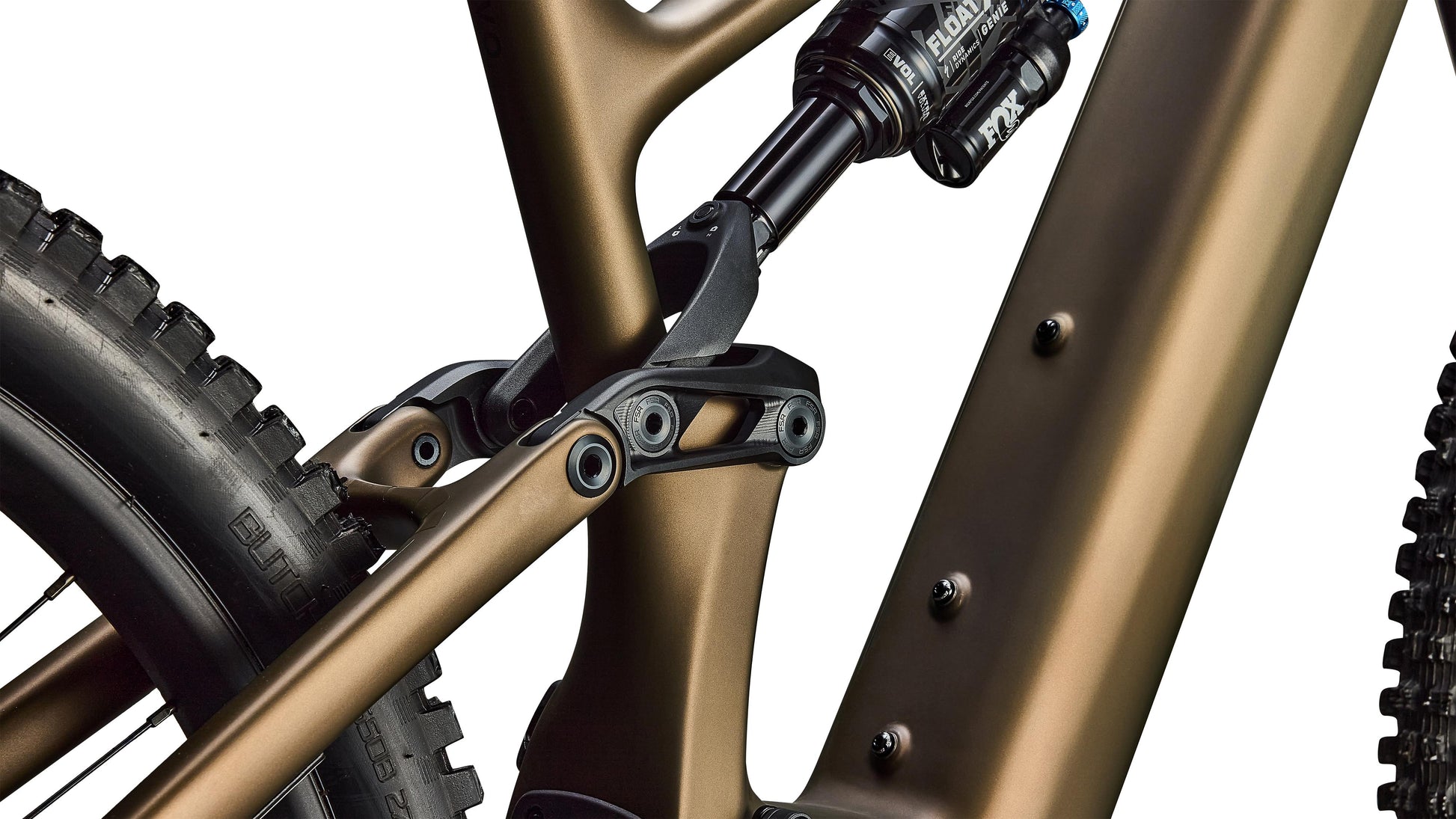

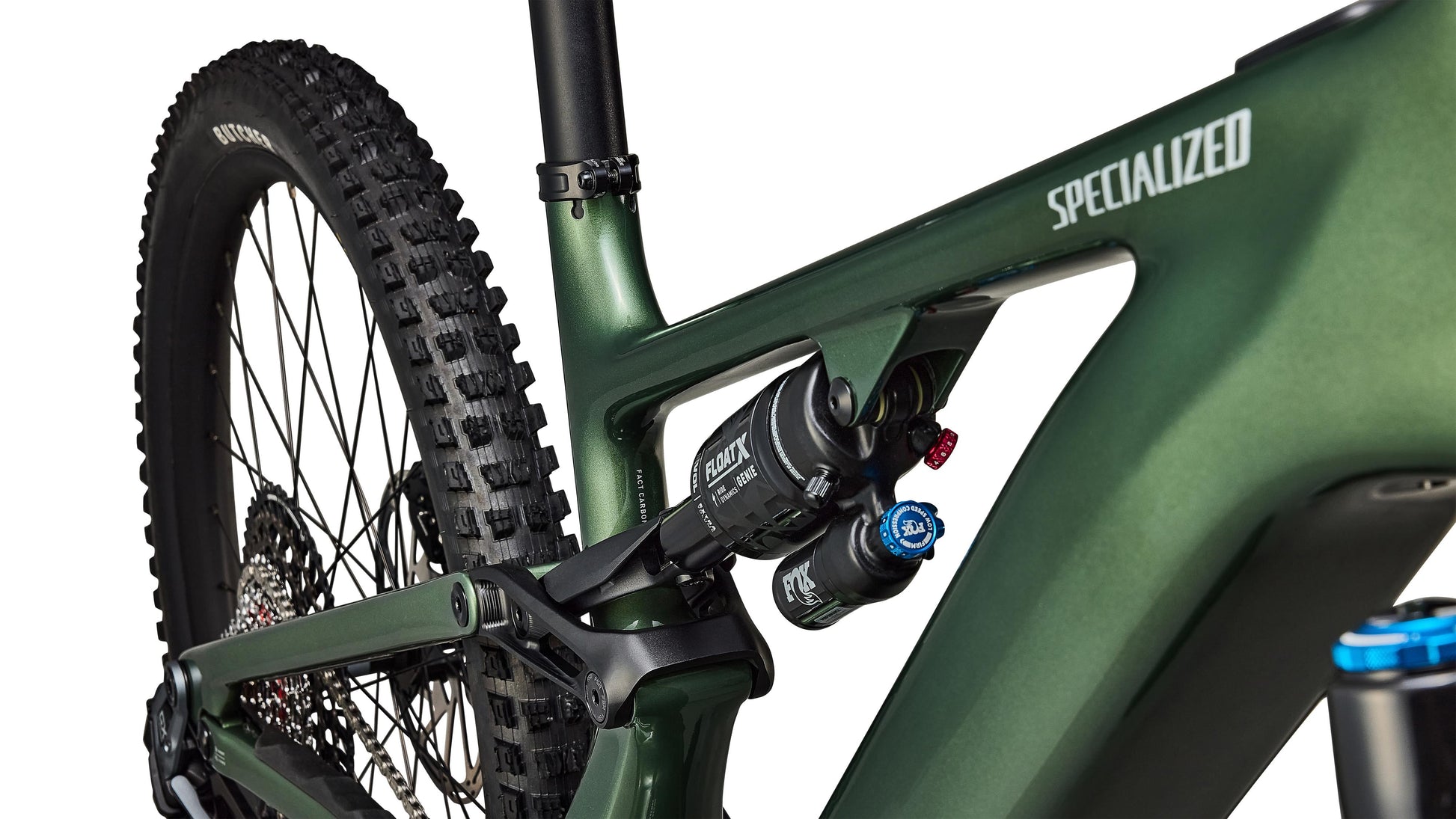

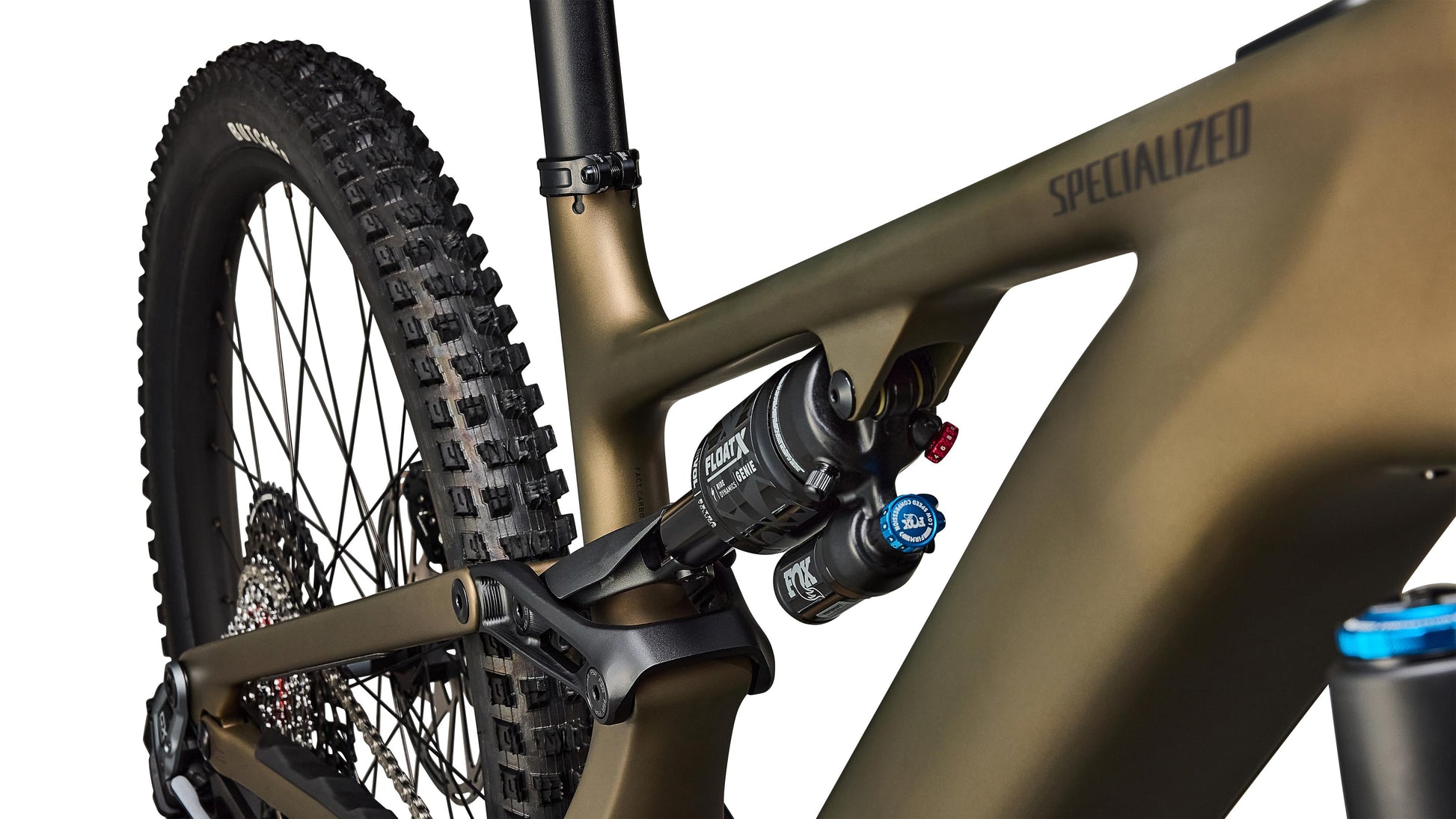

| Rear Shock | FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment |
| Shift Levers | SRAM AXS POD Controller |
| Rear Derailleur | SRAM GX Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery). |
| Cassette | SRAM GX Eagle Transmission Cassette, 12spd, 10-52t |
| Chain | SRAM GX Eagle Transmission Flattop Chain |
| Crankset | SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm |
| Chain Rings | SRAM 34t T-Type chainring, 104 BCD, steel |
| Front Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor |
| Rear Brake | SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor |
| Stem | Alloy Trail Stem, 35mm bar bore |

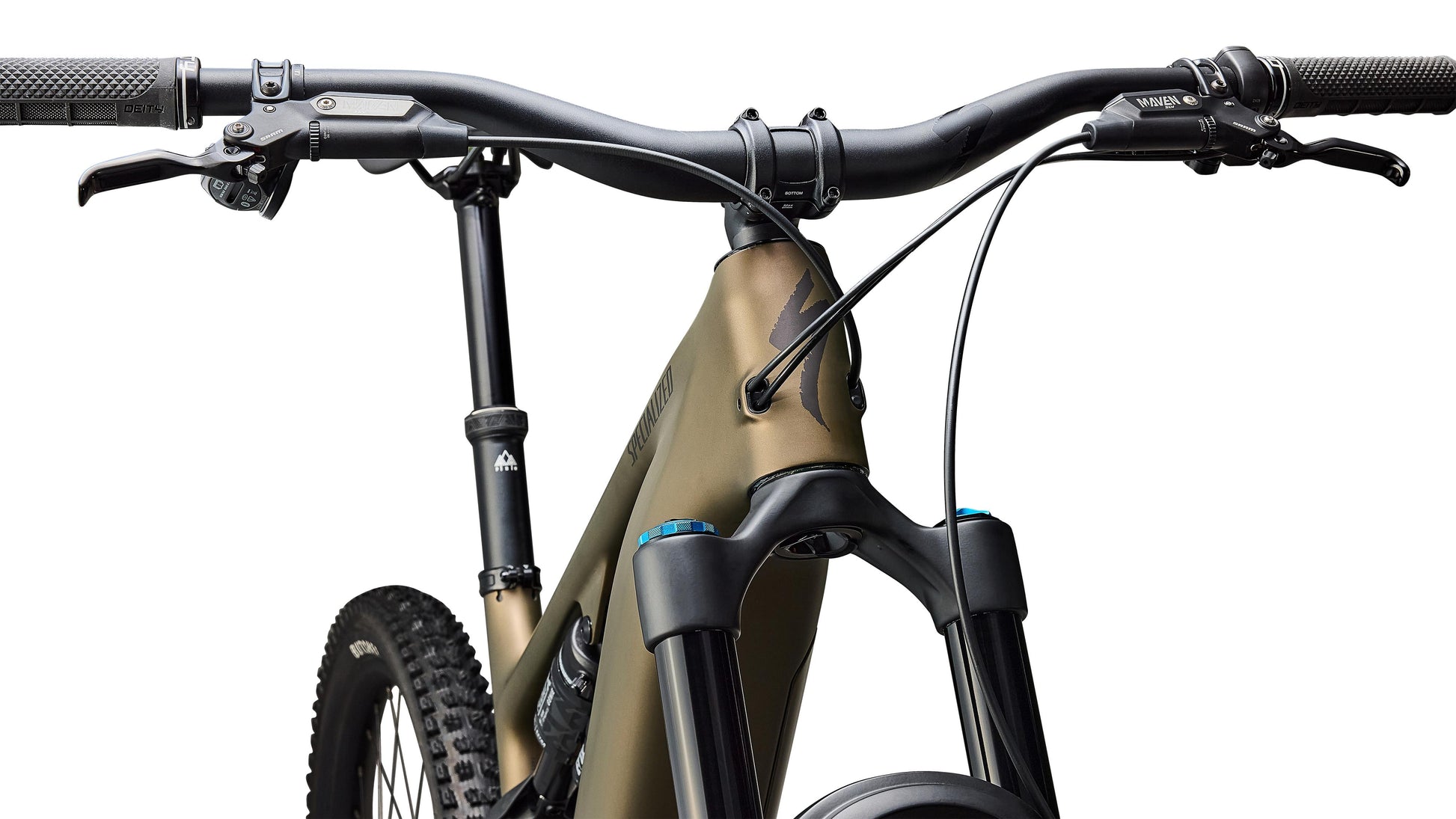

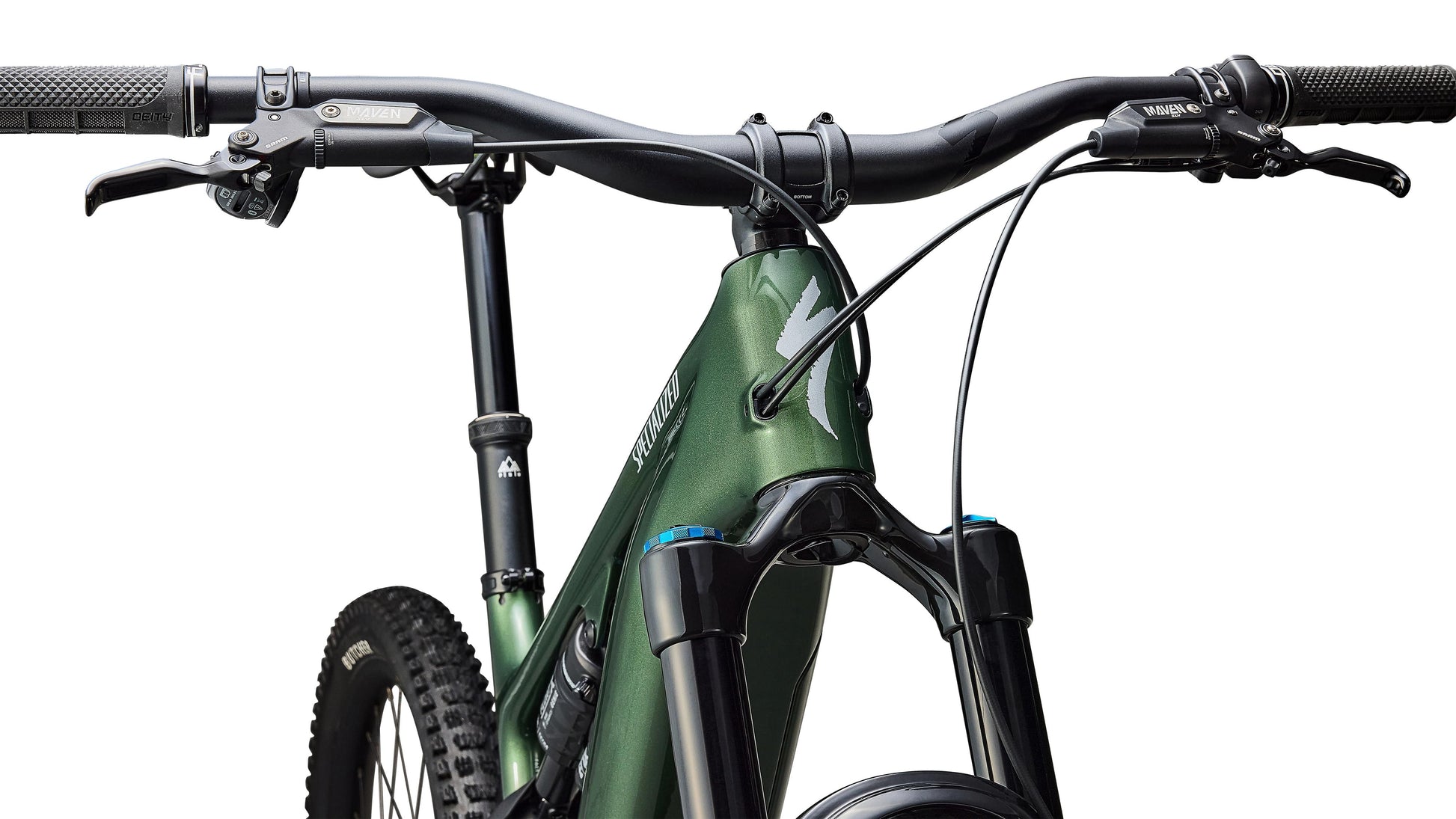

| Handlebars | Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise |
| Grips | Deity Lockjaw grips |
| Saddle | Bridge Comp, Hollow Cr-mo rails |
| Seatpost | PNW Loam post w/travel adjust S2: 125mm, S3: 170mm, S4/S5/S6: 200mm |
2026 Specialized Levo 4 Expert Carbon
| Bike/Frame Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack | 618 mm | 626 mm | 638 mm | 652 mm | 667 mm |
| Reach | 435 mm | 455 mm | 480 mm | 505 mm | 535 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1200 mm | 1223 mm | 1254 mm | 1286 mm | 1323 mm |
| Top-tube Length (horizontal) | 578 mm | 599 mm | 627 mm | 655 mm | 689 mm |
| Bike Standover Height | 753 mm | 754 mm | 753 mm | 758 mm | 761 mm |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle | 690 mm | 735 mm | 780 mm | 825 mm | 870 mm |
| Max Seatpost Insertion | 274 mm | 289 mm | 313 mm | 337 mm | 357 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Headtube Length | 95 mm | 103 mm | 117 mm | 132 mm | 149 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| BB Drop | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Fork Length (full) | 577 mm | 577 mm | 577 mm | 577 mm | 577 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 765 mm | 789 mm | 820 mm | 851 mm | 888 mm |
Size Guide: 2026 Specialized Levo 4 Expert Carbon
